CHAPTER 16 599

16.78.

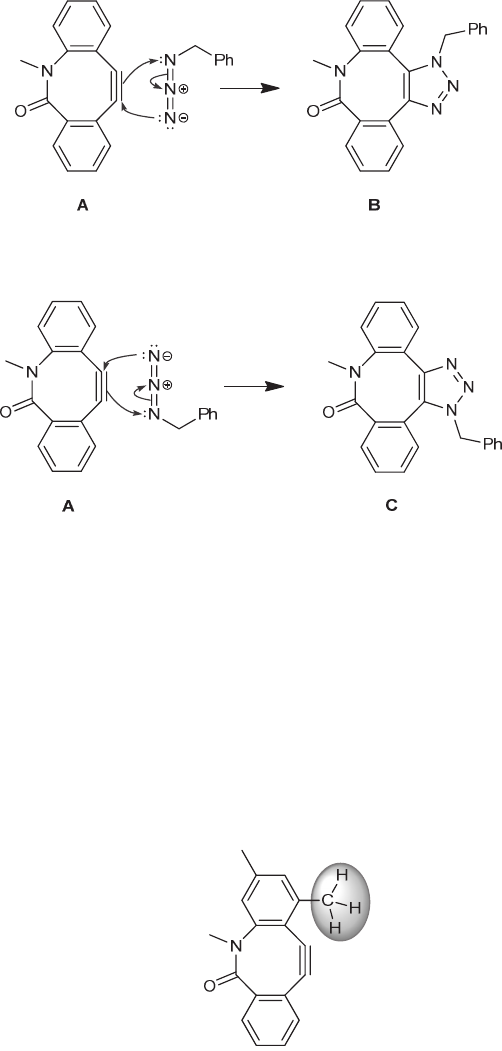

(a) The reaction is a cycloaddition process, so we expect a concerted process. The following curved arrows represent a
concerted process that would give the product:



(b) Depending on the relative orientation of the azide and alkyne during the reaction, the following compound can also
be formed.



(c) Recall from Chapter 9 that the smallest isolatable cycloalkyne is cyclooctyne, which experiences significant angle
strain due to the incorporation of the two adjacent sp hybridized carbon atoms (that should have linear geometry) into
an 8-membered ring. As such, compound A has significant angle strain. We can infer that this strain plays an important
role in the click reaction, because alkyne D (which is free of this strain) is unreactive under these conditions. This
angle strain increases the energy of the starting alkyne, thus decreasing the activation energy of the reaction (since it is
now closer in energy to the transition state). Considering the geometry of the atoms involved in the reaction, the angle
strain forces the alkyne to have bond angles closer to the angles required in the transition state leading to the sp2
hybridized carbon atoms in the product. In other words, there is a higher activation energy associated with distorting an
unstrained alkyne (180°) to an alkene (120°), compared to the analogous conversion of a strained alkyne (
