CHAPTER 21 889

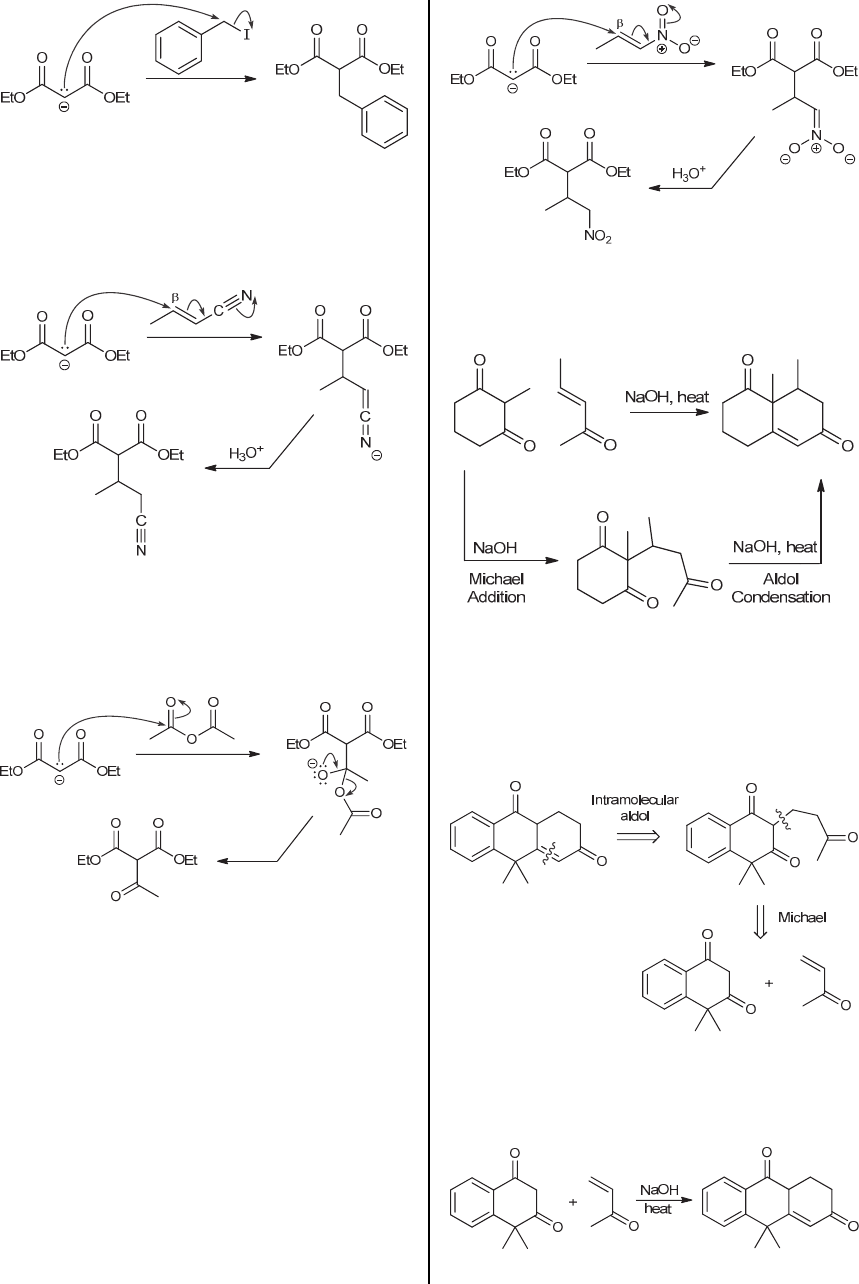

(f) The conjugate base of diethyl malonate functions as a
nucleophile and attacks the  position of the -
unsaturated nitrile. The resulting intermediate is
converted back into a nitrile upon acid work-up, giving
the following product:



(g) The conjugate base of diethyl malonate functions as
a nucleophile and attacks the acid anhydride to give a
tetrahedral intermediate, which expels an acetate ion to
reform a carbonyl group (via a nucleophilic acyl
substitution reaction):



This compound is deprotonated under these conditions
(by the acetate ion, which can function as a base), which
serves as a driving forced to push the reaction to
completion. Then, acid workup gives the proton back,
regenerating the product shown above.

(h) The conjugate base of diethyl malonate functions as
a nucleophile and attacks the  position of the -
unsaturated nitro compound. The resulting intermediate
is converted back into a nitro compound upon acid work-
up, giving the following product:



21.85. A Robinson annulation is comprised of a Michael
addition, followed by an intramolecular aldol
condensation, as shown:



21.86. A Robinson annulation is comprised of a
Michael reaction, followed by an intramolecular aldol
condensation. To determine the starting materials
necessary to prepare the desired product via a Robinson
annulation, we draw the following retrosynthetic
analysis:


These two steps do not represent two separate reactions.
A Robinson annulation can be performed in one reaction
flask, as shown in the following forward scheme:
