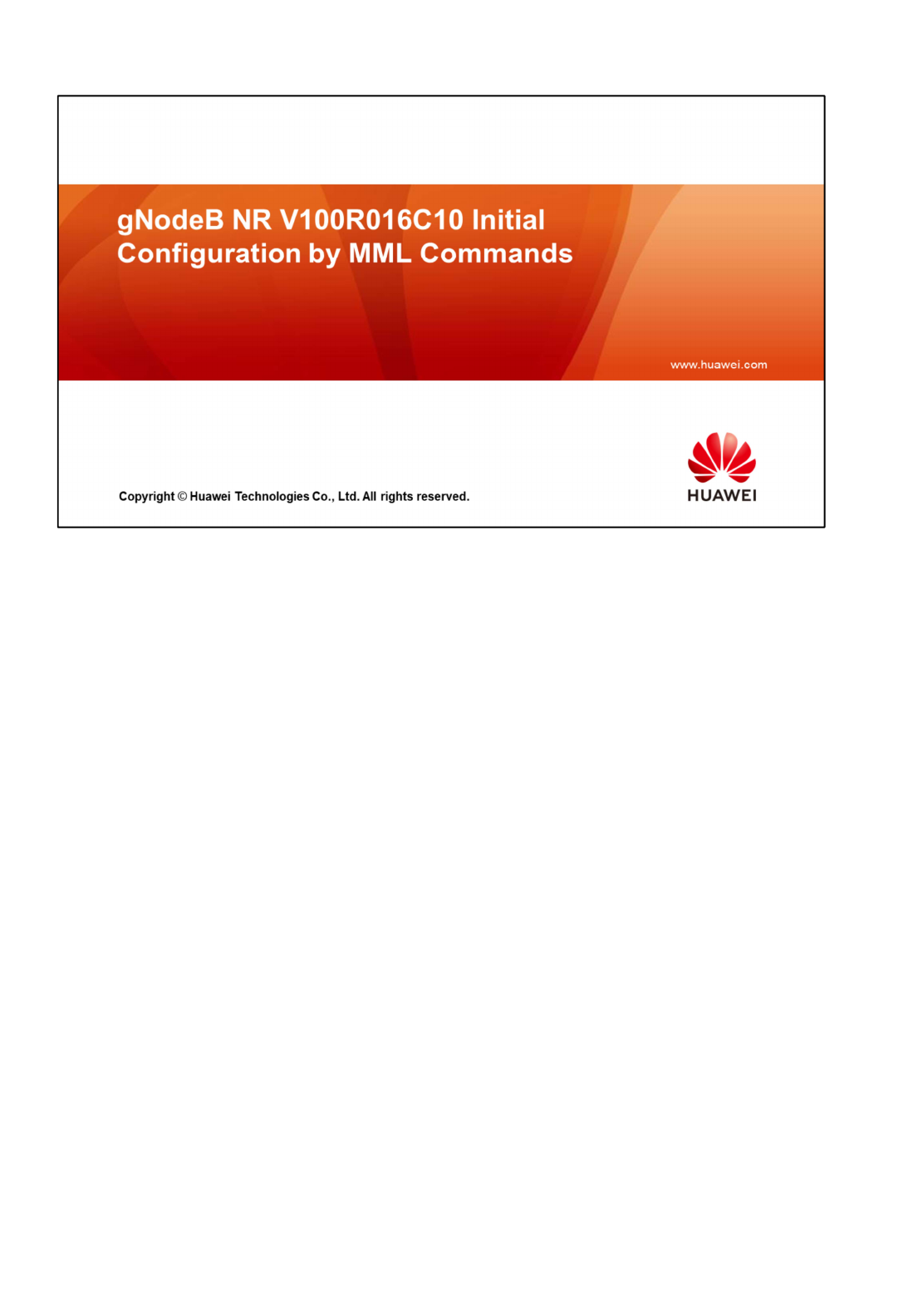

gNodeB NR V100R016C10 Initial Configuration by MML Commands Brazil

Prévia do material em texto

Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
 Bill of Quantity (BOQ): Based on the site delivery configuration list, you can obtain the site
type configuration requirements and device list.
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GNODEBFUNCTION: gNodeBFunctionName="5G", ReferencedApplicationId=1,
gNBId=1, gNBIdLength=22;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET NE: NENAME="HUAWEI", LOCATION="NewSite", DID="NewSite12345",
SITENAME="NewSite1", USERLABEL="NewInitSite";
 Currently, 5G main control boards can only be UMPTe and UMPTg, and 5G baseband
processing units (BBPs) can only be UBBPfw1 and UBBPg.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GNBOPERATOR: OperatorId=0, OperatorName="5G", Mcc="262", Mnc="05",
OperatorType=PRIMARY_OPERATOR, NrNetworkingOption=SA_NSA;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GNBTRACKINGAREA: TrackingAreaId=0, Tac=1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET MNTMODE: MNTMode=INSTALL, ST=2013&09&20&15&00&00,
ET=2013&09&25&15&00&00, MMSetRemark="NewSite Install";
 The maintenance mode can be set to NORMAL, INSTALL, EXPAND, UPGRADE, or
TESTING.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
 Note:
 If the BBP is a UBBPfw1, set Work Mode to NR when adding a BBP. For a full-width
UBBPfw1, Slot No. must be set to 0, 2, or 4.
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD CABINET: CN=0, TYPE=BTS5900;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SUBRACK: CN=0, SRN=0, TYPE=BBU5900;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD BRD: SN=6, BT=UMPT;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD BRD: SN=0, BT=UBBP, BBWS=NR-1, BRDSPEC="UBBPg";
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD BRD: SN=16, BT=FAN;
 ADD BRD: SN=19, BT=UPEU;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD RRUCHAIN: RCN=3, TT=CHAIN, BM=COLD, AT=LOCALPORT, HSRN=0, HSN=0,
HPN=2, PROTOCOL=eCPRI, CR=AUTO, USERDEFRATENEGOSW=OFF;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD RRU: CN=0, SRN=61, SN=0, TP=TRUNK, RCN=3, PS=0, RT=AIRU, RS=NO,
RXNUM=0, TXNUM=0, MNTMODE=NORMAL, RFDCPWROFFALMDETECTSW=OFF,
RFTXSIGNDETECTSW=OFF;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET TZ: ZONET=GMT+0800, DST=NO;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET TIMESRC: TIMESRC=NTP;
 ADD NTPC: MODE=IPV4, IP="10.160.201.175", PORT=123, SYNCCYCLE=60,
AUTHMODE=PLAIN;
 SET MASTERNTPS: MODE=IPV4, IP="10.160.201.175";
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GPS: SRN=0, SN=7;
 Priority: Indicates the priority of the clock source (value range: 1-4). The value 1 indicates
the current clock source has the highest priority.
 Cable Length: indicates the length of the GPS cable. The actual cable length is the length
of the feeder between the GPS antenna and the board connected to the GPS. Based on
the cable length, the cable delay is calculated to ensure the clock accuracy. The clock
accuracy is affected if the difference between the parameter value and the actual cable
length is greater than 20 m.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD IPCLKLINK: LN=0, ICPT=PTP, SN=7, CNM=UNICAST, IPMODE=IPV4,
CIP="192.168.1.107", SIP="192.168.1.128", DELAYTYPE=E2E, PROFILETYPE=1588V2;
 For the new transmission configuration model, before adding an IPv4 clock link, run the
ADD IPADDR4 command to configure the port IP address.
 For the old transmission configuration model, before adding an IPv4 clock link, run the
ADD DEVIP command to configure the port IP address.
 Before adding an IPv6 clock link, run the ADD IPADDR6 command to configure the port IP
address.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET CLKSYNCMODE: CLKSYNCMODE=TIME;
 SET CLKMODE: MODE=AUTO;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 The transmission configuration model can be the new or old model.
 If the old model is used, position information such as cabinet, subrack, and slot is included.
Transmission configurations and physical devices are bound together. IPv4 and IPv6 MOs
above the IP layer are independent of each other. If the new model is used, transmission
configurations are decoupled from physical devices. That is, unnecessary cabinet,
subrack, and slot configurations are excluded from transmission configurations, and IPv4
and IPv6 MOs above the IP layer are combined. This facilitates the introduction of new
transmission functions and reduces transmission configuration parameters.
 Compared with the old model, the new model introduces an INTERFACE MO to the data
link layer to isolate the upper layers from the physical layer and decouple transmission
configurations from physical devices. In the new model, device information such as
cabinet, subrack, slot, and sub-board needs to be configured only for the physical layer or
data link layer but not for other layers when transmission links need to be configured or
transmission boards or ports need to be adjusted.
gNodeB NR V100R016C10 Initial Configurationby MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET GTRANSPARA: TRANSCFGMODE=NEW;
 The transmission configuration model can be the new or old model, depending on the
GTRANSPARA.TRANSCFGMODE parameter setting. When this parameter is set to
OLD, the old transmission configuration model is used. When this parameter is set to
NEW, the new transmission configuration model is used.
 In the new transmission model, the binding relationship between the transport layer and
the device model is decoupled. That is, transmission parameters are no longer associated
with physical boards or ports. When planning transmission configuration data in the new
model, you do not need to pay attention to information about physical devices.
 In the new model, an INTERFACE MO is added at the data link layer to isolate the upper
layers from the physical layer. The new model simplifies operations in scenarios such as
changing transmission boards and changing transmission ports.
 In the new model, the IPv4 and IPv6 models are normalized, and the IPv4 and IPv6
configuration objects above the IP layer are combined, which facilitates the extension of
new transmission functions and reduces transmission configuration parameters.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 gNodeBs use the IP over ETH transmission mode. Transmission data can be configured
only in endpoint mode.
 When you configure a transmission link, set the endpoint parameters (gNodeB control- and
user-plane hosts and peer S-GW/UPF/eNodeB/gNodeB).
 The gNodeB automatically sets up the S1/X2/NG/Xn interface based on the endpoint
information.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 gNodeBs use the IP over ETH transmission mode. Transmission data can be configured
only in endpoint mode.
 When you configure a transmission link, set the endpoint parameters (gNodeB control- and
user-plane hosts and peer S-GW/UPF/eNodeB/gNodeB).
 The gNodeB automatically sets up the S1/X2 or NG/Xn interface based on the endpoint
information.
 PORTID indicates an Ethernet port.
 IPRSCGRP: This MO replaced RSCGRP in the new model.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 gNodeBs use the IP over ETH transmission mode. Transmission data can be configured
only in endpoint mode.
 When you configure a transmission link, set the endpoint parameters (gNodeB control- and
user-plane hosts and peer S-GW/UPF/eNodeB/gNodeB).
 The gNodeB automatically sets up the S1/X2 or NG/Xn interface based on the endpoint
information.
 PORTID indicates an Ethernet port.
 IPRSCGRP: This MO replaced RSCGRP in the new model.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD ETHPORT: SN=7, SBT=BASE_BOARD, PN=1, PA=FIBER, SPEED=AUTO,
DUPLEX=AUTO;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD DEVIP: SN=7, SBT=BASE_BOARD, PT=ETH, PN=0, IP="162.22.131.35",
MASK="255.255.0.0";
 The IP addresses in one routing domain of different ports must be in different network
segments. The IP addresses of one port can be in the same network segment.
 A maximum of 8 device IP addresses can be configured on an Ethernet port, a port that
carries an Ethernet trunk, or Ethernet CI port. A maximum of 7 device IP addresses can be
configured on a port that carries a PPP link or an MP group.
 Each loopback port supports a maximum of 2 device IP addresses.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD IPRT: RTIDX=2, SN=7, SBT=BASE_BOARD, DSTIP="183.100.50.10",
DSTMASK="255.255.255.255", RTTYPE=NEXTHOP, NEXTHOP="162.22.0.1",
MTUSWITCH=OFF;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 To plan VLANs, configure VLAN data, which involves the following three scenarios:
 For interface-based VLAN configuration, run the ADD INTERFACE command with
Interface Type set to VLAN so that an interface-based VLAN ID can be set.
Associate the interface with a port at the physical layer or data link layer.
 If VLAN networking is planned as single VLAN, run the ADD VLANMAP command
to add an entry of mapping from a next-hop IP address to a single VLAN. In this
step, set VLAN Mode to SINGLEVLAN, set Set VLAN Priority to
DISABLE(Disable) (recommended) to use the default mapping relationship or run
the SET DSCPMAP command to set the mapping between DSCPs and VLAN
priorities. If Set VLAN Priority is set to ENABLE(Enable), you need to set the
VLAN Priority parameter.
 If VLAN networking is planned as subnet VLAN, run the ADD SUBNETVLAN
command to add subnet-based VLAN mapping.
 If non-VLAN networking is required, run the ADD INTERFACE command with Interface
Type set to NORMAL. Associate the interface with a port at the physical layer or data link
layer.
 If logical IP addresses are planned for service packets, configure a normal interface whose
Port Type is LOOPINT. Run the ADD LOOPBACK command to add a loopback interface.
Run the ADD INTERFACE command with Interface Type set to NORMAL(Normal), Port
Type set to LOOPINT(Loopback Interface), and IPv6 Switch set to DISABLE(Disable).
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD ETHPORT: SN=7, SBT=BASE_BOARD, PN=1, PORTID=1, PA=FIBER,
SPEED=AUTO, DUPLEX=AUTO;
 Port Attribute: indicates whether the Ethernet port is an electrical port or optical port.
When the system is started, the system binds the Ethernet port with an optical port first if
the default port attribute is set to AUTO.
 Speed: indicates the rate mode of an Ethernet port. The rate mode of an Ethernet port
must be consistent with that of its interconnected port.
 PORTID: indicates the ID of an Ethernet port, which uniquely identifies the Ethernet port.
When the system automatically creates an Ethernet port, the most significant bit to the
least significant bit of this parameter value indicate the cabinet number, subrack number,
slot number, and port number of the Ethernet port, respectively. When Transmission
Configuration Mode in the GTRANSPARA MO is set to OLD, this parameter is optional.
If this parameter is not set, the default value 4294967295 is used. When Transmission
Configuration Mode in the GTRANSPARA MO is set to NEW, this parameter is
mandatory and must be unique in the system. If the ETHPORT MO is not configured, the
default value 4294967295 of PORTID is displayed.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD INTERFACE: ITFID=0, ITFTYPE=VLAN, PT=ETH, PORTID=1, VLANID=3501;
 The IP addresses in one routing domain of differentports must be in different network
segments. The IP addresses of one port can be in the same network segment.
 A maximum of 8 device IP addresses can be configured on an Ethernet port, a port that
carries an Ethernet trunk, or Ethernet CI port. A maximum of 7 device IP addresses can be
configured on a port that carries a PPP link or an MP group.
 Each loopback port supports a maximum of 2 device IP addresses.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD IPADDR4: ITFID=0, IP="162.22.131.35", MASK="255.255.0.0";
 The IPv4 addresses in one routing domain of different ports must be in different network
segments. The IPv4 addresses of one port can be in the same network segment.
 During the configuration of an IPv4 address, if an error message indicating an IP address
conflict is displayed, search the existing IP address that may conflict with the IP address to
be configured by running the following commands: LST IPADDR4, DSP IPADDR4, LST
OMCH, DSP OMCH, LST LOCALIP, DSP LOCALIP, LST IPROUTE4, DSP IPROUTE4,
LST SRCIPROUTE4, and DSP SRCIPROUTE4. Then, resolve the IP address conflict.
The conflicting IP address may be an IPv4 address, local IP address of an O&M channel,
IP address for local maintenance, next-hop IP address of a route, or next-hop IP address
of a source IP route.
 A maximum of 8 IPv4 addresses can be configured on an Ethernet port, a port that carries
an Ethernet trunk, or a subinterface. Each loopback port supports a maximum of 2 IPv4
addresses.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD IPROUTE4: RTIDX=3, DSTIP="183.1.50.1", DSTMASK="255.255.255.255",
RTTYPE=NEXTHOP, NEXTHOP="162.22.0.1", MTUSWITCH=OFF;
 Routes that have the same destination IP address and subnet mask but different priorities
in a routing domain are active/standby routes.
 In the same routing domain, the route to be bound to a remote maintenance channel must
be on a different network segment from any other route that is not bound to any remote
maintenance channel.
 In the same routing area, two routes that have the same destination network segment and
are not bound to any remote maintenance channel should have different priorities.
 In the same routing domain, two routes to the same destination IP address with the same
subnet mask and not bound to the remote maintenance channel must be configured on the
same board, and it is recommended that the priorities of the two routes be different.
 In the same routing domain, if a route is not bound to a remote maintenance channel, it is
not recommended that the destination IP address and subnet mask of the route be the
same as the destination IP address and subnet mask of the route bound to the remote
maintenance channel. If they are the same and the route is not on the same board as the
route bound to the currently used remote maintenance channel, the system disables the
route.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 Tag Protocol Identifier (TPID) contains 2 bytes, with a fixed value of 0x8100. As a new
type defined by IEEE, it indicates a frame carrying a 802.1Q tag.
 Tag Control Information (TCI) contains 2 bytes. The details of frame control information are
as follows:
 Priority: 3 bits, indicating the priority of the Ethernet frame. Eight priorities (0-7) are used
to provide differentiated forwarding services.
 Canonical Format Indicator (CFI): 1 bit, indicating the bit sequence of address
information in the token ring/source route FDDI medium access, that is, whether a low
bit or a high bit is transmitted first.
 VLAN ID: 12 bits, value range: 0-4095. Based on the VLAN configuration of the switch
port, the forwarding of Ethernet frames can be controlled.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 The VLAM group mode is not recommended.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
• ADD VLANMAP: NEXTHOPIP=“162.22.0.1", MASK="255.255.0.0",
VLANMODE=SINGLEVLAN, VLANID=1, SETPRIO=DISABLE;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 SET DSCPMAP: VRFIDX=0, DSCP=14, VLANPRIO=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
 Only the gNodeBFunction supports the X2-C interface.
 The gNodeBFunction MO contains the gNBCUX2 MO, which is used to configure the X2
interface. The gNBCUX2 MO references the EPGROUP MO. The EPGROUP MO consists
of the USERPLANEHOST (user-plane host configuration), SCTPHOST (SCTP host
configuration), and optional SCTPPEER (peer SCTP configuration) and
USERPLANEPEER (peer user-plane configuration).
 The gNodeBFunction MO contains the gNBX2SonConfig MO, which is used to configure
X2 self-setup. When X2 self-configuration is enabled, the peer SCTP information does not
need to be configured. The system uses the MAE-Access to implement X2 self-
configuration.
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 The gNodeBFunction supports the S1-U interface but does not support the S1-C
interface (LTE).
 The gNodeBFunction MO contains the gNBCUS1 MO, which is used to configure the S1
interface. The gNBCUS1 MO references the EPGROUP MO. The EPGROUP MO
consists of the USERPLANEHOST MO and USERPLANEPEER MO (optional).
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 The gNBCUXn MO is used to configure the Xn interface. The gNBCUXn MO references
the EPGROUP MO. The EPGROUP MO consists of the USERPLANEHOST MO,
SCTPHOST MO, SCTPPEER MO (optional), and USERPLANEPEER MO (optional).
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 The gNBCUNG MO is used to configure the NG interface. The gNBCUNG MO references
the EPGROUP MO. The EPGROUP MO consists of the USERPLANEHOST MO,
SCTPHOST MO, SCTPPEER MO (optional), and USERPLANEPEER MO (optional).
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD EPGROUP: EPGROUPID=1, IPPMSWITCH=DISABLE;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SCTPTEMPLATE: SCTPTEMPLATEID=0, SWITCHBACKFLAG=ENABLE;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co.,Ltd. All rights reserved.
 ADD SCTPHOST: SCTPHOSTID=0, IPVERSION=IPv4, SIGIP1V4="162.22.131.35",
SIGIP1SECSWITCH=DISABLE, SIGIP2V4="0.0.0.0", SIGIP2SECSWITCH=DISABLE,
PN=36412, SIMPLEMODESWITCH=SIMPLE_MODE_OFF, SCTPTEMPLATEID=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SCTPPEER: SCTPPEERID=0, IPVERSION=IPv4, SIGIP1V4="10.20.20.50",
SIGIP1SECSWITCH=DISABLE, SIGIP2V4="0.0.0.0", SIGIP2SECSWITCH=DISABLE,
PN=36412, SIMPLEMODESWITCH=SIMPLE_MODE_OFF;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD USERPLANEHOST: UPHOSTID=3, IPVERSION=IPv4, LOCIPV4="162.22.131.35",
IPSECSWITCH=DISABLE;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD USERPLANEPEER: UPPEERID=0, IPVERSION=IPv4, PEERIPV4="10.20.20.52",
IPSECSWITCH=DISABLE;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SCTPHOST2EPGRP: EPGROUPID=0, SCTPHOSTID=0;
 ADD SCTPPEER2EPGRP: EPGROUPID=0, SCTPPEERID=1;
 ADD UPHOST2EPGRP: EPGROUPID=0, UPHOSTID=0;
 ADD UPPEER2EPGRP: EPGROUPID=0, UPPEERID=1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
ADD GNBCUS1: gNBCuS1Id=1, UpEpGroupId=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GNBCUX2: gNBCuX2Id=0, CpEpGroupId=1, UpEpGroupId=1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GNBCUXN: gNBCuXnId=1, CpEpGroupId=1, UpEpGroupId=1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD GNBCUNG: gNBCuNgId=1, CpEpGroupId=1, UpEpGroupId=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD OMCH: IP="162.22.131.35", MASK="255.255.0.0", PEERIP="10.160.201.175",
PEERMASK="255.255.255.0", BEAR=IPV4, BRT=NO, CHECKTYPE=NONE;
 Local IP: indicates the local IP address of the remote OM channel. In the old model for
IPv4 transmission, this IP address must be added by running the ADD DEVIP command.
In the new model for IPv4 transmission, this IP address must be added by running the
ADD IPADDR4 command. In the new model for IPv6 transmission, this IP address must
be added by running the ADD IPADDR6 command.
 If the peer and local IP address of the OM channel are on different network segments, a
route must be bound to the channel. In the old model for IPv4 transmission, a route can be
added by running the ADD IPRT command. In the new model for IPv4 transmission, a
route can be added by running the ADD IPROUTE4 command. In the new model for IPv6
transmission, a route can be added by running the ADD IPROUTE6 command.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 In the overlapping coverage scenario, a cell consists of one sector, and the coverage of
the cell is the same as that of the sector.
 In the separate coverage scenario, multiple sectors are planned in the same cell to form a
multi-sector cell to reduce handovers between cells. Common multi-sector cells include
two-RU-combined cells and digital combination cells.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 The SectorEqm MO defines a group of antenna channels in a sector and their working
mode. The supported working modes include RX, TX, and TX/RX (also indicates whether
an antenna channel is used as an active/standby TX channel). A sector can have multiple
sets of sector equipment.
 The EUCellSectorEqm MO defines the sector equipment used by a cell and the dedicated
capability of the cell on each sector equipment. A set of sector equipment can provide
different services for one or more cells. You can specify different maximum transmit power
for different cells on one set of sector equipment.
 An NRDUCell MO defines information such as the NR DU cell ID and RF information. It is
configured by network planning engineers based on site requirements.
 An NRDUCellTrp MO defines the basic TRP information such as information of baseband
equipment and RF equipment. It is configured by network planning engineers based on
site requirements.
 An NRDUCellCoverage MO defines basic RF equipment information. It is configured by
network planning engineers based on site requirements.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD BASEBANDEQM: BASEBANDEQMID=0, BASEBANDEQMTYPE=ULDL,
UMTSDEMMODE=NULL, SN1=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SECTOR: SECTORID=1, ANTNUM=0, CREATESECTOREQM=FALSE;
 The number of antennas corresponding to an AAU is fixed to 0.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SECTOREQM: SECTOREQMID=0, SECTORID=1, ANTCFGMODE=BEAM,
RRUCN=0, RRUSRN=61, RRUSN=0, BEAMSHAPE=SEC_120DEG,
BEAMLAYERSPLIT=None, BEAMAZIMUTHOFFSET=None;
 If Create Default Sector Equipment in the ADD SECTOR command is set to FALSE, run
the ADD SECTOREQM command to add a set of sector equipment and the antenna
corresponding to the sector equipment.
 If massive MIMO is enabled, Antenna Config Mode must be set to BEAM. For details,
see the corresponding guide.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELL: NrDuCellId=7, NrDuCellName="7", DuplexMode=CELL_TDD, CellId=7,
PhysicalCellId=0, FrequencyBand=N78, DlNarfcn=633332,
UlBandwidth=CELL_BW_100M, DlBandwidth=CELL_BW_100M,
SlotAssignment=4_1_DDDSU, SlotStructure=SS2, TrackingAreaId=0,
SsbDescMethod=SSB_DESC_TYPE_NARFCN, SsbFreqPos=633320,
LogicalRootSequenceIndex=0;
 The number of ports for transmitting reference signals in a cell cannot be larger than the
number of physical antennas.
 If massive MIMO is enabled, the TX/RX mode of the cell can be set to 64T64R. For details,
see the corresponding guide.
 Logical Root Sequence Index: indicates the index of the start logical root sequence used
to generate the cell preamble sequence. Each logical root sequence maps one physical
root sequence. For details, see 3GPP TS 38.211.
 An SSB absolute frequency and global synchronization channel number should be added
during the addition of a cell.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELL: NrDuCellId=7, NrDuCellName="7", DuplexMode=CELL_FDD, CellId=7,
PhysicalCellId=0, FrequencyBand=N3, DlNarfcn=370000, UlBandwidth=CELL_BW_20M,
DlBandwidth=CELL_BW_20M, TrackingAreaId=0, SsbFreqPos=4625,
LogicalRootSequenceIndex=0;
 The SSB frequency-domain position is specified by the NRDUCell.SsbFreqPos
parameter. The NRDUCell.SsbDescMethod parameterspecifies how an SSB frequency-
domain position is described:
 If NRDUCell.SsbDescMethod is set to SSB_DESC_TYPE_NARFCN,
NRDUCell.SsbFreqPos indicates the NARFCN corresponding to the SSB center
frequency.
 If NRDUCell.SsbDescMethod is set to SSB_DESC_TYPE_GSCN,
NRDUCell.SsbFreqPos indicates the GSCN corresponding to the SSB center
frequency.
 In SA or hybrid SA and NSA networking, set the NRDUCell.SsbDescMethod parameter
to SSB_DESC_TYPE_GSCN. In NSA networking, set the NRDUCell.SsbDescMethod
parameter to SSB_DESC_TYPE_GSCN or SSB_DESC_TYPE_NARFCN.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELLTRP: NrDuCellTrpId=7, NrDuCellId=7, TxRxMode=64T64R,
BasebandEqmId=255, MaxTransmitPower=300,
CpriCompression=3DOT2_COMPRESSION;
 The number of ports for transmitting reference signals in a cell cannot be larger than the
number of physical antennas.
 If massive MIMO is enabled, Transmit and Receive Mode of the cell can be set to
64T64R.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELLTRP: NrDuCellTrpId=7, NrDuCellId=7, TxRxMode=4T4R,
BasebandEqmId=255, PowerConfigMode=TRANSMIT_POWER, MaxTransmitPower=400,
CpriCompression=2_COMPRESSION, FrAndDuplexMode=FDD;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELLCOVERAGE: NrDuCellTrpId=7, NrDuCellCoverageId=0, SectorEqmId=0;
 Use this command to add an NR DU cell coverage item.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRCELL: NrCellId=7, CellName="dingbiao", CellId=7, FrequencyBand=N77,
DuplexMode=CELL_TDD;
 The number of ports for transmitting reference signals in a cell cannot be larger than the
number of physical antennas.
 If massive MIMO is enabled, Transmit and Receive Mode of the cell can be set to
64T64R.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ΔFGlobal: Granularity of the global frequency raster
 FREF: RF reference frequency
 NREF: NR-ARFCN (NR Absolute Radio Frequency Channel Number)
 NREF-Offs and FREF-Offs are provided in the table.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELL: NrDuCellId=7, NrDuCellName="7", DuplexMode=CELL_TDD, CellId=7,
PhysicalCellId=0, FrequencyBand=N78, UlNarfcnConfigInd=NOT_CONFIG,
DlNarfcn=633332, UlBandwidth=CELL_BW_100M, DlBandwidth=CELL_BW_100M,
SlotAssignment=4_1_DDDSU, SlotStructure=SS2, TrackingAreaId=0,
SsbDescMethod=SSB_DESC_TYPE_NARFCN, SsbFreqPos=633320,
LogicalRootSequenceIndex=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 24250–100000 MHz: high frequency range
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
• (2125.5-2110)x10+1950=2105
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
Neighboring CellNeighboring Cell
LTE N CellLTE N Cell
EUTRANINTRA
FREQNCELL
EUTRANINTRA
FREQNCELL
EUTRANINTER
FREQNCELL
EUTRANINTER
FREQNCELL
Inter System N
cell
Inter System N
cell
CDMA2000HRP
DNCELL
CDMA2000HRP
DNCELL
UTRANNCELLUTRANNCELL
GERANNCELLGERANNCELL
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NREXTERNALNCELL: Mcc="262", Mnc="05", gNBId=968842, CellId=9,
PhysicalCellId=9, SsbDescMethod=SSB_DESC_TYPE_NARFCN, SsbFreqPos=633320,
Tac=33;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRCELLRELATION: NrCellId=0, Mcc="450", Mnc="06", gNBId=31180, CellId=7;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRNFREQ: LocalCellId=0, DlArfcn=633320, UlArfcnConfigInd=NOT_CFG,
SsbOffset=0, SsbPeriod=20MS, SubcarrierSpacing=30KHZ;
 ADD NRMFBIFREQ: DlArfcn=633320, FrequencyBand=N78;
 Configure the frequency band for a neighboring NR frequency whose NR-ARFCN falls
within the following ranges: 158200-160600, 285400-303400, 386000-398000, 402000-
404000, 422000-434000, 514000-537999, 620000-653333, and 2054166-2084999
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NREXTERNALCELL: Mcc="262", Mnc="05", GnodebId=1, CellId=7, DlArfcn=633320,
UlArfcnConfigInd=NOT_CFG, PhyCellId=1, Tac=1;
 ADD NRNRELATIONSHIP: LocalCellId=0, Mcc="262", Mnc="05", GnodebId=1, CellId=7;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD PCCFREQCFG: PccDlEarfcn=1500;
 ADD NRSCGFREQCONFIG: PccDlEarfcn=1500, ScgDlArfcn=633320,
ScgDlArfcnPriority=6, NsaDcB1ThldRsrp=-105, NrB1TimeToTrigger=40MS;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD NSADCMGMTCONFIG: LocalCellId=0,
NsaDcAlgoSwitch=NSA_DC_CAPABILITY_SWITCH-1;
 MOD CELLQCIPARA: LocalCellId=0, Qci=9,
NsaDcDefaultBearerMode=SCG_SPLIT_BEARER;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD GNBPDCPPARAMGROUP: PdcpParamGroupId=1,
DlDataPdcpSplitMode=SCG_AND_MCG;
 MOD GNBPDCPPARAMGROUP: PdcpParamGroupId=1, UlDataSplitPrimaryPath=SCG,
UlDataSplitThreshold=BYTE1600, DlPdcpSnSize=BITS18;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD NRCELLALGOSWITCH: NrCellId=7, NsaDcSwitch=ON;
 MOD NRCELLQCIBEARER: NrCellId=7, Qci=9, AmPdcpParamGroupId=1, RlcMode=AM;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD RRUCHAIN: RCN=0, TT=CHAIN, BM=COLD, AT=LOCALPORT, HSRN=0, HSN=2,
HPN=2, CR=AUTO, USERDEFRATENEGOSW=OFF;
 ADD RRU: CN=0, SRN=60, SN=0, TP=TRUNK, RCN=0, PS=0, RT=MRRU, RS=LN,
RN="5G06_60", RXNUM=4, TXNUM=4, MNTMODE=NORMAL,
RFDCPWROFFALMDETECTSW=OFF, RFTXSIGNDETECTSW=OFF;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD SECTOR: SECTORID=1, SECNAME="Sector_0", USERLABEL="for cell",
ANTNUM=4, ANT1CN=0, ANT1SRN=60, ANT1SN=0, ANT1N=R0A,ANT2CN=0,
ANT2SRN=60, ANT2SN=0, ANT2N=R0B, ANT3CN=0, ANT3SRN=60, ANT3SN=0,
ANT3N=R0C, ANT4CN=0, ANT4SRN=60, ANT4SN=0, ANT4N=R0D,
CREATESECTOREQM=FALSE;
 ADD SECTOREQM: SECTOREQMID=1, SECTORID=1,
ANTCFGMODE=ANTENNAPORT, ANTNUM=4, ANT1CN=0, ANT1SRN=60, ANT1SN=0,
ANT1N=R0A, ANTTYPE1=RX_MODE, ANT2CN=0, ANT2SRN=60, ANT2SN=0,
ANT2N=R0B, ANTTYPE2=RX_MODE, ANT3CN=0, ANT3SRN=60, ANT3SN=0,
ANT3N=R0C, ANTTYPE3=RX_MODE, ANT4CN=0, ANT4SRN=60, ANT4SN=0,
ANT4N=R0D, ANTTYPE4=RX_MODE;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELL: NrDuCellId=1, NrDuCellName="1", DuplexMode=CELL_SUL,
FrequencyBand=N80, UlNarfcn=344500, UlBandwidth=CELL_BW_15M,
SubcarrierSpacing=15KHz, LogicalRootSequenceIndex=0;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELLTRP: NrDuCellTrpId=1, NrDuCellId=1, TxRxMode=4R,
CpriCompression=NO_COMPRESSION;
 ADD NRDUCELLCOVERAGE: NrDuCellTrpId=1, NrDuCellCoverageId=1,
SectorEqmId=1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 ADD NRDUCELLSUL: NrDuCellId=0, SulNrDuCellId=1,RsrpThld=-110,SrsRsrpThld=-111;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD NRDUCELLALGOSWITCH: NrDuCellId=0, UlDlDecouplingSwitch=ON;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD NRDUCELLPRACH: NRDUCellId=0, RsrpThldForSsbSelection=29;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD NRDUCELLSUL: NrDuCellId=0, SulNrDuCellId=1,
UlDlDecouplingAlgoSwitch=SEC_HARMONIC_INTRF_AVOID_SW-
1&UL_CARR_SEL_FOR_UE_EXP_SW-1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
 MOD RACHCFG: LocalCellId=0, PrachConfigIndexCfgInd=NOT_CFG;
 ADD NRSCGFREQCONFIG: PccDlEarfcn=1300, ScgDlArfcn=0, ScgDlArfcnPriority=7,
NrFrequencyBand=N80-1, NsaDcSulB1ThldRsrp=-115;
 MOD NSADCMGMTCONFIG: LocalCellId=0, NsaDcAlgoSwitch=TDM_SWITCH-1;
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
Copyright © Huawei Technologies Co., Ltd. All rights reserved.
gNodeB NR V100R016C10 Initial Configuration by MML Commands
