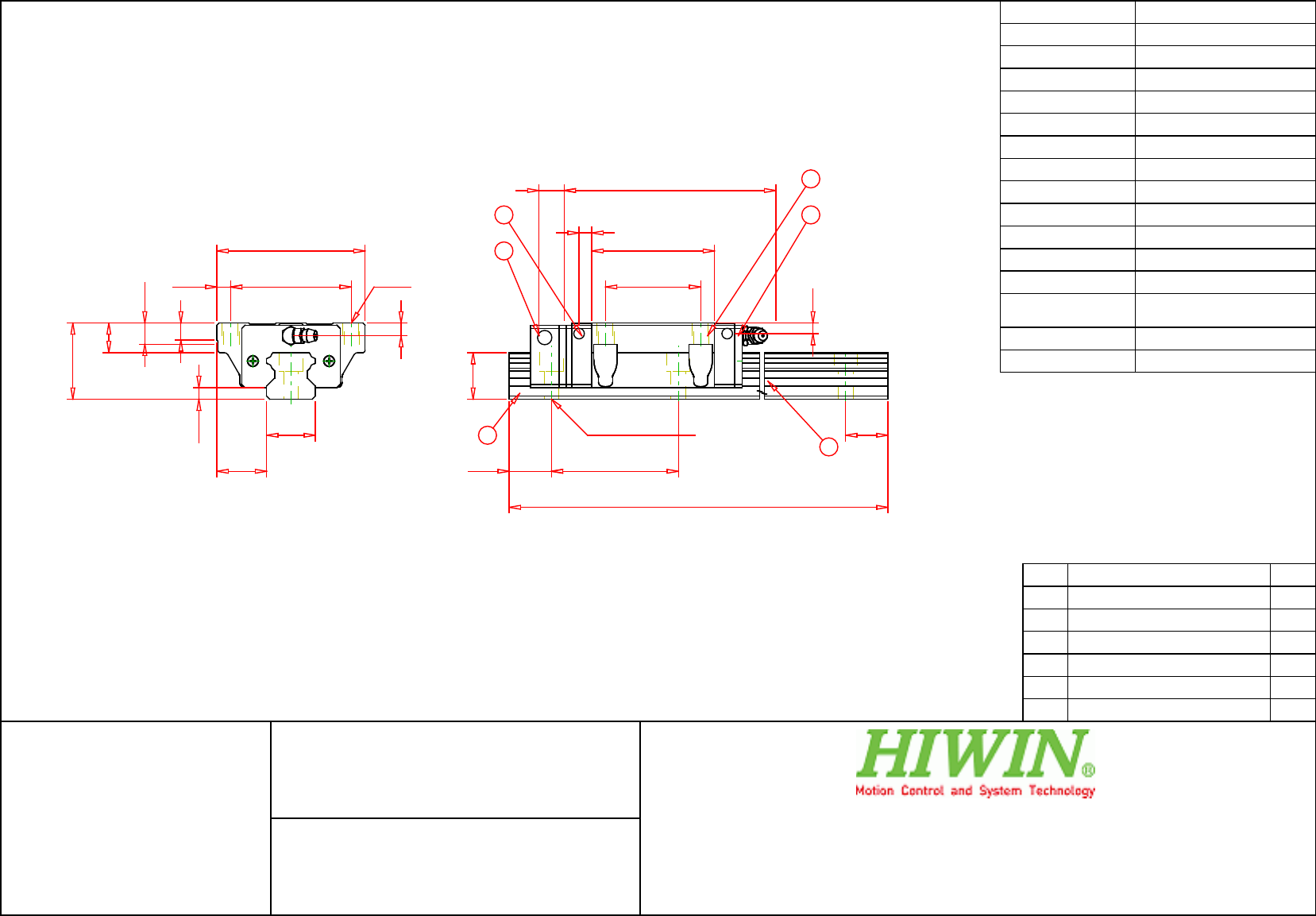

<p>Series HG Series</p><p>Block Type Flange Type</p><p>Model Size 25</p><p>Load Type Heavy Load</p><p>Block Mounting Top or Bottom<!--1--></p><p>Block Standard Block</p><p>No. of Blocks per Rail 2</p><p>Rail Mounting Type Mounting From Top</p><p>Rail Length 4000</p><p>Rail Standard Rail</p><p>Preload Class Medium Preload (0.05 ~ 0.07C)</p><p>Precision Code C</p><p>No. of Rails per Axis Set II</p><p>Dust Protection Standard protection (End seal and</p><p>bottom seal)</p><p>Lubrication Self-Lubricant</p><p>Reinforced Cap Yes</p><p>No. Part Name Qty</p><p>1 Rail 1</p><p>2 Block 2</p><p>3 Oil Cartridge 2</p><p>4 End Cap 4</p><p>5 End Seal 4</p><p>7 Oil Cartridge 1</p><p>Notes : - Drawing not to scale</p><p>- Dimensions subject to change</p><p>without notice</p><p>Part No. :</p><p>HGW25CC2R4000ZACII+E2/RC</p><p>Description :</p><p>HG Series - Non-interchangeable Type</p><p>Hiwin Corp.</p><p>USA:</p><p>Address : 12455 Jim Dhamer Dr</p><p>Huntley, IL 60142</p><p>Tel. : +1-847-827-2270</p><p>Email : info@hiwin.com</p><p>Web : https://www.hiwin.us</p><p>Hiwin Technologies Corp.</p><p>Taiwan:</p><p>Address : No. 7, Jingke Road</p><p>Taichung Precision Machinery Park</p><p>Taichung 40852, Taiwan</p><p>Tel. : +886-4-23594510</p><p>Email : business@hiwin.tw</p><p>Web : www.hiwin.tw</p><p>6.5 57</p><p>70</p><p>23</p><p>23.5</p><p>68</p><p>14</p><p>36</p><p>5.</p><p>5</p><p>4-M8</p><p>10</p><p>20 60</p><p>4000</p><p>22</p><p>45</p><p>58</p><p>6</p><p>10012</p><p>5</p><p>1</p><p>2</p><p>3</p><p>4 5</p><p>20</p><p>8</p><p>67-ø7 THRU</p><p>ø11x9 DP C-BORE</p>
