1/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.

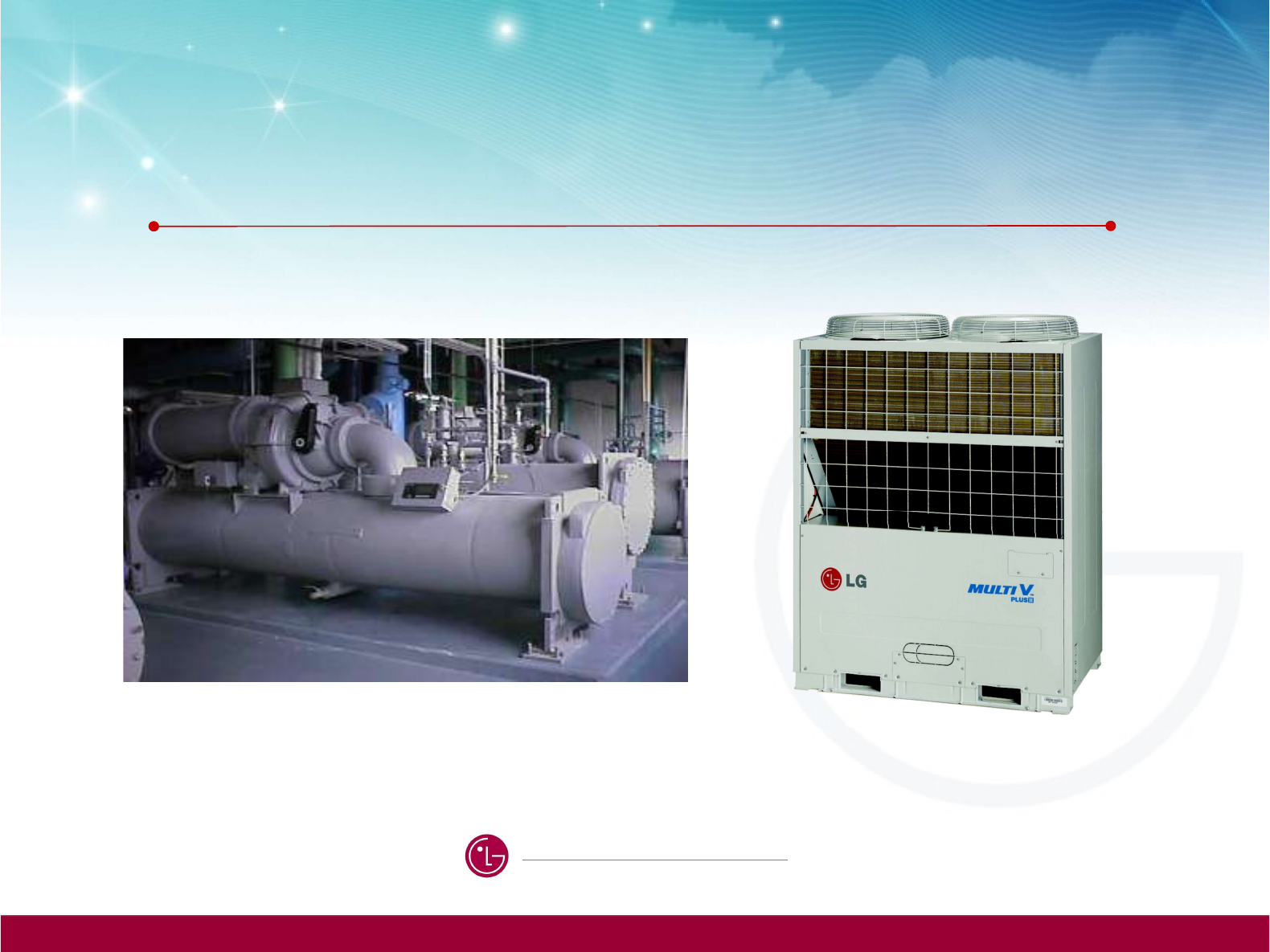

Chiller vs VRF system
LG Electronics Inc.
LGEHQ CAC Team
2/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
1. Design Comparison
VRF is very simpli�ed refrigerant piping system. More 𿿿exible than water piping.VRF is very simpli�ed refrigerant piping system. More 𿿿exible than water piping.
Chiller
MULTI V Plus Ⅱ (VRF)Chiller system
• Outdoor unit (air-cooled type)
• Indoor unit
• Refrigerant piping
• Chiller
• FCU (Fan Coil Unit)
• AHU (Air Handling Unit)
System
composition
Feature
• Cooling tower
• Water piping, Duct working
• Water pumps
System concept
DesignDesign CommissioningOperation MaintenanceInstallation Reliability
3/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Network
Feature Chiller system
• Complicated wiring
MULTI V Plus Ⅱ (VRF)
• Simple wiring
DesignDesign CommissioningOperation MaintenanceInstallation Reliability
Easy network wiringEasy network wiring
1. Design Comparison Network design
ACP
4/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
1. Design Comparison Total management
DesignDesign CommissioningOperation MaintenanceInstallation Reliability

[Manufacturer]
VAV boxes
supplier
Control
system
Feature Chiller system MULTI V Plus Ⅱ (VRF)
(For VRF) M(For VRF) Manufactureranufacturer provide all equipment provide all equipment
• Simple control structure
 No additional control provider
• Central control and energy monitoring with
 low cost available
• Complicated control structure, additional
 control manager in the system needed,
 increasing cost
• Third part control provider needed,
 interconnectivity problems.
5/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Design Commissioning
MULTI V Plus Ⅱ (VRF)Chiller system
• The systems condition only the
 necessary rooms with regard
 to user demands.
• The systems commonly condition the entire building
 at predetermined times, with no regard to user demands.
 (very hot midnight, weekend, holiday etc)
Capacity
control
Feature
After o񯿿ce hours operation, VRF could be operated for the user demands.After o񯿿ce hours operation, VRF could be operated for the user demands.
Operating Area
Individual operation
OperationOperation MaintenanceInstallation Reliability
2. Operation Comparison
6/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Temperature
control
Feature Chiller system
Require
1 or 2
MULTI V Plus (VRF)Ⅱ
Very precise
± 0.5
Precise temperature controlPrecise temperature control
3030
2525
2020
1515
1010 2020 3030 4040 5050 6060 7070
CoolingCooling
MIN.MIN.
Chiller system
MULTI V system
R
o
o
m
 t
e
m
p
.
R
o
o
m
 t
e
m
p
.
 0.5 0 C from set point
Design CommissioningOperationOperation MaintenanceInstallation Reliability
Temp. control2. Operation Comparison
7/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
VRF system doesn’t need a duct space.VRF system doesn’t need a duct space.
Space
Efficiency
Feature MULTI V Plus Ⅱ (VRF)
• Small refrigerant space
Chiller system
• Large duct space
Design CommissioningOperation MaintenanceInstallationInstallation Reliability
Space (Duct working)3. Installation Comparison
8/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Chiller
Pump
Boiler
Cooling
 tower
(On the rooftop)
(Machine room drawing)
Outdoor
Unit
(On the rooftop)
(Rooftop drawing)
VRF system is no need for a machine room. VRF system is no need for a machine room.
Installation
space
Feature MULTI V Plus Ⅱ (VRF)
• No need a machine room
Chiller system
• Need a machine room
Design CommissioningOperation MaintenanceInstallationInstallation Reliability
Installation space3. Installation Comparison
9/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
E񯿿cient use of space is possible for VRF systemE񯿿cient use of space is possible for VRF system
Chiller system
Space
Efficiency
Feature
P P
1/3
CHILLER SYSTEMCHILLER SYSTEM
• Large pipe shaft is needed for water piping
MULTI V Plus Ⅱ (VRF)
VRF SystemVRF System
• Small pipe shaft is needed
Design CommissioningOperation MaintenanceInstallationInstallation Reliability
Space (Pipe shaft)3. Installation Comparison
10/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
VRF system expansion is very easy with extra outdoor & indoor unit.VRF system expansion is very easy with extra outdoor & indoor unit.
Chiller system
System
Expansion
Feature
• Capacity addition is difficult
 as additional mechanical room, pump, cooling tower,
 panel and piping is required.
MULTI V Plus Ⅱ (VRF)
• System Expansion is Easy
+
Design CommissioningOperation MaintenanceInstallationInstallation Reliability
System expansion3. Installation Comparison
11/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
1 step Commissioning6 steps Commissioning
MULTI V Plus Ⅱ (VRF)Chiller system
Commissioning
Feature
There are a lot of commissioning points for the chiller systemThere are a lot of commissioning points for the chiller system
• 6 Steps Commissioning • 1 Step Commissioning
Water cooled chiller (3)
(4)
Design CommissioningCommissioningOperation MaintenanceInstallation Reliability
NO. of commissioning point4. Commissioning Comparison
12/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Maintenance
Feature
Maintenance costs for a Multi V is lower than chilled water systems.Maintenance costs for a Multi V is lower than chilled water systems.
Water cooled chiller (3)
(4)
MULTI V Plus Ⅱ (VRF)
• Filter cleaning
• Heat exchanger cleaning
• Cycle check by notebook (LG MV)
Chiller system
• Filter cleaning
• Duct cleaning
• Water pipe – maintenance
• Periodical oil change, overhaul
• Pump
• Water treatment
• Cooling tower cleaning
Design CommissioningOperation MaintenanceMaintenanceInstallation Reliability
Maintenance list5. Maintenance Comparison
13/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
(For Chiller Water treatment is required for clean water)(For Chiller Water treatment is required for clean water)
Water
treatment
Feature Chiller system
• Water treatment is required
 (deficient service can cause legionary disease in the system)
MULTI V Plus Ⅱ (VRF)
• No water treatment is needed
Design CommissioningOperation MaintenanceMaintenanceInstallation Reliability
Water treatment5. Maintenance Comparison
14/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Scale
cleaning
Feature Chiller system MULTI V Plus Ⅱ (VRF)
• No water pipes : No scale (use
refrigerant)
• Need to clean the water pipes
 System efficiency drop & origin of germs
After 2~3year After 5~6year After 7~8year
10% 25~30% 35~40%
thickness of scale
E
n
e
rg
y
 L
o
s
s
Unit : mm
Unit : %
(For Chiller) Maintenance & cleaning periodically by exclusive company(For Chiller) Maintenance & cleaning periodically by exclusive company
Design CommissioningOperation MaintenanceMaintenanceInstallation Reliability
Scale cleaning5. Maintenance Comparison
15/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Maintenance Staff5. Maintenance Comparison
Design CommissioningOperation MaintenanceMaintenanceInstallation Reliability
Maintenance
Staff
Feature Chiller system MULTI V Plus Ⅱ (VRF)
(For Chiller) Certi�ed maintenance sta򯿿 is needed(For Chiller) Certi�ed maintenance sta򯿿 is needed
• No need special maintenance staff.
• Economic and easy maintenance
• The system requires certified maintenance
 staff not only for chillers but also pumps,
 boilers, cooling towers etc.
• More expensive maintenance cost.
16/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Pipe Erosion6. Reliability Comparison
Design CommissioningOperationMaintenanceInstallation ReliabilityReliability
Pipe
Erosion
Feature Chiller system MULTI V Plus Ⅱ (VRF)
(For Chiller) Certi�ed maintenance sta򯿿 is needed(For Chiller) Certi�ed maintenance sta򯿿 is needed
• Refrigerant does not cause corrosion therefore
 no pipe damage occurred
• Pipe erosion can cause leakage.
• System capacity reduction.
• Brines use increase corrosion, anti corrosion
 additives needed
17/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Category Product
Initial Cost
 (USD)
Initial Cost
(USD)Total
Water
Cooled
Chiller
Chiller Price 355,484
877,097
AHU / Cooling
Tower / Pump,
Price
148,065
Installation 383,871
VRV
Multi V 874,498
1,109,660
Installation 235,161
•April 2008
•Cooling Only
•Air Duct Included
Initial CostInitial Cost Running Cost Maintenance Cost Total cost
• Type of Building: Shopping Mall
• Total area 9,000 m2 : 6 storey Building :1,500 m2/floor
• Actual cooling area : 1,500 m2 * 80 % * 6 Floor = 7,200 m2
• Cooling Load (Tr) / m2 : 700 Tr *12000 Btu/Hr = 1,166 Btu/m2

• Equipment : Water cooled chiller /Multi V unit
 - Water Cooled Chiller :Trane Water cooled chiller
 350 Tr x 2 set =700 Tr + 300 Back up
 Pump’s =400 Tr x 2 set
 AHU = 8000 CFM x 36 set
 Cooling Tower =1200 Gpm x 3 +3 Back up
 - VRF System :LG Multi V Plus II
 48 Hp x 19 set=912 Hp 726 Tr

• Air conditioning time : Operation
 - 13 hour a day (09:00 ~ 22:00)
 - 30 days a month
 - average load by month
 Equipments & Installation costEquipments & Installation cost
MULTI V vs Chiller7. Economic analysis
18/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Multi V running cost is 65 % compare to chiller
Category Product
Running
Cost
(USD)Total
Water
Cooled
Chiller
Chiller Price
308,697
AHU /
Cooling
Tower /
Pump, Price
Multi V Price 200,158
•Based on KW data chiller/Multi V
•Based on, Thailand electrical standard
•ARI-Air conditioning & Refrigeration Institute
Running cost
Savings up to
 15th yr : 35%
Chiller
Multi V
 Electrical costElectrical cost
MULTI V vs Chiller7. Economic analysis
Initial Cost Running CostRunning Cost Maintenance Cost Total cost
19/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Category Price
Maintenance
Cost
(USD)Total
Water
Cooled
Chiller
Chiller Price
32,177AHU / Cooling
Tower / Pump,
Price
Multi V Price 11,468
Chiller
Multi V
Maintenance
Cost savings
Up to 15th yr
: 66%
•Maintenance breakdown
•Chiller system -31 USD / Rt / yr.- 6 times/yr
•Multi V- 48 USD / Indoor / yr.- 6 times/yr
 - 145 USD / Outdoor / yr.- 6 times/yr
Multi V maintenance cost is 24 % compare to chiller
 Maintenance costMaintenance cost
MULTI V vs Chiller7. Economic analysis
Initial Cost Running Cost Maintenance CostMaintenance Cost Total cost
20/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Category Chiller system VRF system Remarks
Economic
Analysis
Initial cost
(USD)
877,097 927,057 　
Running cost
(USD)
308,698 200,158
Shopping
mall
6F, 9,000
㎡
Maintenace cost
(USD)
32,177 11,468
Total cost (USD) 1,217,972 1,138,683
BEP - 　 1.7 years 　
7. Economic analysis
Initial Cost Running Cost Maintenance Cost Total costTotal cost
21/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
LCC (Life Cycle Cost for 15 years) : Chiller 5.99 M$ > Multi V 4.27 M$ (71%)
BEP (Break Even Point) : 1.7 Years
LCC (15 years) BEP
1st year 2nd year 3rd year 4th year
- 20K$
+10K$
+40K$
+70K$
BEP :
1.7 Years
Cost savings
: 29%
BEP :
1.7 Years
8. LCC
22/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
Chiller Multi V
1,228
1,109
877
 32
308
200
11
1,3217%
 Product &
Installation
 Maintenance
Electrical Fee
Chiller Multi V
5,992
23%15%
8%
77% 73%
4%
4,274 35%
 Product &
Installation
 Maintenance
Electrical Fee
Initial Cost (1st year)
( K US$ )
LCC (15 years)
8. LCC
23/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
App. Cost estimation
24/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
App. Actual running cost
25/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
App. Maintenance cost
26/14 Copyright ⓒ 2008 All rights reserved LG Electronics Inc.
ARI Released The New Standard in 2003
Available through
the ARI web site:
WWW.ARI.ORG
Portion by cooling load (%)Portion by cooling load (%)
IPLVIPLV
OROR
APLVAPLV
==
0.010.01 + + 0.420.42 + + 0.450.45 + + 0.120.12
 A B C DA B C D
11
kW / kW (ARI Part load weighting factors)
1% 1% 42% 45% 42% 45% 12%12%
100% 75% 50% 25%100% 75% 50% 25%
WEIGHTED (%)WEIGHTED (%)
ARI550/590-2003ARI550/590-2003
Cooling LoadCooling Load
App. Energy efficiency (IPLV)
