FOUNDRY TECHNOLOGY or CASTING
OF TECHNOLOGY
FOUNDRY TECHNOLOGY
DEFINITION

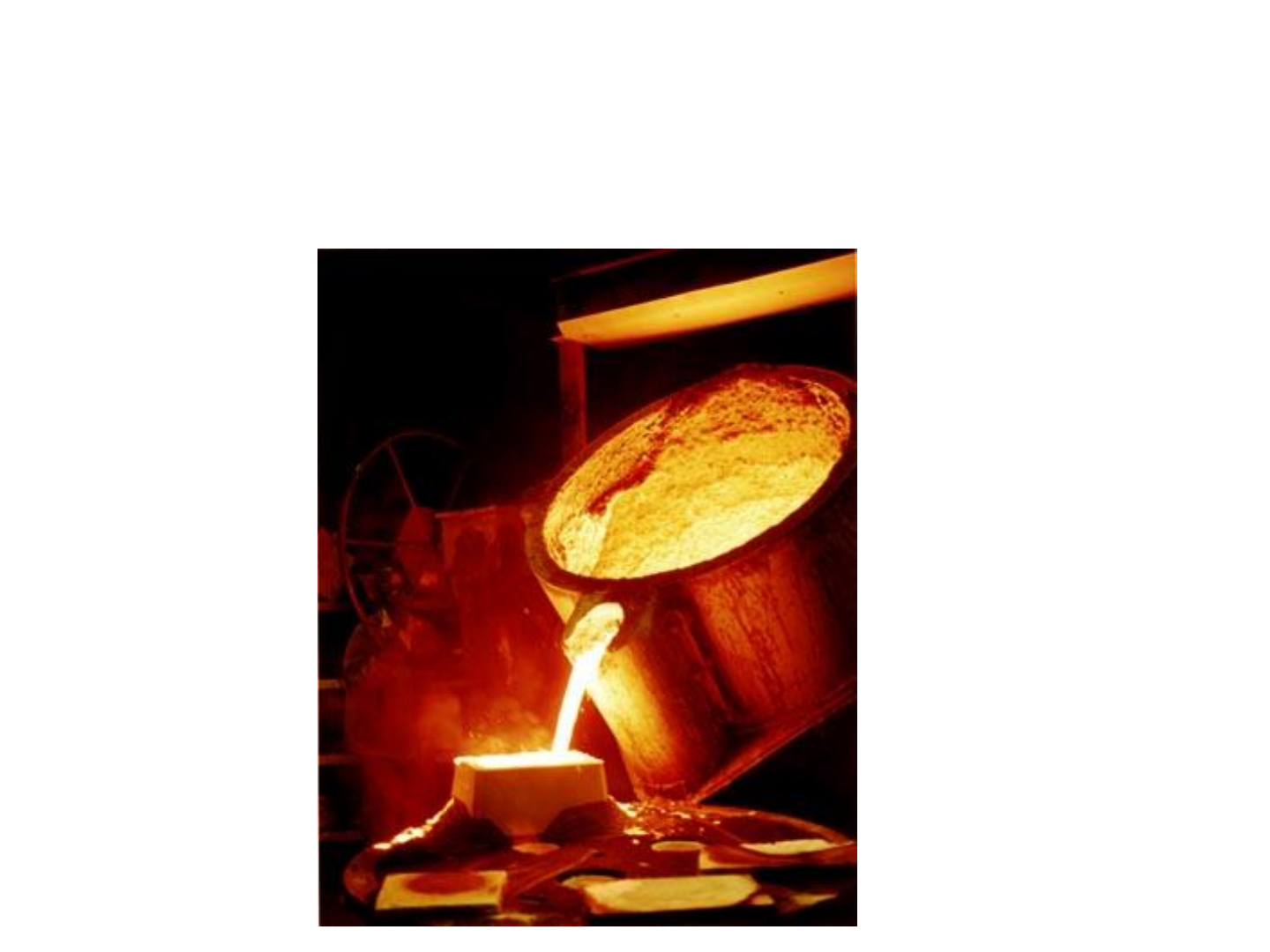

A method of forming the material from the casting and solidification of
the liquid metal into a mold or matrix, the dimensions and geometry of
which reproduces the part to be obtained.
LIQUID
METAL LEAKING
MOLD or
MATRIX SOLIDIFICATION
PART
 Casting is a technology of forming metals or metal alloys, where
the internal cavity of the mold or matrix reproduces the "negative" of
the part, being an application of the principle of Archimedes: "a liquid
takes the form of the container containing it "
 The material is cast in suitable furnaces and cast in a
TEMPORARY (disposable) or PERMANENT (durable) form resistant
to pressure and heat of the cast metal.
CHARACTERIZATION OF FOUNDRY TECHNOLOGY
"Casting is the shortest path between the metallic raw
material and the finished or almost permanent part,
under conditions of use "

OLD TECNOLOGY


5
* Dimensional accuracy and surface finish depending on the type of
process used;
* Used in the "melt-on" or "heat-treated or mechanically" conditions,
depending on the material standard or customer specification, that is,

Note: it can be used "casting or melting bricks" or heat, mechanical or thermo-
mechanical properties for the correctness of properties required for use, but not
achieved in the crude state of casting may exhibit distortion, embrittlement due to
residual stresses or cracking due to thermal stresses caused by temperature gradients
during solidification and cooling;

CHARACTERIZATION OF FOUNDRY TECHNOLOGY
* Can be recovered by welding, if authorized by the product or
customer standard; surface discontinuities can be filled by adhesives,
resins or hardenable doughs only for superficial aesthetic situations,
so as not to compromise the integrity, strength and service life of the
part in service!
* Quality controlled through testing and compliance testing, sanity,
acceptability and functionality
* Management in a context of Quality, Safety and Environment System
CHARACTERIZATION OF FOUNDRY TECHNOLOGY
Industrially or artistically employed to obtain products, machine parts
or parts for mechanical, industrial and household purposes, with
greater freedom of shape: simple or complex geometry / shape, small
or large dimensions or thicknesses (up to 200 tons and minimum size
limited to a few grams), flat or massive, with recesses and voids
internal or open to the surface.
INDUSTRIAL APPLICATION OF FOUNDRY

9
INDUSTRIAL APPLICATION OF FOUNDRY
* Applicable to form virtually all types of metals and alloys used in
engineering except high melting point materials such as tungsten,
molybdenum and tantalum.
* Unique option for manufacturing parts or components in cast iron,
as this material can not be mechanically formed by rolling, forging or
stamping.
a) Semi-products: ingots with a simple geometry to be
stored in the solid state for later remelting or that will
be used for mechanical forming by means of plastic
deformation by rolling, forging, extrusion, drawing for
other shapes such as plates, strips, profiles and bars,
to be machined, cut, welded or stamped.
b) Parts: with basic and definitive shapes
and geometries, which depict the desired
final shape, being able to undergo
modifications by machining, grinding and
welding or alterations of properties by
thermal or mechanical treatment.
INDUSTRIAL APPLICATION OF FOUNDRY
Examples:
• hydraulic rotor,
• Pelton type, Francis (5 ton) or rotor parts (spade, belt or hub),
• Al or Mg alloy wheels for cars,
• combustion engine block in cast iron or aluminum, etc.
CASTING OF TECHNIQUES
12
INDUSTRIAL APPLICATION OF FOUNDRY
Hydraulic rotor
13
INDUSTRIAL APPLICATION OF FOUNDRY
Combustion engine block in cast iron or aluminum
14
INDUSTRIAL APPLICATION OF FOUNDRY
15
INDUSTRIAL APPLICATION OF FOUNDRY

16
INDUSTRIAL APPLICATION OF FOUNDRY
Al or Mg alloy wheels for cars
17
INDUSTRIAL APPLICATION OF FOUNDRY
* Typical sequence for temporary casting:

model → molding → model extraction → mold → demoulding → cast
part or semi-finished product
 ↑
 leakage
 ↑
 metal → fusion

* Typical sequence for casting in permanent mold:

 mold → demoulding → cast part or
semi-finished product
 ↑
 leakage
 ↑
 metal → fusion

ELEMENTS of FOUNDRY
 Hand-crafted, by form, by conventional or rapid prototyping, in
single piece or in several parts to facilitate the confection of the mold
or its removal from the mold; may be definitive (used for various
moldings) in metal, wood, synthetic resin, plaster or styrofoam and
wax consumables.
PATTERN or MODEL
PATTERN or MODEL
Prototype of the part used to shape and dimension the temporary mold
cavity, reproducing the shape of the part with dimensions equivalent
to the part (without overmold) or added / altered to compensate for
the contraction of solidification of the metal, after cooling (with
overmetall) and also for certain configurations of the model and / or
part.
22
 The geometry and dimensions of the desired part or semi-
finished product are shown in "negative", matrix, form, tool, stamp,
model plate, shell or ingot mold containing the cavity that portrays and
corresponds in "negative".
 The mold forming material must have sufficient mechanical
strength and erosion resistance to withstand the action of the heat
and / or pressure of the liquid metal therein without undoing or
deforming.

MOLD
The classification:
* Temporary mold: for example the green sand mold
• made in order to configure the cavity, which corresponds to the part
to be cast;
• requires a model (pattern) for its preparation;
• to remove the molten part from the inside;
• made in cured sand, plaster, calcined material, cement or ceramic for
a single use, being sacrificed, in the demolding


MOLD
MOLD
* Permanent mold: for example the matrix
• preserved after remove the part have being produced; made of
ferrous metal (steel, cast iron) or non-ferrous (bronze, copper),
being durable and reusable to melt several pieces,
• without being destroyed, being therefore definitive;
• does not require a model for its preparation, since its superficial
relief is made by machining or electro erosion to obtain the
"negative" forms,
• without the conventional modeling and molding steps for temporary
mold
MOLD
MOLD
* Permanent mold: for example the matrix
Mold Elements

* temporary mold box: container to contain the molding material; may
consist of several overlapping boxes depending on the size and geometry
of the part to be cast
* Model Plates: Permanent molding die mounted on a metal plate
* Pouring cup or Leakage channel: conduit through which liquid metal
that will fill the mold cavity is flowed or injected
MOLD
* Riser: extension of the mold, but which is not part of the part,
positioned so as to finally solidify, directing the solidification in the
mold.
NOTE: (a) Liquid metal technical reserve, which holds the molten metal inside
the mold at a "positive pressure", enabling the cast part within the mold to
solidify according to the desired dimensions and geometry.
(b) Secondary functions: visualize the filling level of the mold to indicate the
end of the casting, enable the exit of gases or residues present inside the
mold, placeto fix clamps for handling the part after demolding

MOLD
* Core
• Part manufactured separately and placed inside the mold, after
extraction of the model;
• to form hollows or recesses in the interior or exterior of the cast;
• this mold element is made by means of a core box, whose internal
void is its negative, made with the same materials used in the
models;
• the recess in the mold where the core will lean or fit, if fixing, is
called the CORE marking.
MOLD
MOLD
* Core
Characteristics of a casting core:

* Mechanical strength: withstand pressures of liquid metal;

* Permeability: to facilitate the escape of gases;

* Refractoriness: withstand high temperatures;

* Compressibility: withstand the expansion or contraction of the metal;

* Collapsibility: not to oppose the contraction of the metal and ease of
disassembly.
* Core
MOLD
* Coolers or Chills:
• Good heat conducting metals (high thermal conductivity) that make
the temporary mold in certain positions to control the heat flow of
the metal under cooling;
• accelerating the solidification process and the cooling rate in a part
of the part or locally, aiming avoid internal defects in the part or
phenomena detrimental to the melt;
• by rapid thermal exchange with the mold; in permanent metal molds,
the mold itself performs these functions.
MOLD
MOLD
* Insulators:
• Refractory materials, located in certain positions of the temporary
mold to allow slower cooling speed in a particular part or region of
the part, delaying the solidification process;
• leaving the metal molten longer in high temperature, aiming some
benefit to the melt;
• in temporary molds of sand, cement or plaster, the mold itself
performs these functions
MOLD
* Sighs: ventilation holes or thieves where the air or gases present inside
the mold or generated during the leakage are trapped, avoiding pores in the
cast.
MOLD
These original properties can be altered by thermal or mechanical treatments.
a) Casting: resulting from the solidification and cooling process of the
liquid metal inside the mold, presenting a microstructure and
heterogeneous chemical composition, conferring anisotropy to the
part, with variable level of segregation and residual internal stresses;
b) Thermally treated: resulting from post-cast heat treatments, giving
the piece a microstructural and chemical homogeneity, with low level of
residual stresses and, therefore, with isotropic characteristics
c) Mechanically treated: resulting from mechanical treatments after
casting, such as vibration or hardening, producing a part with properties
dependent on these processes
PROPERTIES OF A CAST
The degree of quality and mechanical properties required of a casting
will depend on the application and nature of the efforts to which it will
be subjected in service:
* Static loading
* Dynamic loading by fatigue, shock, vibration, etc.

PROPERTIES OF A CAST
Cast iron:
• Fe-C-Si ferrous alloy group with 2.5 to 4.0% C + 0.5 to 3.5%
Si + additions of alloying elements (when it is desired to
improve or impart some property to the base alloy);
• because of their low ductility, they can not be formed
mechanically:
• by rolling, forging or other plastic deformation processes, and
are therefore transformed into parts or components only
through the smelting, hence the name "cast iron".
METALS AND FERROUS METAL ALLOYS
Cast iron:
NOTE:They present as characteristics relatively low melting temperature, good
wetting, low volumetric contraction due to solidification, mechanical properties
defined by the chemical composition of the alloy + microstructure resulting from the
cooling rate during and after solidification inside the mold or by thermal and/or
mechanical treatments .
METALS AND FERROUS METAL ALLOYS
   
Hard Cast
iron:
cementite
(Fe3C)
Grey cast iron:
graphite in
shafts
Nodular cast iron
matrix hard cast
iron
+ carbon: graphite
Spheroidal cast
iron
carbon:
graphite on
nodules or
spheroids
Cast iron
↓
Mechanical properties
↓
Chemical composition + Cooling microstructure
METALS AND FERROUS METAL ALLOYS:
METALS AND FERROUS METAL ALLOYS:
White Cast Iron / Hard Cast Iron:
• its production is a combination of chemical composition + high
cooling rate, to suppress the graphitization, favoring the carbon
stay in the matrix in the form combined with iron → Fe3C:
Cementite.
• The mold should be metal to accelerate the rate of cooling of the
metal so as to obtain and control the depth of the quenched layer;
METALS AND FERROUS METAL ALLOYS:
Grey Cast Iron:
• Exhibits properties that are a function of the chemical
composition, shape and distribution of the free carbon in the form
of graphite, in addition to the influence of the thickness of the
part on the cooling rate in the casting mold;

Notes:
• It presents as characteristics a temperature range of fusion of
1360 to 1380;
• solid contraction of the order of half of the contraction of the
carbon steels, minimizing the surplus to compensate dimensional
loss and conferring lower level of thermal and / or residual
stresses;
METALS AND FERROUS METAL ALLOYS:
• solid contraction of the order of half of the contraction of the
carbon steels, minimizing the surplus to compensate dimensional
loss and conferring lower level of thermal and / or residual
stresses;
• the precipitation of graphite promotes dilation during the cooling
and solidification of the liquid, anomalous phenomenon that occurs
theoretically for a graphite content of 3%, but in practice, other
factors cause contractions in disagreement with what was
predicted.
METALS AND FERROUS METAL ALLOYS:
Ductile Cast Iron / Nodular Cast Iron:
• obtained from a white cast iron;
• by post-casting malleability heat treatment to cause the
transformation of some or all of the combined carbon into
graphite;
• making the material more ductile and toughness for various
industrial applications such as connections for hydraulic piping and
transmission electric, chains, spring brackets, steering or
differential box, wheel hubs, shoes.
METALS AND FERROUS METAL ALLOYS:
Malleable Cast iron / Spheroidal Cast Iron:
• the carbon is in the form of spheroidal graphite, which gives
greater continuity to the matrix, resulting in greater ductility,
toughness and mechanical strength.
Notes:
• It has as characteristics a melting temperature range of 1470 to
1490 ° C;
• a pearly matrix having a solid contraction of the order of 1.25%,
but upon annealing, it may have a dilation of ~ 0.4%, whereas a
ferritic matrix does not exhibit contraction.
METALS AND FERROUS METAL ALLOYS:
Cast alloys:
• group of ferrous alloys with Cdeoxidizing, desulfurising or dephosphating elements, coke / coal,
clay, resins
(c) sand: analytical tests (determination of moisture and clay and
granulometric analysis) and technological at room temperature (mechanical
strength, permeability, hardness, deformation, flow and friability) and high
temperature (collapsibility, compression, permeability, expansion and
contraction ).
FOUNDRY TESTS
(a) Goals:

* Melt and keep the liquid metal at the proper temperature for leakage

* Formation of an alloy from its elementary constituents

* Correction of the chemical composition to correct the percentage composition
of the alloying elements

* Refining of metal or alloy, for the elimination of impurities (sulfur,
phosphorus and oxygen)refluxing of the metal ingot or alloy obtained by
conventional furnaces to promote a progressive solidification, aiming at a
more homogeneous macro / microstructure with low inclusions,
segregation and porosity. The recast product has isotropic properties,
with high dimensional stability under subsequent heat treatment and high
and reproducible mechanical properties
FUSING FURNACES
(b) Types of Furnaces:
They use various forms of heating such as by fuel (coke, oil and gas) or
by electric energy (resistance, induction, electric arc), which
characterize different types of furnaces:
* Crucible: used to melt a defined amount of material; applicable to the
production of alloys of Al, Cu, Ni, Pb, cast iron
* Rotary: used to melt a defined amount of material; applicable to the
production of copper alloys (brass and brass)
* Reverb: Used to merge a defined amount of material; applicable to the
production of Al and copper alloys (brass and brass, when the copper is
melted and then the zinc is added)
FUSING FURNACES
(b) Types of Furnaces:
* Cuba: cubilô (continuous or intermittent fusion for cast iron) and blast
furnace (irons and first melts) for large quantities
* Convertor or Converter: LD type or electric to arc, applicable to the
production of steels in large quantities
* Reflux: furnaces suitable for refining ingots through
electroconductive slag, electron beam or arc under vacuum, aiming at
refining and / or progressive solidification of the metal, for its
purification and homogenization in terms of microstructure and chemical
constitution, with low inclusions and segregation.
FUSING FURNACES

55
FUSING FURNACES
56
FUSING FURNACES
Forno cubilô: fabricação de ferro fundido
57
FUSING FURNACES


Alto Forno: fabricação de ferro gusa
58
FUSING FURNACES

Convertedores: fabricação de aço a partir do ferro gusa + sucata
O2

O2
59
Carregamento de gusa no convertedor
Convertedores
Sopro por cima
Sopro por baixo
FUSING FURNACES


Forno elétrico: fusão de sucata
60
FUSING FURNACES
FUSING FURNACES
The leakage of liquid metal into the mold can be done by:
* Gravity: the molten metal is cast into the mold under the action of
the force of gravity
* Pressure:
- external mechanics: the molten metal is mechanically injected into
the mold under pressure of a plunger of a device coupled to the mold;
- centrifugation: the molten metal is injected into the mold under the
dynamics of centrifugal forces (the mold rotates about an axis)
LEAKAGE MOLDES
TYPES OF THE LEAKAGE

* Gravit
63
Tecnologia da Fundição
TYPES OF THE LEAKAGE




* Continuous
64
Types of leakages:

Pressure









65
During casting, liquid metal may be in contact with ambient air
under vacuum or controlled atmosphere.
Types of leakages:
♦ continuous: cast without interruption through a permanent mold
→ the cast is produced continuously
♦ Piece-to-Piece: Each die or piece is produced separately, in
temporary or permanent mold, from a single mold or derived from
a mold → serial or single-part production
♦ Bypass: through a single leakage channel, the metal fills several
molds at the same time
LEAKAGE MOLDES
* Casting temperature: the metal must be overheated to not
solidify before occupying the entire interior of the mold and
maintaining its proper viscosity;
 * Leakage mode: turbulence of the flow of liquid metal inside
the mold, causing erosion of the same and altering the dimensions
and geometry of the piece, besides favoring the oxidation of the
material
Factors influencing the casting of the metal into the mold:
LEAKAGE MOLDES
• The obtaining of a casting involves phase change of the liquid material
to solid;
• Phenomena of exchange and transfer of heat between the metal and
the mold.
• As the liquid metal solidifies, the heat is dissipated and is led through
the mold wall to the outside.
FOUNDATIONS OF METALLIC ALLOYS SOLIDIFICATION
The study of the solidification of a metallic material is considered:
• the aspect of the energies involved, according to the
thermodynamics and kinetics of the nucleation speed and grain
growth, from a liquid.

NOTE:
It is a phenomenon that shows the "discipline" of atoms at the moment the
system reaches the temperature of solidification → each atom "knows" its
place in the space of the crystalline structure; some atoms are "disobedient"
occupying undefined places, generating defects in the atomic arrangement.
FOUNDATIONS OF METALLIC ALLOYS SOLIDIFICATION
• A metal in the solid state has atoms that vibrate with certain
frequency around well defined geometric positions;
• determined by the type of crystalline arrangement characteristic
of the material;
• in the liquid state, besides vibrating, the atoms have no definite
position, being in random motion.
FOUNDATIONS OF METALLIC ALLOYS SOLIDIFICATION
• In order to initiate the solidification, that is, transformation of
the liquid metal to the solid state;
• several atoms must group together forming an embryo, that when
growing, will give rise to a nucleus, with a certain atomic
arrangement, type CCC, CFC, HC, etc. , characteristic of each
material.
FOUNDATIONS OF METALLIC ALLOYS SOLIDIFICATION
(a) Pure metals and eutectic alloys:
They are solidified at constant temperature and equal to their
solidification point (or melting point), presenting a typical cooling curve:
Temperatura
Tvazamento
vazamento: estado líquido
resfriamento do líquido
início da solidificação
fim da solidificação: estado sólido
resfriamento do sólido
Tempo
Ponto de solidificação
Tambiente
SOLIDIFICATION OF METALS AND METALLIC ALLOYS
(b) Metal alloys:
They solidify in a temperature range or solidification (or melting)
interval, whose typical curve of cooling would be:
vazamento: estado líquido
Diagrama de fase da liga metálica XY
Temperatura
Tvazamento
resfriamento do líquido
início da solidificação
fim da solidificação:
estado sólido
resfriamen
to do
sólido
Tempo
Líquido
Sólido
T
Intervalo de
solidificação
da liga
X (%) Y (%)
L+S
70
Curva típica de resfriamento para uma liga metálica 30% X - 70% Y
SOLIDIFICATION OF METALS AND METALLIC ALLOYS
The melting involves phenomena characteristic of the evolution of
the metal or liquid alloy until its complete solidification in the mold at
room temperature:
* nucleation and grain growth;
* microstructure development;
* chemical segregation;
* occurrence of porosities or inclusions.
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Note:
• The gradual appearance of the first solid nucleus, called
dendrites;
• in the pure metals and zoned structure in the metal alloys, which
will give rise to the future grains of the material, occurs next to
the wall of the mold by homogeneous nucleation or from solid
particles present in the liquid , by heterogeneous nucleation.
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Nucleation:
Solid nucleus with
minimum grain size


embryos
Grain growth:
Crystals with critical radius for
continuous growth
and stable of embryos
NOTE:
For crystal nucleation, a suitable minimum size, called a "critical
radius", is required for continuous and stable growth during
solidification.
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
 Microstructure:
• The mold is designed so that the solidification advances towards the
top of the part;
• avoiding solidification in the metal supply region, near the pour
channel.

SOLIDIFICATION NUCLEARING AND DEVELOPMENT
 Microstructure:
• As a function of the direction of heat flow through the mold, the
natural direction of solidification and grain growth of the material
have a preferred (crystallographic) direction from the edge to the
center of the molding directed solidification.
grãos com direção de crescimento cristalográfico perpendicular ao fluxo de
calor, têm crescimento mais dinâmico
direção de
crescimento
direção do fluxo de
calor
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
As a consequence, it can develop an anisotropic microstructure during
solidification, with different morphologies resulting from this
process:
* Coated or equiaxial zone: region of small grains of the same size,
next to the wall of the mold;
* Columnar zone: region of elongated grains, oriented according to
the direction of heat extraction by the mold, located in the
intermediate position between the wall and the center of the mold;
* Central equiaxial zone: region of small grains in the center of the
mold, resulting from the nucleation of the last part to be solidified
and fragments of columnar grains entrained to this region of the
mold.

SOLIDIFICATION NUCLEARING AND DEVELOPMENT


microestrutura interna típica de uma peça, em
corte transversal
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
The homogeneity of the granulation and the grain size of the melt can be
controlled by:
* high casting temperature: coarser granulation of the material
* pre-heating of the mold: lower cooling speed promotes smaller
number of cores and formation of solid crystals gros coarse granulation
* type of mold: metallic or shell favor a higher speed of cooling
* post-cast heat treatment: standardization or refining of grain

SOLIDIFICATION NUCLEARING AND DEVELOPMENT
The homogeneity of the granulation and the grain size of the melt can
be controlled by:
* Mechanical treatment during solidification: mold vibration or
turbulence in casting
* Presence of impurities or inoculants in the liquid phase: pre-
nucleus of new grain growth
Liquid metal leakage temperature is defined by the temperature:
* maximum: limited by mold wear
* minimum: limited by the capacity of the metal to completely fill the
mold, as it influences the viscosity of the material; the metal in an
unsuitable viscosity can generate complete non-filling of the mold,
producing the part with faults or discontinuities
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Phenomenon that occurs during the solidification of a metallic alloy.
• Due to the difference in solubility of certain alloying elements and /
or impurities between the liquid and solidified metal, a non-uniform
chemical distribution or distribution along the cast during
solidification results in a micro or macro segregation .
• Some of these elements / impurities can be segregated in the inter
dendritic spaces, inside the grains or in the last part of the melt to
solidify;
• In the case of steels, carbon, sulfur and phosphorus are elements
that will be distributed differently between the liquid metal and the
solid.
Chemical Segregation
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
• In this way, the chemical segregation favors a chemical composition
difference between the initially solidified metal and the final one,
resulting in a heterogeneity and chemical anisotropy throughout the
part, with consequent influence on the mechanical (mechanical) and
chemical properties (resistance to corrosion or oxidation ) of the
melt.


Chemical Segregation
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
• In order to minimize and / or eliminate the chemical
segregation of the part, it is possible to prepare the metal with
minimum impurities, zonal remelting, use of feeders, subsequent
heat treatments of homogenization.
Discontinuities:
• If the gases and oxides formed during the casting and
solidification are trapped in the material, the melt will exhibit
nonmetallic porosities and inclusions, discontinuities that
influence its properties and performance in service.
Chemical Segregation
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
• During the solidification inside the mold, phenomena occur associated
with the transformation of phase and cooling of the melt to the
ambient temperature, which are associated to the volume contraction
of the part:
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Contraction of Solidification
This volumetric variation of the metal during solidification and cooling is
due to the sum of the contractions:
* Liquid: corresponds to the lowering of the temperature of the liquid
metal until the beginning of its solidification
* Solidification: corresponds to the change from the liquid state to the
solid
* Solid: corresponds to the cooling from the end-of-solidification
temperature to room temperature
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Contraction of Solidification
(a) SHRINKAGE:
• Appearance of a void (also called sucking, retraction void or
crater) in the cast, due to the volumetric contraction of the liquid
metal remaining during its solidification;
• its position in the cast depends on the location of the last region
to solidify, at the micro or macro level.
Consequences of contractions of the material inside the mold:
SOLIDIFICATION NUCLEARING AND DEVELOPMENT


Contração de solidificação
Rechupe: mecanismo de ocorrência
Solidificação x Transferência de calor x Contração
molde
troca de
 calor metal / molde
direção de
contração
direção de
 solidificação
vazio de
contração
sólido
Líquido = ponto quente
Consequences of contractions of the material inside the mold:
SOLIDIFICATION NUCLEARING AND DEVELOPMENT


Consequences of contractions of the material inside the mold:
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
SHRINKAGE
Consequences of contractions of the material inside the mold:
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
SHRINKAGE
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Consequences of contractions of the material inside the mold:
SHRINKAGE
To avoid the presence of riser in the part, one can use
preventive or corrective solutions: Riser or "hot head"
• the place of reserve of liquid metal inside or outside the mold, which
is continuously made available to the interior or place of the part
during its solidification;
• must be positioned so as to finally solidify to fulfill its purpose of
directing or disciplining the development of the solidification of the
metal within the temporary mold, to compensate for the contraction
of solidification and / or presence of the reject/shrinkage / void in
the part;
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
• this mold element does not eliminate the chipping but causes it to be
outside the useful part or ingot, ie in the feeder, which is
subsequently separated from the part after demolding.
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
The leakage channel may also function as a feeder.
• Depending on the size or geometry of the part, you can use 1 or
more feeders in the mold.
NOTE: Other secondary functions of the feeder channel: avoid segregation
inside the cast, view the fill level of the mold, allow gas or debris to escape
from the inside of the mold, fix clamps to handle the part after cooling.
SOLIDIFICATION NUCLEARING AND DEVELOPMENTDirected solidification
* Methods of model design and molding so as to control the
direction of solidification in a mold or a specific region of the part,
avoiding or minimizing the problems that volumetric shrinkage may
cause in the melt:
* Design of the part in order to allow a progressive cooling
throughout the piece, through the regularization of the thicknesses,
* Mass parts or replacing them with other forms of lower mass
concentration

SOLIDIFICATION NUCLEARING AND DEVELOPMENT
peça, com
formas
originais
formas
modificadas
para espessuras
razoavelmente
iguais
Directed Solidification
• It is desirable that the regions of the melt furthest from the
liquid metal supply in the pouring channel first cool and the
solidification advance of these regions towards the feeder
properly positioned in the mold.

SOLIDIFICATION NUCLEARING AND DEVELOPMENT
* Pouring temperature: the liquid metal must be at a temperature
and viscosity sufficient to fill the entire mold
* Leakage under pressure: the liquid metal is pressed into the die
until its final solidification through the die casting channel, which
acts as feeder.
* “Pasty phase”:This is due to the fact that the metal is in a
"pasty" phase, that is, in a semi-solid state, it avoids the liquid
contraction and part of the solidification contraction, minimizing the
occurrence of chemical separation and segregation.
massa menor
massa maior
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
* Dimensional loss of the cast: variation in part dimensions; this
problem can be solved by using an overmolded model / mold
(increased dimensions) to compensate for solid contraction in
cooling.
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
• The direction of solidification and the reactions in the solid state
are factors causing the appearance of internal thermal
stresses in the castings.
• The differentiated contractions in a casting during its
solidification and cooling may be due to the temperature gradient
in the part,
• Due to geometry and unequal thicknesses, favoring unequal cooling
rates, inducing the appearance of localized or generalized
thermal stresses.
SOLIDIFICATION NUCLEARING AND DEVELOPMENT

Numerical Simulation
Software SolidCast

“ ... o domínio do software de simulação
não dispensa o conhecimento e a
experiência do projetista, fundidor e
engenheiro, mas soma informações
de detalhes para tomadas de
decisões seguras e rápidas”
SOLIDIFICATION NUCLEARING AND DEVELOPMENT


Numerical Simulation
Software SolidCast
SOLIDIFICATION NUCLEARING AND DEVELOPMENT

Numerical Simulation
Software SolidCast
SOLIDIFICATION NUCLEARING AND DEVELOPMENT

Numerical Simulation
Software SolidCast
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
Thermal stresses can cause:
* Residual stresses  Thermal Yield Stresses plastic
deformation
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
COMPLEMENTARY OPERATIONS IN FOUNDRY
Paints and coatings: applied on the internal surfaces of molds and cores to
improve the surface finish of the pieces, modify the surface structure of the
sand or prevent the appearance of superficial defects in the castings.
Notes:
* increase the surface hardness of the mold in sand to prevent its erosion by
the movement of the molten metal
* prevent mold sand from adhering to the surface of the part
* to modify superficially the chemical or structural nature of the casting:
graphitizing inks to increase the carbon content, paints based on Ti, Al, Te or
Zn to influence the initial nucleation process
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
COMPLEMENTARY OPERATIONS IN FOUNDRY
* demoulding: in permanent or temporary molds, in addition to the exit
angles, mold release agents are used to prevent the mold from being gripped
on the mold walls, in the mold release; in the permanent molds, extractor
pins in the body of the half mold, facilitate the removal of the mold part
after cooling.
* Cleaning and Deburring: After demolding, the part is cleaned to remove
leaking, feeding and burring channels, by thermal cutting (oxyfuel, graphite)
or mechanical means (cutting discs, hammers).
In sand casting, males and sand adhered to the part, can be removed by high
pressure water jet, with or without sand or abrasive. The surface finish can
be done with emery, sand or shot blasting, by tumbling or other special
media
SOLIDIFICATION NUCLEARING AND DEVELOPMENT
The Foundry processes present different ways and operational
characteristics that enable several situations for the production of parts or
semiproducts.

AS TO THE TYPE OF FOUNDRY

(a) Part-by-piece casting: The cast is produced from a single mold
becoming occupied until the solidification and total cooling of the cast

(b) Continuous casting of products or semi-products: the casting is
produced continuously through a mold
CLASSIFICATION OF FOUNDRY PROCESSES
Casting in
Sand
Moulding
Casting in
Shell
Moulding
Carbon
Dioxide
Foundry
Casting in
plaster
Lost Wax
Casting
Mold Casting Die Casting Centrifugal
casting
Continuous
casting
CLASSIFICATION OF FOUNDRY PROCESSES

Casting in Sand Moulding
* Temporary mold: composed of natural sand + natural binder of
bentonite type + H2O + drying, being the compression molding +
cold cure to give support and integrity to compacted sand; is
recyclable.
CLASSIFICATION OF FOUNDRY PROCESSES

NOTE: Types of sand

* Face: used to cover the model and make contact with the molten metal
* Filling: Used to complete the molding box
* Additives: carbon, silica powder, cellulose, sawdust, silicones → to impart
or improve sand properties, such as plasticity, wettability, density,
compactability, permeability, etc.
Casting in Sand Moulding
CLASSIFICATION OF FOUNDRY PROCESSES
Temporary mold: consisting of sand + synthetic resin binder, molding by
depositing and compacting the sand on a metal model plate + hot cure at 150-
350°C or cold.
The molding generates a thin shell of 5 to 10 mm thickness, obtaining halves or
parts of the mold, which are glued together to produce the mold itself.
Synthetic resins: reversible / thermoplastic and irreversible / thermostable
resinous materials, cold curing (furanic, phenolic) or heat curing (thermosetting) +
sand
Shell Moulding or Coring
CLASSIFICATION OF FOUNDRY PROCESSES






molde montado
para
vazamento
(esquemático)
aquecimento
casca
Shell Moulding or Coring
CLASSIFICATION OF FOUNDRY PROCESSES
 CO2
CO2
CO2
CO2
areia + silicato
de sódio
Temporary mold: consisting of sand + synthetic sodium silicate binder,
sand molding + gassing + curing
Curing occurs by passing a stream of gas through the sand mold: reaction of
CO2 with sodium silicate, forming silica gel, sodium carbonate and water,
resulting in the cold curing of the mold rapidly. The CO 2 gassing can be
with individual hose or tubes distributed in perforations predetermined in
the mold or in chamber, with gas current.
Carbon Dioxide Foundry
CLASSIFICATION OF FOUNDRY PROCESSES


Mold: consisting of sand + cement cement + H2O, sand molding
Casting in Ceramic Mold or Gypsum ("Shaw" process)
Temporary mold: consisting of ceramic slab or refractory paste,
being molded by filling on the model, solidifying and giving precision
to the cast
CLASSIFICATION OF FOUNDRY PROCESSES
Casting in Sand-Cement or Casting in Shaw
Temporary mold: consisting of rubber for making the wax model and
refractory paste to obtain the casting mold itself.
 The molding is done by the complete wrapping of the consumable wax
model, invested by the refractory material, the wax model being melt
removed without destroying or damaging the healedmold.
Accuracy due to high shape / detail reproduction and dimensional
accuracy of the model; investment because it describes the overlaying
operation of the model with the molding mixture, called the investment
model.
Lost Wax Casting or Investment Casting
CLASSIFICATION OF FOUNDRY PROCESSES






moldagem
em cera
acabamento
da peça para
retirada
de canais
vaza
mento
do
metal
aquecimento do molde para
cura da massa e derretimento
dos modelos de cera
preparação do
molde para
investimento, com
massa refratária
fixação dos
modelos
de cera
desmoldagem


canal de vazamento
peça
mesa rotativa
canais
canal de
vazamento
molde
rotativo
peça
temporary or permanent mold: metallic or in sand bark subjected to
rotation; the liquid metal is cast in the center of the rotating mold: use
of centrifugal force for stationary or continuous mold filling
CLASSIFICATION OF FOUNDRY PROCESSES
Centrifugal Casting


Die Casting
permanent mold: cold chamber metal matrix and hot chamber to which the
liquid metal is pressed; applicable to metals and low melting alloys, associated
with thin and / or detailed sections / thicknesses.
CLASSIFICATION OF FOUNDRY PROCESSES

model being
vaporized
during metal
casting
Mould Casting or Die Casting
Temporary mold: made from a fusible or flammable model
(styrofoam-polystyrene), which is inside the mold; during casting,
the model melts or vaporizes under the action of the heat of the
metal.
CLASSIFICATION OF FOUNDRY PROCESSES

Lingotamento direto
panela
lingoteira

Lingotamento indireto
lingoteira
canal de vazamento
Conventional Casting
permanent mold: metallic in cast iron or bronze, called "ingot"; the
liquid metal is directly (above) or indirectly (by the base).
CLASSIFICATION OF FOUNDRY PROCESSES


Continuous
casting with
curved mold

Continuous
casting
with straight
mold
Continuous casting
permanent mold: metallic, straight or
curved; the continuous casting is done
according to the number of "shafts" in the
liquid metal distribution pan in the molds;
several steps of a typical sequence of
conventional casting are avoided when using
this technique, besides producing products
with varied sections (round, square,
rectangular, etc.), without using mechanical
conformation and heating of ingots for
plastic deformation.
CLASSIFICATION OF FOUNDRY PROCESSES

molde
metal fundido
detalhe
sistema de vazamento rotativo

fita fundida
Centrifugal Continuous Casting
Permanent mold: metal; the metal is continuously injected into the mold by
centrifugation; suitable for protective or wear resistant coatings,
manufacture of seamless metal ribbons, restorative filler for worn surfaces,
etc.
CLASSIFICATION OF FOUNDRY PROCESSES
”When you wish up stars, your dreams true”
 by Gomes, A. P.
