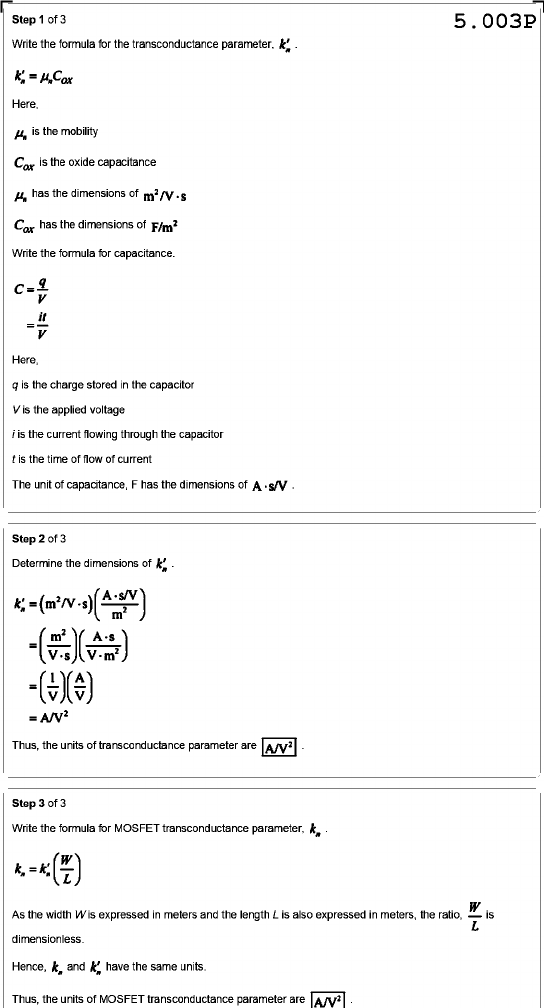

Step 1 of 3 5.003P Write the formula for the transconductance parameter, = Here, µₙ is the mobility is the oxide capacitance µₙ has the dimensions of has the dimensions of Write the formula for capacitance. Here, q is the charge stored in the capacitor V is the applied voltage i is the current flowing through the capacitor t is the time of flow of current The unit of capacitance, F has the dimensions of Step 2 of 3 Determine the dimensions of Thus, the units of transconductance parameter are A/V² Step 3 of 3 Write the formula for MOSFET transconductance parameter, As the width Wis expressed in meters and the length L is also expressed in meters, the ratio, is dimensionless. Hence, kn and kn have the same units. Thus, the units of MOSFET transconductance parameter are
