132 CHAPTER 5

Common Mistakes to Avoid

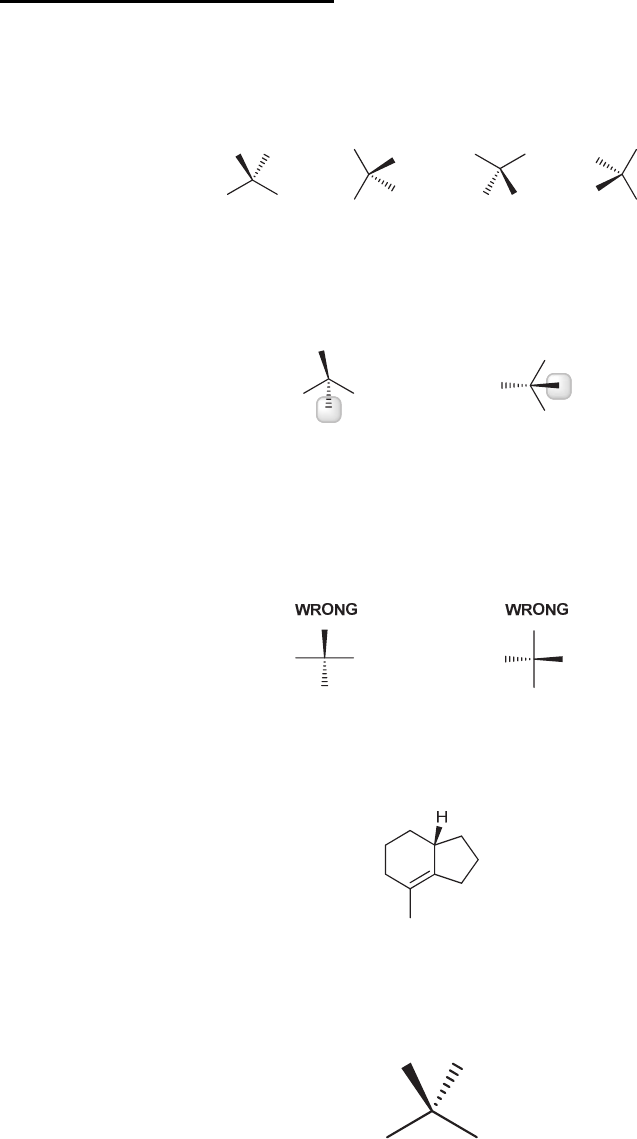

When drawing a chiral center, the four groups connected to the chiral center must be drawn so that one
group is on a wedge (which indicates that it is coming out of the page), and one group is on a dash (which
indicates that it is going behind the page), and two groups are on straight lines (which indicate that these
two groups are in the plane of the page), as seen in each of the following drawings:



Notice that in all of these cases, the two straight lines form a V, and neither the dash nor the wedge is
placed inside that V. This is very important. If either the dash or the wedge is placed inside the V, the
drawing becomes ambiguous and inaccurate. Don’t make this mistake, as it is a common mistake:

WRONG
This dash cannot
be placed here,
inside the V
This wedge cannot
be placed here,
inside the V
WRONG


The drawings above do not make any sense, and if a chiral center is drawn like either of the drawings
above, it would be impossible to assign a configuration to the chiral center. Never draw a chiral center that
way. For the same reason, never draw a chiral center like this:



These two drawings imply square planar geometry, which is not the case for an sp3 hybridized carbon atom
(the geometry is tetrahedral). In some rare cases, you might find a chiral center for which three of the lines
are drawn as straight lines, as in the following example:



This compound has one chiral center, and its configuration is unambiguous (and therefore acceptable),
although you will not encounter this convention often. In most cases that you will encounter in this course,
a chiral center will be drawn as two lines (making a V), and one wedge and one dash that are both outside
of the V:
