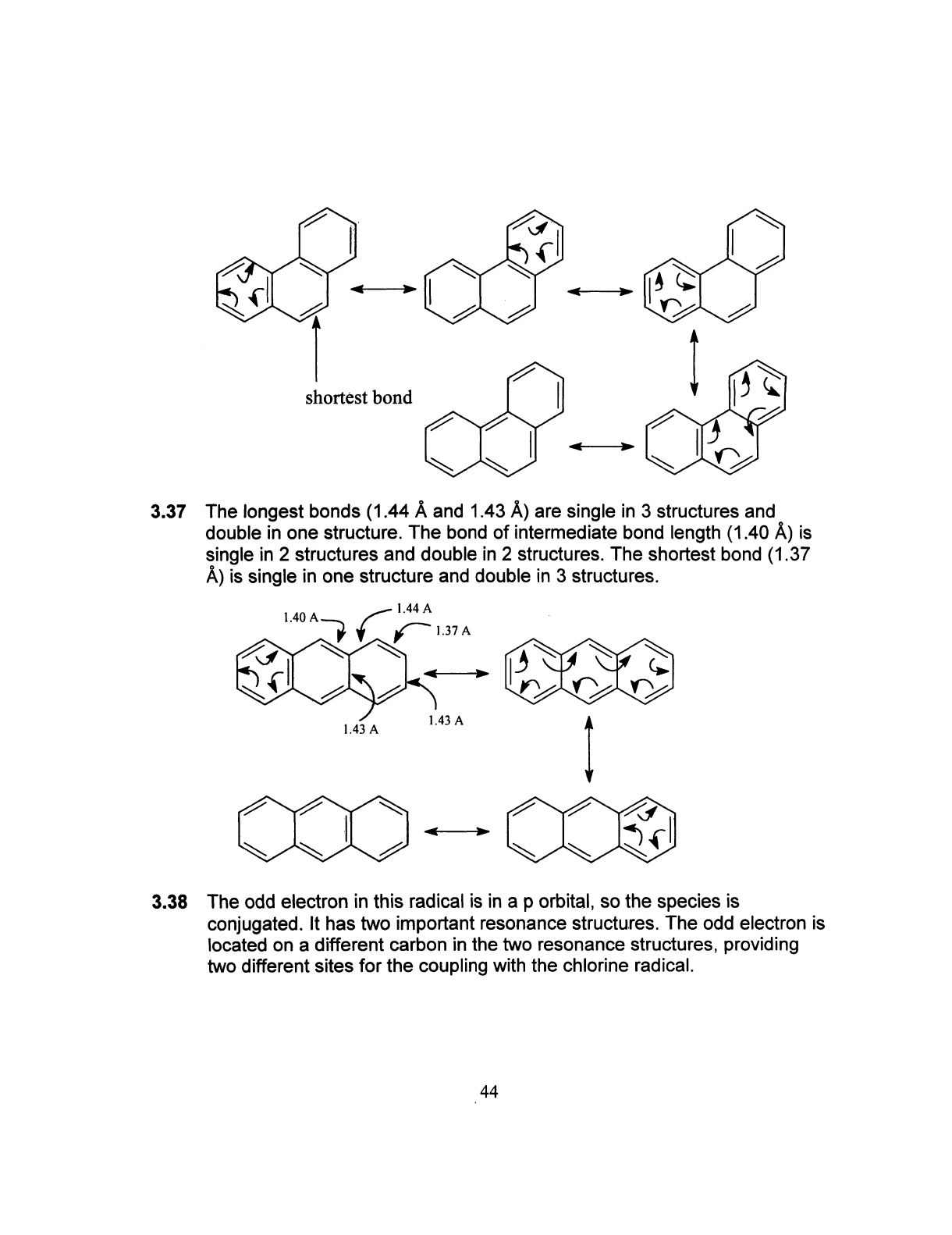

shortest bond 3.37 The longest bonds (1.44 Å and 1.43 Å) are single in 3 structures and double in one structure. The bond of intermediate bond length (1.40 Å) is single in 2 structures and double in 2 structures. The shortest bond (1.37 Å) is single in one structure and double in 3 structures. 1.44 A 1.40 A 1.37 A 1.43 A 1.43 A 3.38 The odd electron in this radical is in a p orbital, so the species is conjugated. It has two important resonance structures. The odd electron is located on a different carbon in the two resonance structures, providing two different sites for the coupling with the chlorine radical. 44
