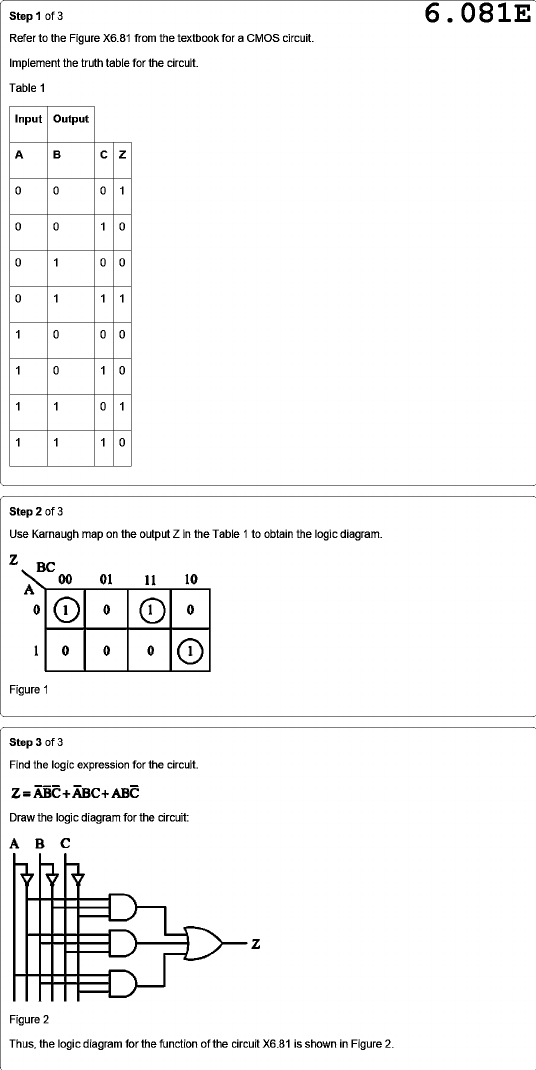

Step 1 of 3 6.081E Refer to the Figure X6.81 from the textbook for a CMOS circuit. Implement the truth table for the circuit. Table 1 Input Output A B C Z 0 0 01 0 0 1 0 0 1 0 0 0 1 1 1 1 0 0 0 1 0 1 0 1 1 01 1 1 1 0 Step 2 of 3 Use Karnaugh map on the output Z in the Table 1 to obtain the logic diagram. BC 00 01 11 10 A 0 1 0 1 0 1 000 1 Figure 1 Step 3 of 3 Find the logic expression for the circuit. Z=ABC+ABC+ABC Draw the logic diagram for the circuit: A B C z Figure 2 Thus, the logic diagram for the function of the circuit X6.81 is shown in Figure 2.
