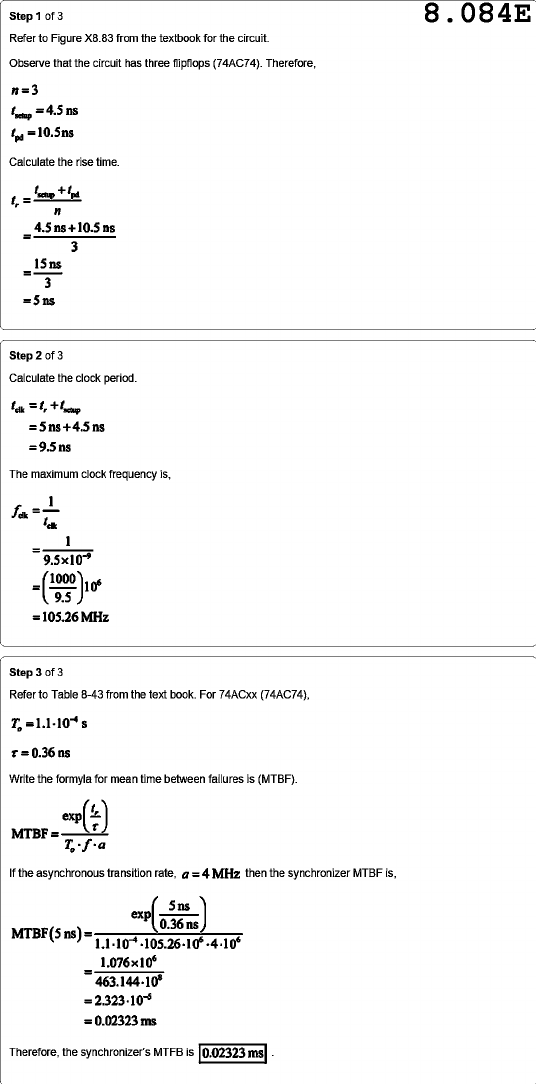

Step 1 of 3 8.084E Refer to Figure X8.83 from the textbook for the circuit. Observe that the circuit has three flipflops (74AC74). Therefore, n=3 Calculate the rise time. = Step 2 of 3 Calculate the clock period. The maximum clock frequency is, = Step 3 of 3 Refer to Table 8-43 from the text book. For 74ACxx (74AC74), Write the formyla for mean time between failures is (MTBF). If the asynchronous transition rate, then the synchronizer MTBF is, =0.02323 ms Therefore, the synchronizer's MTFB is 0.02323 ms
