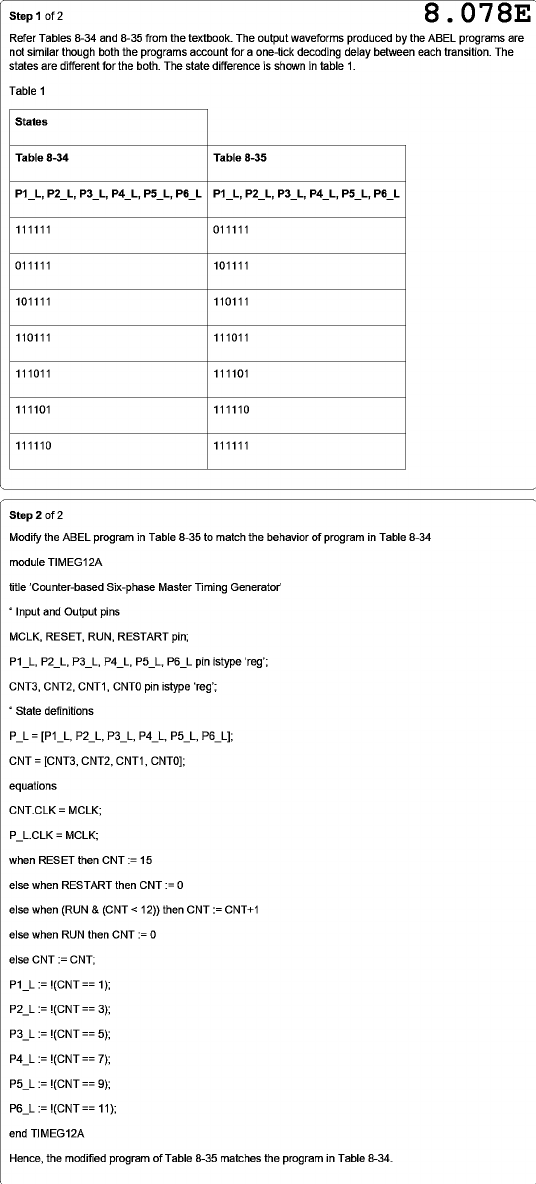

Step 1 of 2 8.078E Refer Tables 8-34 and 8-35 from the textbook. The output waveforms produced by the ABEL programs are not similar though both the programs account for a one-tick decoding delay between each transition. The states are different for the both. The state difference is shown in table 1. Table 1 States Table 8-34 Table 8-35 P1_L,P2_L,P3_L,P4_L,P5_L,P6_L 111111 011111 011111 101111 101111 110111 110111 111011 111011 111101 111101 111110 111110 111111 Step 2 of 2 Modify the ABEL program in Table 8-35 to match the behavior of program in Table 8-34 module TIMEG12A title Six-phase Master Timing 'Input and Output pins MCLK, RESET, RUN, RESTART pin; P1_L, P2_L, P3_L, P4_L, P5_L, P6_L pin istype 'reg'; CNT3, CNT2, CNT1, CNT0 pin istype 'reg'; " State definitions CNT = [CNT3, CNT2, CNT1, CNT0]; equations CNT.CLK = MCLK; P_L.CLK = MCLK; when RESET then CNT := 15 else when RESTART then CNT := 0 else when (RUN & (CNT
