CHAPTER 2 59




2.68.

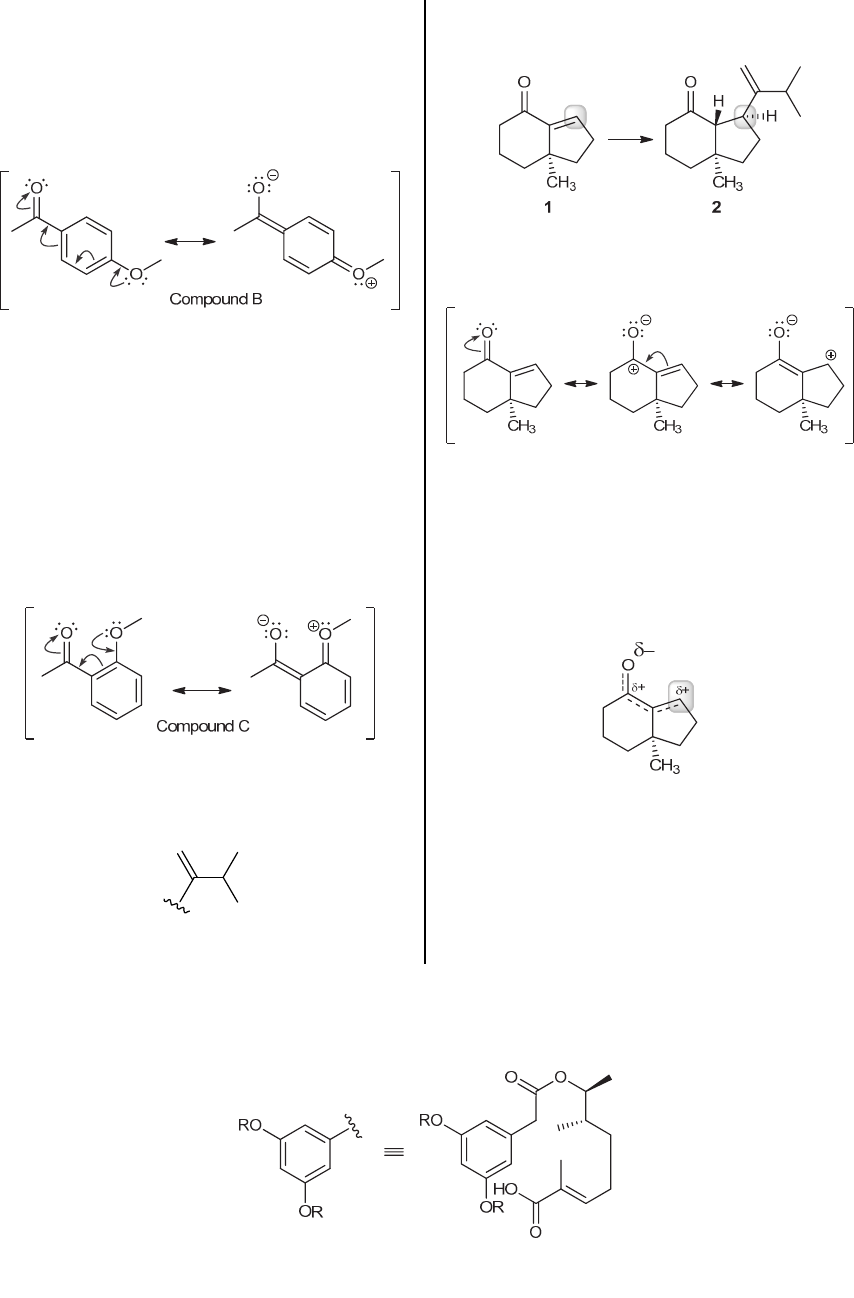

(a) Compound B has one additional resonance structure
that compound A lacks, because of the relative positions
of the two groups on the aromatic ring. Specifically,
compound B has a resonance structure in which one
oxygen atom has a negative charge and the other oxygen
atom has a positive charge:



Compound A does not have a significant resonance
structure in which one oxygen atom has a negative
charge and the other oxygen atom has a positive charge.
That is, compound A has fewer resonance structures than
compound B. Accordingly, compound B has greater
resonance stabilization.

(b) Compound C is expected to have resonance
stabilization similar to that of compound B, because
compound C also has a resonance structure in which one
oxygen atom has a negative charge and the other oxygen
atom has a positive charge:



2.69.
(a) The following group is introduced, and it contains
five carbon atoms:




(b) The following highlighted carbon atom is involved in
the reaction:



(c) Compound 1 has three significant resonance
structures, shown here:



The structure on the left is the most significant, because
every atom has an octet and it has no formal charges.
The resonance hybrid is a weighted average of these
three resonance structures. Since the partial positive
charge is delocalized onto two carbon atoms and the
partial negative charge is localized on only one oxygen
atom, the partial negative charge is drawn larger than
each of the individual partial positive charges.


(d) The reactive site has partial positive character, which
means that it is electron deficient. This is what makes it
reactive. In the actual synthesis, this compound is
treated with a carbanion (a structure containing a carbon
atom with a negative charge). The reaction causes
formation of a bond between the electron-deficient
carbon atom and the electron-rich carbon atom. We will
learn that reaction in Chapter 21.

2.70. We will need to draw two resonance hybrids, one for each of the highlighted carbon atoms. One highlighted
position is part of an aromatic ring, and we will begin by focusing on that position. In doing so, we can save time by
redrawing only the relevant portion of the molecule, like this:
