CHAPTER 5 133


Solutions

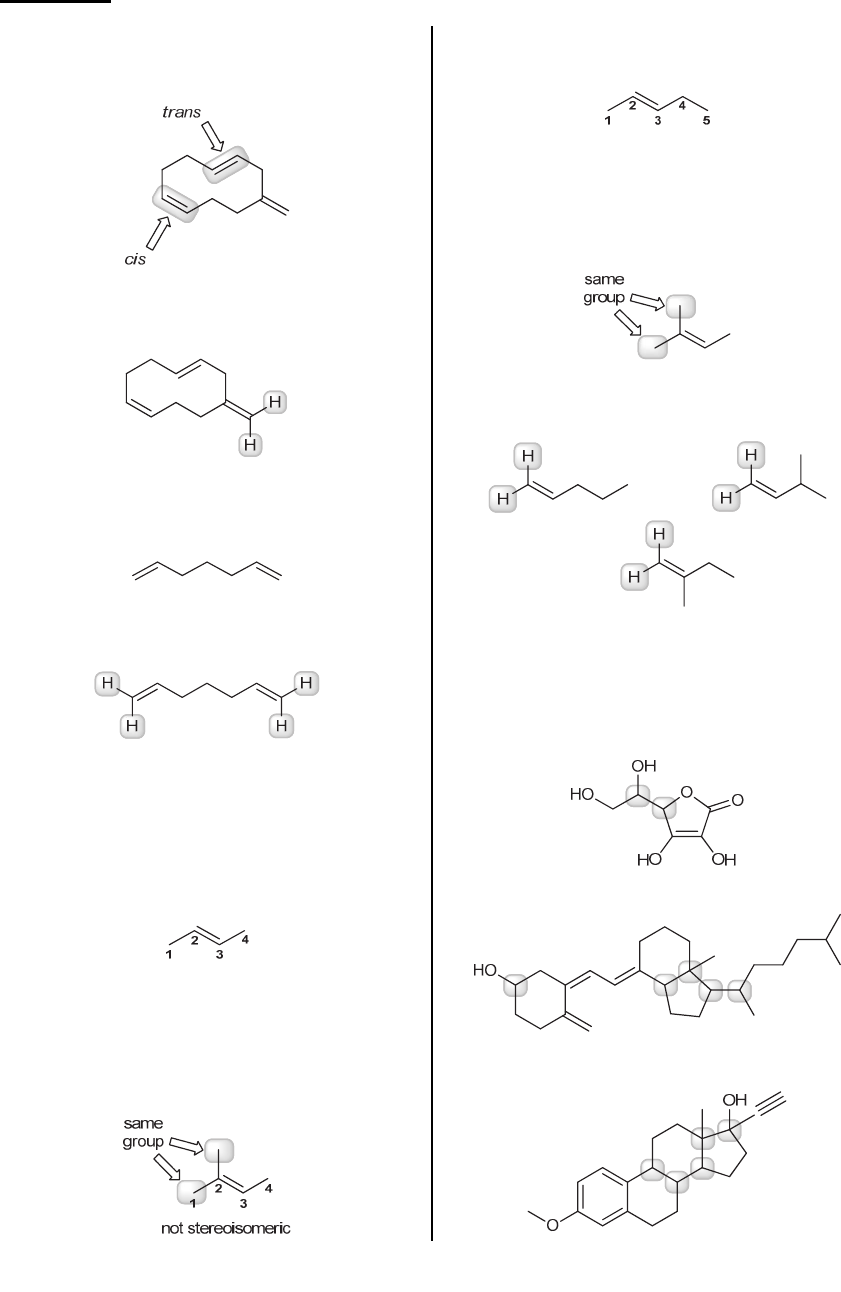

5.1.
There are two C=C units in the ring (highlighted), and
their configurations are shown below.



The remaining C=C unit is not stereoisomeric, because it
has two identical groups (hydrogen atoms) connected to
the same position.


5.2. We first draw a bond-line structure, which makes it
easier to see the groups that are connected to each of the
double bonds.



Each of the double bonds has two identical groups
(hydrogen atoms) connected to the same position.



As such, neither double bond exhibits stereoisomerism,
so this compound does not have any stereoisomers.

5.3.
(a) Compound X must contain a carbon-carbon double
bond in the trans configuration, which accounts for four
of the five carbon atoms:



Now we must decide where to place the fifth carbon
atom. We cannot attach this carbon atom to a vinylic
position (C2 or C3), as that would give a double bond
that is not stereoisomeric, and compound X is supposed
to have the trans configuration.


Therefore, we must attach the fifth carbon atom to an
allylic position, giving the following compound:



(b) Compound Y possesses a carbon-carbon double bond
that is not stereoisomeric, which means that it must
contain two identical groups connected to the same
vinylic position. Those identical groups can be methyl
groups, as in the following compound,



or the identical groups can be hydrogen atoms, as in the
following three compounds:



5.4. In each of the following cases, we ignore all sp2
hybridized carbon atoms, all sp hybridized carbon atoms,
and all CH2 and CH3 groups. We identify those carbon
atoms (highlighted below) bearing four different groups:

(a) This compound has two chiral centers:



(b) This compound has five chiral centers:


(c) This compound has five chiral centers:
