CHAPTER 8 275

withdrawing. Therefore, the  bonds in these cases are
less electron-rich than in compounds 1 or 2. The acetoxy
group of alkene 5 is expected to be a stronger electron-
withdrawing group than the methoxy group of 3 since
the carbonyl group in the former compound will enhance
the electron-withdrawing ability of the oxygen atom via
resonance. Compound 4 is interesting in that the acetoxy
oxygen atom is expected to be an electron-donating
group with respect to the alkene  bond (via resonance),
much like the oxygen atom in compound 1. From the
relative reactivity data, however, the lone pairs on the
acetoxy oxygen are apparently less efficient at donating
to the carbon-carbon  bond. This can be explained by

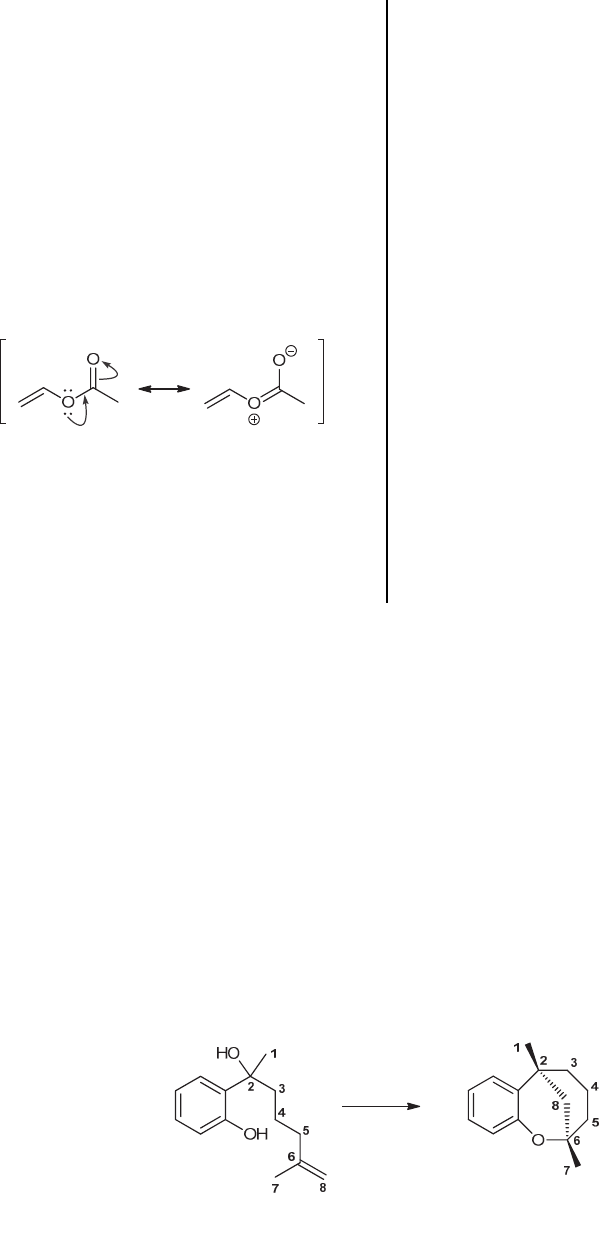

recognizing that the lone pairs on the acetoxy oxygen are
already partially delocalized into the carbonyl group:



That is, the lone pairs on the acetoxy oxygen are less
available to donate electron density to the  bond.
Therefore, the acetoxy group of 4 influences the
reactivity primarily through its inductive and steric
effects, which will be much like that of the substituents
in compounds 3 and 5.

(b) Compound 6 is apparently able to impose the
electron-withdrawing effect due to induction of the –CN
group on the alkene  bond via the shorter  bond (due
to the sp3-sp orbital overlap) between the CH2 and the
CN groups, and thus the closer proximity of the partial
positive charge to the  electrons of the alkene. This is
apparent when comparing the relative rates between
compounds 5 and 6. Here, though the oxygen atom in
compound 5 is more electronegative than carbon, the
carbon atom of the cyano group apparently possesses a
very large partial positive change that effectively renders
this carbon atom more electronegative than that of the
acetoxy oxygen atom of 5. The low reactivity associated
with compound 7 may be due to both induction and
steric effects, since the inductive withdrawal of electron
density by the chlorine atom is not expected to exceed
the substituent in compound 5.

(c) Compounds 2, 8 and 9 illustrate the consequences of
steric effects on the hydroboration reaction. Compounds
8 and 9 are the only disubstituted alkenes among the
series, and it is not surprising that they have the lowest
relative reactivity, due to increased steric effects. They
are more than 100 times lower in reactivity than
compound 2, the only monosubstituted alkene with no
significant electronic effects (i.e. resonance and
induction). In compound 9, the electron-withdrawing
effect of the chlorine atom, which is superimposed upon
the increased steric effect, further lowers the reactivity.
















8.95. When approaching this problem, it would be advisable to first label the carbon side chain coming off the benzene
ring so that you can determine what new connections have been made. Your numbering system does not need to
conform to IUPAC rules for assigning locants. Rather, it is OK to use an arbitrary numbering system, because the goal
of the numbering system is to track the fate of all atoms during the transformation:



With this numbering system, the benzene ring is attached to C2 of the chain and the phenolic oxygen is attached to C6
of the chain.
