UNC – ATIVIDADE FINAL PROGRAMAÇÃO – CAM

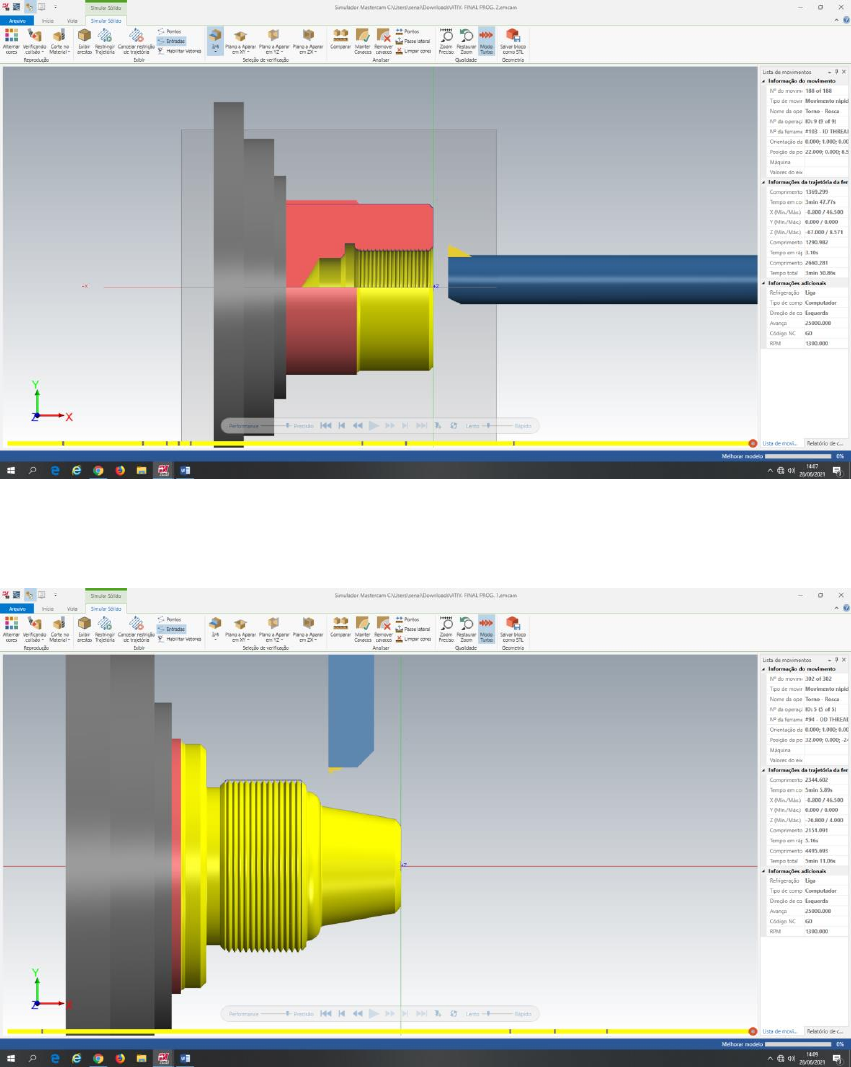

LADO 1:


LADO 2:




PLANEJAMENTO E CÁLCULOS:

- Prender o material;
- Facear;
- Usinar corpo Ø85x40mm;
- Fazer furo de centro;
- Furar com brocas: Ø10, Ø15, Ø20, Ø25 e Ø30mm;
- Usinar interno Ø37,4x45mm
- Fazer canal interno Ø45x5mm;
- Fazer chanfros internos 2x45°
- Fazer rosca interna M40x2;
- Fazer chanfro externo 2x45°;
- Virar material;
- Usinar corpo Ø85x72mm;
- Usinar corpo Ø60x68mm;
- Usinar corpo Ø52x33mm;
- Usinar corpo Ø42x28mm R5;
- Usinar corpo cônico Ø32x28mm;
- Fazer canal externo Ø55x5mm;
- Fazer rosca externa M60x2;
- Fazer chanfros 2x45°;
- Tirar rebarba.

Ø𝟖𝟓 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟖𝟓
= 𝟓𝟔𝟏
Ø𝟔𝟎 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟔𝟎
= 𝟕𝟗𝟓
Ø𝟓𝟓 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟓𝟓
= 𝟖𝟔𝟕
Ø𝟓𝟐 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟓𝟐
= 𝟗𝟏𝟕
Ø𝟒𝟓 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟒𝟓
= 𝟏𝟎𝟔𝟎
Ø𝟒𝟐 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟒𝟐
= 𝟏𝟏𝟑𝟓
Ø𝟑𝟕, 𝟒 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟑𝟕, 𝟒
= 𝟏𝟐𝟕𝟓
Ø𝟑𝟐 →
𝟏𝟓𝟎𝒙𝟑𝟏𝟖
𝟑𝟐
= 𝟏𝟒𝟗𝟎
Ø𝟑, 𝟏𝟓 = 𝟐𝟕𝟎𝟎
Ø𝟏𝟎 = 𝟕𝟗𝟓
Ø𝟏𝟓 = 𝟓𝟑𝟎
Ø𝟐𝟎 = 𝟑𝟗𝟖
Ø𝟐𝟓 = 𝟑𝟏𝟓
Ø𝟑𝟎 = 𝟐𝟔𝟓
𝑹𝒐𝒔𝒄𝒂𝒔 = 𝟏𝟕𝟕

FERRAMENTAS E PASTILHAS:
DESB. EXT.: MWLNR 2020M 08; CNMG 12 04 08
ACAB. EXT.: MVJNR 2020M 16; VNMG 16 04 08
DESB. INT.: S16R-SCLCR 09; CCMT 09 T3 04
ACAB. INT.: S16R-SCLCR 09; DCMT 11 T3 04
CANAL INT.: RF151.22-2020-25; N151.2-400-40-5G
ROSCA INT.: R166.4KF-20-16; R166.0L-16MM02-200
CANAL EXT.: RF151.22-2020-50; N151.2-300-30-3G
ROSCA EXT.: R166.4FG-2020-16; R166.0G-16MM02-200

PROGRAMAÇÃO (FANUC):
LADO 1:
%
O0000 ( ATIV. FINAL PROG. 2 )
N100 G53 G0 X300. Z150. T00
N110 G54
N120 T0101(OD ROUGH RIGHT - 80 DEG.)
N130 G96 S300 M03
N140 G92 S3600
N150 G0 X93. Z1.5 M7
N160 G1 X-1.6 F.15
N170 G0 Z3.5
N180 X93.
N190 Z1.
N200 G1 X-1.6
N210 G0 Z3.
N220 X93.
N230 Z.5
N240 G1 X-1.6
N250 G0 Z2.5
N260 X93.
N270 Z0.
N280 G1 X-1.6
N290 G0 Z2.
N300 X84.452
N310 Z4.
N320 G1 Z2. F.3
N330 Z-1.57
N340 X85.356 Z-2.022
N350 G3 X86. Z-2.8 R1.1
N360 G1 Z-38.8
N370 X88.828 Z-37.386
N380 G0 Z4.
N390 X82.904
N400 G1 Z2.
N410 Z-.796
N420 X84.852 Z-1.77
N430 X87.68 Z-.356
N440 G0 Z4.
N450 X81.356
N460 G1 Z2.
N470 Z-.022
N480 X83.304 Z-.996
N490 X86.132 Z.418
N500 M9
N510 G53 G0 X300. Z150. T00
N520 T2121(OD FINISH RIGHT - 35 DEG.)
N530 G96 S400
N540 G92 S3600
N550 G0 X80.531 Z1.766 M7
N560 G1 Z-.234 F.15
N570 X84.531 Z-2.234
N580 G3 X85. Z-2.8 R.8
N590 G1 Z-38.
N600 X87.828 Z-36.586
N610 M9
N620 G53 G0 X300. Z150. T00
N630 T11615(CENTER DRILL - 6. DIA.)
N640 G97 S3000 M03
N650 G0 X0. Z2. M7
N660 G1 Z-6.3 F.15
N670 G0 Z2.
N680 M9
N690 G53 G0 X300. Z150. T00
N700 T12928(DRILL 30. DIA.)
N710 G97 S480 M03
N720 G0 X0. Z2. M7
N730 G1 Z-67. F.15
N740 G0 Z2.
N750 M9
N760 G53 G0 X300. Z150. T00
N770 T7171(ID ROUGH MIN. 16. DIA. - 80 DEG.)
N780 G96 S300
N790 G92 S3600
N800 G0 X31.802 Z4. M7
N810 G1 Z2. F.3
N820 Z-45.709
N830 X30. Z-46.61
N840 X27.172 Z-45.196
N850 G0 Z4.
N860 X33.603
N870 G1 Z2.
N880 Z-44.824
N890 G2 X33.41 Z-44.905 R.7
N900 G1 X31.402 Z-45.909
N910 X28.573 Z-44.495
N920 G0 Z4.
N930 X35.405
N940 G1 Z2.
N950 Z-44.7
N960 X34.4
N970 G2 X33.41 Z-44.905 R.7
N980 G1 X33.203 Z-45.008
N990 X30.375 Z-43.594
N1000 G0 Z4.
N1010 X37.207
N1020 G1 Z2.
N1030 Z-1.707
N1040 X36.81 Z-1.905
N1050 G2 X36.4 Z-2.4 R.7
N1060 G1 Z-38.4
N1070 Z-44.7
N1080 X35.005
N1090 X32.177 Z-43.286
N1100 G0 Z4.
N1110 X39.008
N1120 G1 Z2.
N1130 Z-.806
N1140 X36.81 Z-1.905
N1150 X36.807 Z-1.907
N1160 X33.978 Z-.492
N1170 G0 Z3.509
N1180 X43.638
N1190 G1 Z1.509
N1200 X38.608 Z-1.006
N1210 X35.78 Z.408
N1220 G0 Z1.25
N1230 M9
N1240 G53 G0 X300. Z150. T00
N1250 T8181(ID FINISH 16. DIA. - 55 DEG.)
N1260 G96 S400
N1270 G92 S3600
N1280 G0 X41.634 Z1.883 M7
N1290 G1 Z-.117 F.15
N1300 X37.634 Z-2.117
N1310 G2 X37.4 Z-2.4 R.4
N1320 G1 Z-38.4
N1330 Z-45.
N1340 X34.8
N1350 G2 X34.234 Z-45.117 R.4
N1360 G1 X30.234 Z-47.117
N1370 X27.406 Z-45.703
N1380 G0 Z1.25
N1390 M9
N1400 G53 G0 X300. Z150. T00
N1410 T5252(ID GROOVE MIN. 12. DIA.)
N1420 G96 S250
N1430 G92 S3600
N1440 G0 X30. Z1.25 M7
N1450 Z-42.854
N1460 G1 X40.693 F.05
N1470 G0 X30.
N1480 Z-43.2
N1490 G1 X44.4 F.08
N1500 G0 X30.
N1510 Z-44.8
N1520 G1 X44.4
N1530 G0 X30.
N1540 G97 S350
N1550 Z-46.414
N1560 X31.172
N1570 G1 X34. Z-45. F.05
N1580 X45.
N1590 Z-43.
N1600 X42.
N1610 G3 X41.687 Z-42.956 R.3
N1620 G1 X41.387 Z-43.106
N1630 G0 X34.
N1640 Z-39.498
N1650 X34.747
N1660 G1 X37.576 Z-40.912
N1670 X41.576 Z-42.912
N1680 G2 X41.687 Z-42.956 R.3
N1690 G1 X41.387 Z-43.106
N1700 G0 X31.172
N1710 Z1.25
N1720 M9
N1730 G53 G0 X300. Z150. T00
N1740 T10403(ID THREAD MIN. 40. DIA.)
N1750 G97 S1300 M03
N1760 G0 X44. Z8.571 M7
N1770 Z8.264
N1780 G76 P010029 Q5. R0.
N1790 G76 X37.4 Z-43. P1300 Q317 F2.
N1800 M9
N1810 G53 G0 X300. Z150. T00
N1820 M30
(X@FAN0i-TB 150606)



LADO 2:
%
O0000 ( ATIV. FINAL PROG. 1 )
N5 G53 G0 X300. Z150. T00
N10 G54
N15 T0101(OD ROUGH RIGHT - 80 DEG.)
N20 G96 S300 M03
N25 G92 S3600
N30 G0 X93. Z1.5 M7
N35 G1 X-1.6 F.15
N40 G0 Z3.5
N45 X93.
N50 Z1.
N55 G1 X-1.6
N60 G0 Z3.
N65 X93.
N70 Z.5
N75 G1 X-1.6
N80 G0 Z2.5
N85 X93.
N90 Z0.
N95 G1 X-1.6
N100 G0 Z2.
N105 X84.007
N110 Z4.
N115 G1 Z2. F.3
N120 Z-69.348
N125 X85.356 Z-70.022
N130 G3 X86. Z-70.8 R1.1
N135 G1 Z-76.8
N140 X88.828 Z-75.386
N145 G0 Z4.
N150 X82.015
N155 G1 Z2.
N160 Z-68.352
N165 X84.407 Z-69.548
N170 X87.236 Z-68.134
N175 G0 Z4.
N180 X80.022
N185 G1 Z2.
N190 Z-67.706
N195 G3 X81.356 Z-68.022 R1.1
N200 G1 X82.415 Z-68.552
N205 X85.243 Z-67.137
N210 G0 Z4.
N215 X78.029
N220 G1 Z2.
N225 Z-67.7
N230 X79.8
N235 G3 X80.422 Z-67.745 R1.1
N240 G1 X83.25 Z-66.331
N245 G0 Z4.
N250 X76.037
N255 G1 Z2.
N260 Z-67.7
N265 X78.429
N270 X81.258 Z-66.286
N275 G0 Z4.
N280 X74.044
N285 G1 Z2.
N290 Z-67.7
N295 X76.437
N300 X79.265 Z-66.286
N305 G0 Z4.
N310 X72.051
N315 G1 Z2.
N320 Z-67.7
N325 X74.444
N330 X77.272 Z-66.286
N335 G0 Z4.
N340 X70.059
N345 G1 Z2.
N350 Z-67.7
N355 X72.451
N360 X75.28 Z-66.286
N365 G0 Z4.
N370 X68.066
N375 G1 Z2.
N380 Z-67.7
N385 X70.459
N390 X73.287 Z-66.286
N395 G0 Z4.
N400 X66.073
N405 G1 Z2.
N410 Z-67.7
N415 X68.466
N420 X71.294 Z-66.286
N425 G0 Z4.
N430 X64.081
N435 G1 Z2.
N440 Z-67.7
N445 X66.473
N450 X69.302 Z-66.286
N455 G0 Z4.
N460 X62.088
N465 G1 Z2.
N470 Z-67.7
N475 X64.481
N480 X67.309 Z-66.286
N485 G0 Z4.
N490 X60.095
N495 G1 Z2.
N500 Z-34.892
N505 X60.356 Z-35.022
N510 G3 X61. Z-35.8 R1.1
N515 G1 Z-61.8
N520 Z-67.7
N525 X62.488
N530 X65.316 Z-66.286
N535 G0 Z4.
N540 X58.102
N545 G1 Z2.
N550 Z-33.896
N555 X60.356 Z-35.022
N560 G3 X60.495 Z-35.099 R1.1
N565 G1 X63.324 Z-33.685
N570 G0 Z4.
N575 X56.11
N580 G1 Z2.
N585 Z-32.916
N590 G3 X56.356 Z-33.022 R1.1
N595 G1 X58.502 Z-34.096
N600 X61.331 Z-32.681
N605 G0 Z4.
N610 X54.117
N615 G1 Z2.
N620 Z-32.7
N625 X54.8
N630 G3 X56.356 Z-33.022 R1.1
N635 G1 X56.51 Z-33.099
N640 X59.338 Z-31.685
N645 G0 Z4.
N650 X52.124
N655 G1 Z2.
N660 Z-31.531
N665 G3 X52.8 Z-32.7 R6.1
N670 G1 X54.517
N675 X57.346 Z-31.286
N680 G0 Z4.
N685 X50.132
N690 G1 Z2.
N695 Z-29.871
N700 G3 X52.524 Z-32.114 R6.1
N705 G1 X55.353 Z-30.699
N710 G0 Z4.
N715 X48.139
N720 G1 Z2.
N725 Z-28.927
N730 G3 X50.532 Z-30.122 R6.1
N735 G1 X53.36 Z-28.707
N740 G0 Z4.
N745 X46.146
N750 G1 Z2.
N755 Z-28.317
N760 G3 X48.539 Z-29.084 R6.1
N765 G1 X51.368 Z-27.67
N770 G0 Z4.
N775 X44.154
N780 G1 Z2.
N785 Z-27.935
N790 G3 X46.546 Z-28.419 R6.1
N795 G1 X49.375 Z-27.005
N800 G0Z4.
N805 X42.161
N810 G1 Z2.
N815 Z-26.354
N820 X42.668 Z-27.772
N825 G3 X44.554 Z-27.996 R6.1
N830 G1 X47.382 Z-26.582
N835 G0 Z4.
N840 X40.168
N845 G1 Z2.
N850 Z-20.774
N855 X42.561 Z-27.474
N860 X45.389 Z-26.059
N865 G0 Z4.
N870 X38.176
N875 G1 Z2.
N880 Z-15.195
N885 X40.568 Z-21.894
N890 X43.397 Z-20.48
N895 G0 Z4.
N900 X36.183
N905 G1 Z2.
N910 Z-9.615
N915 X38.576 Z-16.315
N920 X41.404 Z-14.9
N925 G0 Z4.
N930 X34.19
N935 G1 Z2.
N940 Z-4.035
N945 X36.583 Z-10.735
N950 X39.411 Z-9.321
N955 G0 Z4.
N960 X32.198
N965 G1 Z2.
N970 Z-1.625
N975 X32.915 Z-1.925
N980 G3 X33.669 Z-2.575 R1.1
N985 G1 X34.59 Z-5.155
N990 X37.419 Z-3.741
N995 G0 Z4.
N1000 X30.205
N1005 G1 Z2.
N1010 Z-.791
N1015 X32.598 Z-1.792
N1020 X35.426 Z-.378
N1025 G0 Z3.327
N1030 X25.145
N1035 G1 Z1.327
N1040 X30.605 Z-.958
N1045 X33.433 Z.456
N1050 M9
N1055 G53 G0 X300. Z150. T00
N1060 T1212(OD RIGHT 55 DEG)
N1065 G96 S400
N1070 G92 S3600
N1075 G0 X27.427 Z1.813 M7
N1080 G1 Z-.187 F.15
N1085 X32.13 Z-2.155
N1090 G3 X32.678 Z-2.628 R.8
N1095 G1 X41.754 Z-28.04
N1100 G3 X51.889 Z-33. R5.8
N1105 G1 X54.4
N1110 G3 X55.531 Z-33.234 R.8
N1115 G1 X59.531 Z-35.234
N1120 G3 X60. Z-35.8 R.8
N1125 G1 Z-61.8
N1130 Z-68.
N1135 X79.4
N1140 G3 X80.531 Z-68.234 R.8
N1145 G1 X84.531 Z-70.234
N1150 G3 X85. Z-70.8 R.8
N1155 G1 Z-76.
N1160 X87.828 Z-74.586
N1165 M9
N1170 G53 G0 X300. Z150. T00
N1175 T4848(OD GROOVE RIGHT - MEDIUM)
N1180 G96 S250
N1185 G92 S3600
N1190 G0 X85. Z-65.854 M7
N1195 G1 X56.707 F.05
N1200 G0 X85.
N1205 Z-67.8
N1210 G1 X55.6 F.08
N1215 G0 X85.
N1220 G96 S350
N1225 Z-62.498
N1230 X62.653
N1235 G1 X59.824 Z-63.912 F.05
N1240 X55.824 Z-65.912
N1245 G3 X55.713 Z-65.956 R.3
N1250 G1 X56.013 Z-66.106
N1255 G0 X83.828
N1260 Z-69.414
N1265 G1 X81. Z-68.
N1270 X55.
N1275 Z-66.
N1280 X55.4
N1285 G2 X55.713 Z-65.956 R.3
N1290 G1 X56.013 Z-66.106
N1295 G0 X81.
N1300 M9
N1305 G53 G0 X300. Z150. T00
N1310 T9494(OD THREAD RIGHT- SMALL)
N1315 G97 S1300 M03
N1320 G0 X64. Z-24.429 M7
N1325 Z-24.736
N1330 G76 P010029 Q5. R0.
N1335 G76 X57.4 Z-65. P1300 Q317 F2.
N1340 M9
N1345 G53 G0 X300. Z150. T00
N1350 M30
(X@FAN0i-TB 150606)

PROGRAMAÇÃO (SIEMENS):
LADO 1:
;ATIV. FINAL PROG. 2 (SIEMENS)_MPF
N100 G53 G00 X300. Z150. D00
N101 G54
N102 T01 D01
N103 G96 S300. M3 M41
N104 LIMS=5000
N105 G0 X93. Z1.5 M8
N106 G1 X-1.6 F0.15
N107 G0 Z3.5
N108 G0 X93.
N109 G0 Z1.
N110 G1 X-1.6
N111 G0 Z3.
N112 G0 X93.
N113 G0 Z.5
N114 G1 X-1.6
N115 G0 Z2.5
N116 G0 X93.
N117 G0 Z0.
N118 G1 X-1.6
N119 G0 Z2.
N120 G0 X84.452
N121 G0 Z4.
N122 G1 Z2. F0.3
N123 G1 Z-1.57
N124 G1 X85.356 Z-2.022
N125 G3 X86. Z-2.8 CR=1.1
N126 G1 Z-38.8
N127 G1 X88.828 Z-37.386
N128 G0 Z4.
N129 G0 X82.904
N130 G1 Z2.
N131 G1 Z-.796
N132 G1 X84.852 Z-1.77
N133 G1 X87.68 Z-.356
N134 G0 Z4.
N135 G0 X81.356
N136 G1 Z2.
N137 G1 Z-.022
N138 G1 X83.304 Z-.996
N139 G1 X86.132 Z.418
N140 G53 G00 X300. Z150. D00
N141 T21 D01
N142 G96 S400. M3 M41
N143 G0 X80.531 Z1.766
N144 G1 Z-.234 F0.15
N145 G1 X84.531 Z-2.234
N146 G3 X85. Z-2.8 CR=.8
N147 G1 Z-38.
N148 G1 X87.828 Z-36.586
N149 G53 G00 X300. Z150. D00
N150 T115 D01
N151 G97 S3000. M3
N152 G0 X0. Z2.
N153 F0.15
N154 CYCLE81 (2000,0,2000,-6300)
N155 G53 G00 X300. Z150. D00
N156 T128 D01
N157 G97 S480. M3
N158 G0 X0. Z2.
N159 F0.15
N160 CYCLE81 (2000,0,2000,-67000)
N161 G53 G00 X300. Z150. D00
N162 T71 D01
N163 G96 S300. M3 M41
N164 G0 X31.802 Z4.
N165 G1 Z2. F0.3
N166 G1 Z-45.709
N167 G1 X30. Z-46.61
N168 G1 X27.172 Z-45.196
N169 G0 Z4.
N170 G0 X33.603
N171 G1 Z2.
N172 G1 Z-44.824
N173 G2 X33.41 Z-44.905 CR=.7
N174 G1 X31.402 Z-45.909
N175 G1 X28.573 Z-44.495
N176 G0 Z4.
N177 G0 X35.405
N178 G1 Z2.
N179 G1 Z-44.7
N180 G1 X34.4
N181 G2 X33.41 Z-44.905 CR=.7
N182 G1 X33.203 Z-45.008
N183 G1 X30.375 Z-43.594
N184 G0 Z4.
N185 G0 X37.207
N186 G1 Z2.
N187 G1 Z-1.707
N188 G1 X36.81 Z-1.905
N189 G2 X36.4 Z-2.4 CR=.7
N190 G1 Z-38.4
N191 G1 Z-44.7
N192 G1 X35.005
N193 G1 X32.177 Z-43.286
N194 G0 Z4.
N195 G0 X39.008
N196 G1 Z2.
N197 G1 Z-.806
N198 G1 X36.81 Z-1.905
N199 G1 X36.807 Z-1.907
N200 G1 X33.978 Z-.492
N201 G0 Z3.509
N202 G0 X43.638
N203 G1 Z1.509
N204 G1 X38.608 Z-1.006
N205 G1 X35.78 Z.408
N206 G0 Z1.25
N207 G53 G00 X300. Z150. D00
N208 T81 D01
N209 G96 S400. M3 M41
N210 G0 X41.634 Z1.883
N211 G1 Z-.117 F0.15
N212 G1 X37.634 Z-2.117
N213 G2 X37.4 Z-2.4 CR=.4
N214 G1 Z-38.4
N215 G1 Z-45.
N216 G1 X34.8
N217 G2 X34.234 Z-45.117 CR=.4
N218 G1 X30.234 Z-47.117
N219 G1 X27.406 Z-45.703
N220 G0 Z1.25
N221 G53 G00 X300. Z150. D00
N222 T52 D01
N223 G96 S250. M3 M41
N224 G0 X30. Z1.25
N225 G0 Z-42.854
N226 G1 X40.693 F0.05
N227 G0 X30.
N228 G0 Z-43.2
N229 G1 X44.4 F0.08
N230 G0 X30.
N231 G0 Z-44.8
N232 G1 X44.4
N233 G0 X30.
N234 G0 Z-46.414
N235 G0 X31.172
N236 G1 X34. Z-45. F0.05
N237 G1 X45.
N238 G1 Z-43.
N239 G1 X42.
N240 G3 X41.687 Z-42.956 CR=.3
N241 G1 X41.387 Z-43.106
N242 G0 X34.
N243 G0 Z-39.498
N244 G0 X34.747
N245 G1 X37.576 Z-40.912
N246 G1 X41.576 Z-42.912
N247 G2 X41.687 Z-42.956 CR=.3
N248 G1 X41.387 Z-43.106
N249 G0 X31.172
N250 G0 Z1.25
N251 G53 G00 X300. Z150. D00
N252 T103 D01
N253 G97 S1300. M3
N254 G97 S1300. M3
N255 G0 X50. Z8.
N256 X37.4
N257 CYCLE97 (2.,0,-2.,-
43.,37.4,37.4,4.,2.,1.3,0.02,29.,0,10.,1.,1.,1.)
N258 G53 G00 X300. Z150. D00
N259 M30
; (ATUALIZADO POR CARLOS_101-30/05/06)

LADO 2:
;ATIV. FINAL PROG. 1 (SIEMENS)_MPF
N100 G53 G00 X300. Z150. D00
N101 G54
N102 T01 D01
N103 G96 S300. M3 M41
N104 LIMS=5000
N105 G0 X93. Z1.5 M8
N106 G1 X-1.6 F0.15
N107 G0 Z3.5
N108 G0 X93.
N109 G0 Z1.
N110 G1 X-1.6
N111 G0 Z3.
N112 G0 X93.
N113 G0 Z.5
N114 G1 X-1.6
N115 G0 Z2.5
N116 G0 X93.
N117 G0 Z0.
N118 G1 X-1.6
N119 G0 Z2.
N120 G0 X84.007
N121 G0 Z4.
N122 G1 Z2. F0.3
N123 G1 Z-69.348
N124 G1 X85.356 Z-70.022
N125 G3 X86. Z-70.8 CR=1.1
N126 G1 Z-76.8
N127 G1 X88.828 Z-75.386
N128 G0 Z4.
N129 G0 X82.015
N130 G1 Z2.
N131 G1 Z-68.352
N132 G1 X84.407 Z-69.548
N133 G1 X87.236 Z-68.134
N134 G0 Z4.
N135 G0 X80.022
N136 G1 Z2.
N137 G1 Z-67.706
N138 G3 X81.356 Z-68.022 CR=1.1
N139 G1 X82.415 Z-68.552
N140 G1 X85.243 Z-67.137
N141 G0 Z4.
N142 G0 X78.029
N143 G1 Z2.
N144 G1 Z-67.7
N145 G1 X79.8
N146 G3 X80.422 Z-67.745 CR=1.1
N147 G1 X83.25 Z-66.331
N148 G0 Z4.
N149 G0 X76.037
N150 G1 Z2.
N151 G1 Z-67.7
N152 G1 X78.429
N153 G1 X81.258 Z-66.286
N154 G0 Z4.
N155 G0 X74.044
N156 G1 Z2.
N157 G1 Z-67.7
N158 G1 X76.437
N159 G1 X79.265 Z-66.286
N160 G0 Z4.
N161 G0 X72.051
N162 G1 Z2.
N163 G1 Z-67.7
N164 G1 X74.444
N165 G1 X77.272 Z-66.286
N166 G0 Z4.
N167 G0 X70.059
N168 G1 Z2.
N169 G1 Z-67.7
N170 G1 X72.451
N171 G1 X75.28 Z-66.286
N172 G0 Z4.
N173 G0 X68.066
N174 G1 Z2.
N175 G1 Z-67.7
N176 G1 X70.459
N177 G1 X73.287 Z-66.286
N178 G0 Z4.
N179 G0 X66.073
N180 G1 Z2.
N181 G1 Z-67.7
N182 G1 X68.466
N183 G1 X71.294 Z-66.286
N184 G0 Z4.
N185 G0 X64.081
N186 G1 Z2.
N187 G1 Z-67.7
N188 G1 X66.473
N189 G1 X69.302 Z-66.286
N190 G0 Z4.
N191 G0 X62.088
N192 G1 Z2.
N193 G1 Z-67.7
N194 G1 X64.481
N195 G1 X67.309 Z-66.286
N196 G0 Z4.
N197 G0 X60.095
N198 G1 Z2.
N199 G1 Z-34.892
N200 G1 X60.356 Z-35.022
N201 G3 X61. Z-35.8 CR=1.1
N202 G1 Z-61.8
N203 G1 Z-67.7
N204 G1 X62.488
N205 G1 X65.316 Z-66.286
N206 G0 Z4.
N207 G0 X58.102
N208 G1 Z2.
N209 G1 Z-33.896
N210 G1 X60.356 Z-35.022
N211 G3 X60.495 Z-35.099 CR=1.1
N212 G1 X63.324 Z-33.685
N213 G0 Z4.
N214 G0 X56.11
N215 G1 Z2.
N216 G1Z-32.916
N217 G3 X56.356 Z-33.022 CR=1.1
N218 G1 X58.502 Z-34.096
N219 G1 X61.331 Z-32.681
N220 G0 Z4.
N221 G0 X54.117
N222 G1 Z2.
N223 G1 Z-32.7
N224 G1 X54.8
N225 G3 X56.356 Z-33.022 CR=1.1
N226 G1 X56.51 Z-33.099
N227 G1 X59.338 Z-31.685
N228 G0 Z4.
N229 G0 X52.124
N230 G1 Z2.
N231 G1 Z-31.531
N232 G3 X52.8 Z-32.7 CR=6.1
N233 G1 X54.517
N234 G1 X57.346 Z-31.286
N235 G0 Z4.
N236 G0 X50.132
N237 G1 Z2.
N238 G1 Z-29.871
N239 G3 X52.524 Z-32.114 CR=6.1
N240 G1 X55.353 Z-30.699
N241 G0 Z4.
N242 G0 X48.139
N243 G1 Z2.
N244 G1 Z-28.927
N245 G3 X50.532 Z-30.122 CR=6.1
N246 G1 X53.36 Z-28.707
N247 G0 Z4.
N248 G0 X46.146
N249 G1 Z2.
N250 G1 Z-28.317
N251 G3 X48.539 Z-29.084 CR=6.1
N252 G1 X51.368 Z-27.67
N253 G0 Z4.
N254 G0 X44.154
N255 G1 Z2.
N256 G1 Z-27.935
N257 G3 X46.546 Z-28.419 CR=6.1
N258 G1 X49.375 Z-27.005
N259 G0 Z4.
N260 G0 X42.161
N261 G1 Z2.
N262 G1 Z-26.354
N263 G1 X42.668 Z-27.772
N264 G3 X44.554 Z-27.996 CR=6.1
N265 G1 X47.382 Z-26.582
N266 G0 Z4.
N267 G0 X40.168
N268 G1 Z2.
N269 G1 Z-20.774
N270 G1 X42.561 Z-27.474
N271 G1 X45.389 Z-26.059
N272 G0 Z4.
N273 G0 X38.176
N274 G1 Z2.
N275 G1 Z-15.195
N276 G1 X40.568 Z-21.894
N277 G1 X43.397 Z-20.48
N278 G0 Z4.
N279 G0 X36.183
N280 G1 Z2.
N281 G1 Z-9.615
N282 G1 X38.576 Z-16.315
N283 G1 X41.404 Z-14.9
N284 G0 Z4.
N285 G0 X34.19
N286 G1 Z2.
N287 G1 Z-4.035
N288 G1 X36.583 Z-10.735
N289 G1 X39.411 Z-9.321
N290 G0 Z4.
N291 G0 X32.198
N292 G1 Z2.
N293 G1 Z-1.625
N294 G1 X32.915 Z-1.925
N295 G3 X33.669 Z-2.575 CR=1.1
N296 G1 X34.59 Z-5.155
N297 G1 X37.419 Z-3.741
N298 G0 Z4.
N299 G0 X30.205
N300 G1 Z2.
N301 G1 Z-.791
N302 G1 X32.598 Z-1.792
N303 G1 X35.426 Z-.378
N304 G0 Z3.327
N305 G0 X25.145
N306 G1 Z1.327
N307 G1 X30.605 Z-.958
N308 G1 X33.433 Z.456
N309 G53 G00 X300. Z150. D00
N310 T12 D01
N311 G96 S400. M3 M41
N312 G0 X27.427 Z1.813
N313 G1 Z-.187 F0.15
N314 G1 X32.13 Z-2.155
N315 G3 X32.678 Z-2.628 CR=.8
N316 G1 X41.754 Z-28.04
N317 G3 X51.889 Z-33. CR=5.8
N318 G1 X54.4
N319 G3 X55.531 Z-33.234 CR=.8
N320 G1 X59.531 Z-35.234
N321 G3 X60. Z-35.8 CR=.8
N322 G1 Z-61.8
N323 G1 Z-68.
N324 G1 X79.4
N325 G3 X80.531 Z-68.234 CR=.8
N326 G1 X84.531 Z-70.234
N327 G3 X85. Z-70.8 CR=.8
N328 G1 Z-76.
N329 G1 X87.828 Z-74.586
N330 G53 G00 X300. Z150. D00
N331 T48 D01
N332 G96 S250. M3 M41
N333 G0 X85. Z-65.854
N334 G1 X56.707 F0.05
N335 G0 X85.
N336 G0 Z-67.8
N337 G1 X55.6 F0.08
N338 G0 X85.
N339 G0 Z-62.498
N340 G0 X62.653
N341 G1 X59.824 Z-63.912 F0.05
N342 G1 X55.824 Z-65.912
N343 G3 X55.713 Z-65.956 CR=.3
N344 G1 X56.013 Z-66.106
N345 G0 X83.828
N346 G0 Z-69.414
N347 G1 X81. Z-68.
N348 G1 X55.
N349 G1 Z-66.
N350 G1 X55.4
N351 G2 X55.713 Z-65.956 CR=.3
N352 G1 X56.013 Z-66.106
N353 G0 X81.
N354 G53 G00 X300. Z150. D00
N355 T94 D01
N356 G97 S1300. M3
N357 G97 S1300. M3
N358 G0 X70. Z-25.
N359 X57.4
N360 CYCLE97 (2.,0,-35.,-
65.,57.4,57.4,4.,2.,1.3,0.02,29.,0,10.,1.,1.,1.)
N361 G53 G00 X300. Z150. D00
N362 M30
; (ATUALIZADO POR CARLOS_101-30/05/06)
