Commissioning & Operational Readiness – a standardized assessment methodology





Abstract: Considering the value of a one-day delay in achieving a
project’s in-service date, this is a significant business risk to manage.
The Commissioning & Operational Readiness Assessment is a
standardized assessment methodology that helps improve schedule
performance by enabling organizations to ensure transition
readiness through each phase of commissioning and startup.
The transition from construction to operation is the commissioning
and startup.
Correct commissioning is vital to the satisfactory operation of any
plant or facility, and it is essential that sufficient time and resources
be allocated to different stages of commissioning and startup.
Special efforts are needed to ensure safety and reliability at
commissioning. Since commissioning, startup and shutdown
activities have been responsible for many accidents, failure and
other issues, these activities merit special attention.
Processing plant commissioning embraces activities such as
cleaning, flushing, verifications (Punching sessions), leak tests,
performance evaluation (prior ready for commissioning RFC) and
functional tests essential for bringing a newly installed facility into
routine operation (prior ready for operations RFO).


Commissioning is the startup for the very first time, is the last major
phase before operation, there is a risk that commissioning will take
place under great time-pressure or even some delayed
commissioning activities may continue after the initial operation of
the plant.
“Is the highest risk period in the lifetime of the plant.

 Fig.2 BP America (in Texas) Refinery Explosion
Accident Description
Accident: BP America (Texas City) Refinery Explosion
Location: Location: Texas City, TX
Accident Occurred On: 03/23/2005 | Final Report Released
On: 03/20/2007
Accident Type: Oil and Refining - Fire and Explosion
Investigation Status: The Board approved its final report by a vote of 5-
0 at a public meeting in Texas City on March 20, 2007.
At approximately 1:20 p.m. on March 23, 2005, a series of explosions
occurred at the BP Texas City refinery during the restarting of a
hydrocarbon isomerization unit. Fifteen workers were killed, and 180
others were injured. Many of the victims were in or around work trailers
located near an atmospheric vent stack. The explosions occurred when
a distillation tower flooded with hydrocarbons and was overpressurized,
causing a geyser-like release from the vent stack.
Keywords: Commissioning, operational readiness, assessment

1.Introduction
Following any tech transfer project, the subsequent startup of the
manufacturing line is almost always full of challenges. The goal is to
startup as soon as possible once the project is completed but also to
achieve steady state throughput as quickly as possible after the startup
begins.
This type of startup is what is called a “Vertical Startup.” In practice,
vertical startups are rare because management teams typically focus
their attention on having the facility and the equipment qualified in time
to meet the process qualification milestone.

The consequence of this thinking is that a broad range of workstreams
are often neglected or receive inadequate attention although they are
critical to startup. Workstreams like staffing, training, procedure
development, supply chain, analytical methods, etc. must all be ‘ready to
go’ by this important milestone. The result can be like having perfectly
tuned race cars lined up on the starting line of a Formula 1 race, but with
untrained drivers, little gas, unpracticed pit crews, and no spare parts.

Before a plant or facility is handed over for normal operation, it should be
inspected, checked, cleaned, flushed, verified, and tested. This process
is called commissioning and involves both the contractor and operators
of a facility (client).

The primary objective of this article is to inform the reader (particularly
those who are a part of management teams) about commissioning and
startups and how Operational Readiness is the organizational state that
needs to be reached for vertical startups to exist. The secondary
objective is to help the reader build an understanding of Operational
Excellence in addition to Operational Readiness.
 1
Email address:
 arvindo.candeio3@gmail.com
 Introduction to the Commissioning and
Operational Readiness Assessment.
A.J. Candeio
Commissioning & Reliability Engineer
6 Publications 22 citations
August 2024

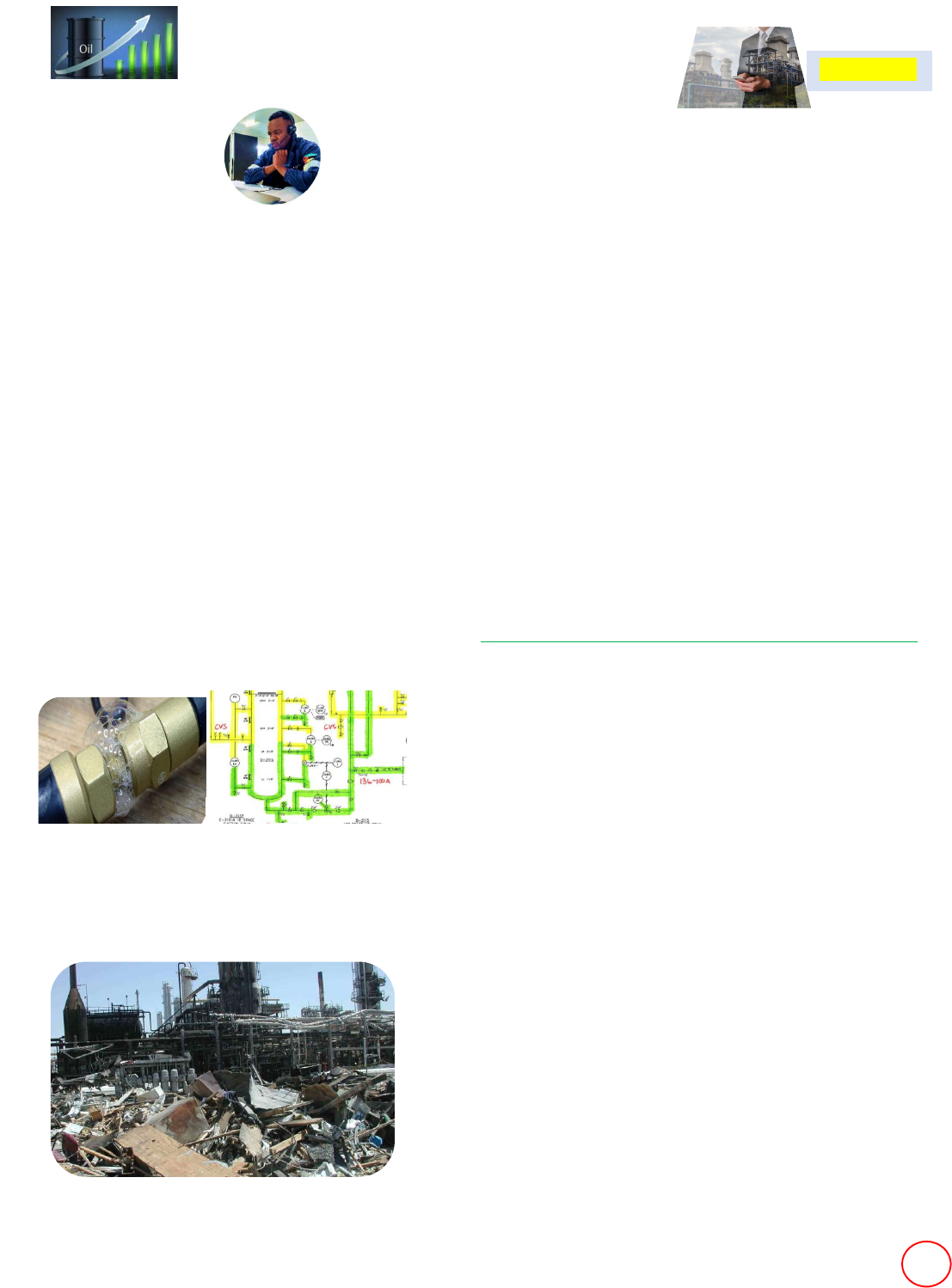

Fig.1 Soap leak testing & verification (marked up P&ID is needed)




2. Commissioning Methodology
Overall commissioning includes four construction milestones and
three project milestones.

Construction milestones:
 practical or civil completion (PC or CC)
 Mechanical Completion (MC)
 Electrical Completion (EC)
 Instrumentation Completion (IC)
Project milestones:
 Ready for commissioning (RFC)
 Ready for Operations (RFO)
 Beneficial operations (BO)
Careful planning is necessary for commissioning and startup,
integration of systems, particularly control systems with others, has to
be seamless.
Commissioning execution plan (CEP) is the high-level commissioning
plan that is used to generate the method of statement (discipline
commissioning master plan). A correct startup sequence and procedure
are needed and should be followed with utmost care and diligence.
For any machinery or equipment, specific set of spare parts is needed
for commissioning and start up. Generous quantities of spare parts
should be provided for this phase so commissioning and startup are
not delayed for lack of spare parts or tools.
2.1 Pre-commissioning
This stage often involves many activities such as installation;
inspections of equipment, piping, and machinery, checking of units and
facilities against designs (punching sessions), such as the piping and
instrumentation diagram (P&ID), flushing and cleaning, pressure
testing, functional testing, simulation and more.
Flushing
 Air blowing / card board blasting,
 Service blowing
 Pigging (the most efficient method of pipe cleaning)

Flushing procedure during the pre-commissioning activities is needed
for piping and checkout form should be filled and signed off prior to
mechanical completion.
Many process piping systems constructed in new plants do not require
significantly high cleanliness levels and are often “flushed” with water
after hydrostatic testing.
 At this stage, the actions of controllers and motorized valves should be
checked. Major equipment should be also thoroughly inspected,
monitored and final closed in (Boxing up vessels) in the presence of
commissioning team or client. Initial measurements of critical clearances
should be taken for later comparison control.

 2.2 Importance of redline drawings (P&ID)

Redlines are a critical aspect of the construction process. All deviations
must be drawn in red so the project team can see the change. It helps
ensure that all the designers and workers are always on the same page
about what is being constructed and when.

Dealing with project changes is a part of being a contractor, and every
change should be documented. Redline drawing is the first step, with an
as-built drawing following it.
For the inspections of equipment during pre-commissioning phase, it is
useful to ask Maintenance Manager / Engineer(s) to attend the activities
or even participate in the commission for inspection and testing of all
equipment and rotatingmachinery including electrical or mechanical
machines.

After all maintenance staff should take care of these machines and
equipment during operations and the commissioning stage is the best
opportunity to start this task. During the commissioning phase prior RFC
all Standard operation procedures (SOP’s), potential deviation analysis
(PDA’s) should be developed, and training or awareness should be
conducted to operators and mechanical artisan.
2
Email address:
 arvindo.candeio3@gmail.com July 2024
Fig.4 Mechanical punching Test Pack M-001




3. Typical challenges and Problems in Commissioning

Shortcomings in basic design contributes less to commissioning
difficulties than errors in detail design and construction. The reason is the
fundamental concepts have generally the most researched, examined
and evaluated by senior technical staff. Also, shortcomings in basic
designs are usually discovered and mitigated in the detail design.
On the other hand, in the areas of detail design, installation and
construction, surprises are not uncommon. Faulty or absent venting
arrangements occurs frequently. For example, if vessel vents are too
close to the inlet nozzles, feed materials might be vented unintentionally.
A pump set up with insufficient suction head to meet NPSHR has been
reported during commissioning of many plants. The situation may be
worsened by partial suction restriction due the plugging of a temporary
strainer or similar condition. The results, in terms of cavitation, could be
problematic and damaging.

Lack of detailed assessments where a flow is split often leads to
unsatisfactory results. Examples are a sampling stream in parallel with
the main flow and a level control maintained by recirculation as well as
outflow, with a control valve on one flow only. In general, such a problem
can happen in any place where the flow is split. When a control valve on
a line is actuated, the flow of both would be affected and accurate control
of these flows is not usually possible by only one valve. Sometime a
dedicated control valve is needed on each line to properly control flow of
each line.

The automatic control is another hot topic in the commissioning.
Whereas realistic simulation exercises attempt to test control
performance as much as possible, there have been severe limitations to
do so in the absence of job fluids and normal operating conditions.
Commissioning plans should therefore be viable on the assumption that
some control devices will not operate when needed and alternative
means of operation and control should be included.

Sudden major leaks from piping or equipment after pressure testing have
been reported in some occasions, but such leaks are relatively
uncommon if the piping and facilities are properly fabricated, inspected
and tested. However, others of disfunctional pressurization and leaks
have been common in the commissioning. There have been dangerous
incidents where fluids from a high-pressure circuit leaked into an ancillary
low -pressure circuit through a faulty item such as defective equipment,
tube or valve. This resulted in release of a large quantity of pressurized
material and even high-pressure flammable material. Careful attention
should be given to all systems including low pressure auxiliary and
ancillary systems and their potential interfaces and exposures to other
process or high-pressure circuits. For instances, there was a case that
high pressure gas in a compressor pressurized the lubrication oil system
because of faulty internal part inside the machinery which caused
extensive damages.

Vacuum leaks are a common problem during commissioning of vacuum
systems, particularly air leaks into vacuum system.
Wrong or imperfect application of materials of construction have been
widely reported as serious problems in commissioning (e.g., wrong
gaskets). Two examples are wrong initial material selection and
secondly, errors in manufacturing, fabrication, and welding.
Thank and vessel linings have been a known source of problem and poor
performance during commissioning. In theory, lining is a good and cost-
effective solution. Unfortunately, in many cases, defects and problems
became apparent at the commissioning stage.



4. WHY A FOCUS ON READINESS?
 Getting off to a good start is the essence of Operational Readiness (OR).
OR is a management approach widely used in the chemical production
and energy sectors which has direct applicability to drug makers.
These industries use formal Operational Readiness and Assessment
(OR&A) programs as a risk management paradigm to guide management
practices for performing pre-startup reviews of (1) new processes
regardless of scale, from big plants to small plant startups, (2) processes
that have been shut down for modification, and (3) processes that have
been administratively shut down for other reasons. However, being “ready”
needs to go beyond just performing pre-startup reviews – particularly for
the life sciences industry. It needs to include an analysis of the product
input and output variances and the control strategy deployed – not to
mention evaluating the actual startup afterwards, which is one of the best
performance indicators of OR.
Key elements of operational readiness assessment:

For the long–term operational success and viability of a new
facility, operational efficiencies require attention and development
during the design and construction phases which are heavily
influenced by the high pressures imposed for schedule and budget
compliance. If not planned well in advance, the transition from
construction to operation can be chaotic. A predictable opening
day that can confidently deliver stable and reliable building
performance is dependent on three key components: facility
readiness, people readiness, and information readiness.

3
Email address:
 arvindo.candeio3@gmail.com
July 2024
Fig 5-Operational Readiness diagram. Courtesy of Jacobs.


4.1 Facility Transition Planning to Asset Management
For the long–term operational success and viability of a new facility,
asset management requires attention and development during the
design and construction phase where the focus is predominantly on
building the physical assets, driven by the high pressures imposed for
schedule and budget compliance. If not planned, the baton pass from
construction to occupancy and asset management can be less
efficient and less effective.



Understanding the potential risks and cost overruns associated with
transitioning a new facility can enable the owning organizations to
effectively and predictably plan for smooth transitions from
construction to operational readiness and long term asset
management that contribute to lower O&M costs, increased facility
longevity and a superior customer or occupant experience. With an
increase in the level of technology in facilities coming online in the
near future, it is imperative that the transition planning, workforce
preparation, and data transference are consistent and reliable for
organizations expanding their portfolio and seeking an integrated
operations and asset management program from opening day of a
new facility.

Engagement of the operations and support teams, including security,
environmental health safety and security, facility management, and
engineering and maintenance, throughout the system startup and
commissioningphases will have staff better prepared to accept full
operations and maintenance responsibility during the transition to a
fully operational facility with the ability to support the owning
organization in a productive and safe environment.



To become operationally ready, leaders must begin working toward
that objective early in the project – ideally at the beginning stages of
the project during the preliminary design review (but no later than the
Design Qualification). This early involvement may surprise most
operations managers, but this effort is essential.

5. Formal operational readiness and assessment
program


Lastly, companies should develop and implement an OR&A program
that anticipates problems and either eliminates them or puts
management systems in place to mitigate them. OR&A programs have
historically recognized that an operational system is comprised of
multiple elements:
1 People,
2 Procedures, and
3 Equipment.
Consequently, an organization’s preparedness efforts need to address
these three areas individually as well as in an integrated fashion. Logic
trees are frequently used for this effort as a visual diagnosis that lays out
a problem and all its possible solutions, allowing you to choose the best
course of action.
Do the people match the equipment? Is the equipment properly
operable for the people who have been selected and trained to operate
it?

Do the procedures match the equipment? E.g., have we avoided
situations in which the operators have been given Version 1 procedures
manuals to operate Version 2 equipment?

Do the procedures match the people who are to use them?

Acknowledgements

The author like to thank to the respectable reviewers for giving proper
instruction to improve the quality of this paper.

 About the Author


 Arvindo Candeio, graduated from Eduardo Mondlane University in
Mechanical Engineering between 2008-2013, son of two public
servants: Joao Candeio and Juliana Sadraque. I was born in a small
border town in Mucumbura - Tete Province, I went through a difficult time
due to the effects of the civil war, during my childhood I was a cattle and
goat herder and helped my parents cultivate corn, beans, and sorghum
in the village of Mapalo, 5 km from the administrative post of
Mucumbura.
References

[1] Oil & gas Mozambique Project_ learnings from FLNG Coral,
IPF Integrated processing facility and IGF Initial gas facility IBL
and OBL 2023-2024

[2] https://www.wbdg.org/resources/transitioning-new-facility-
from-construction-operations-asset-management


Email address:
 arvindo.candeio3@gmail.com
4
July 2024
