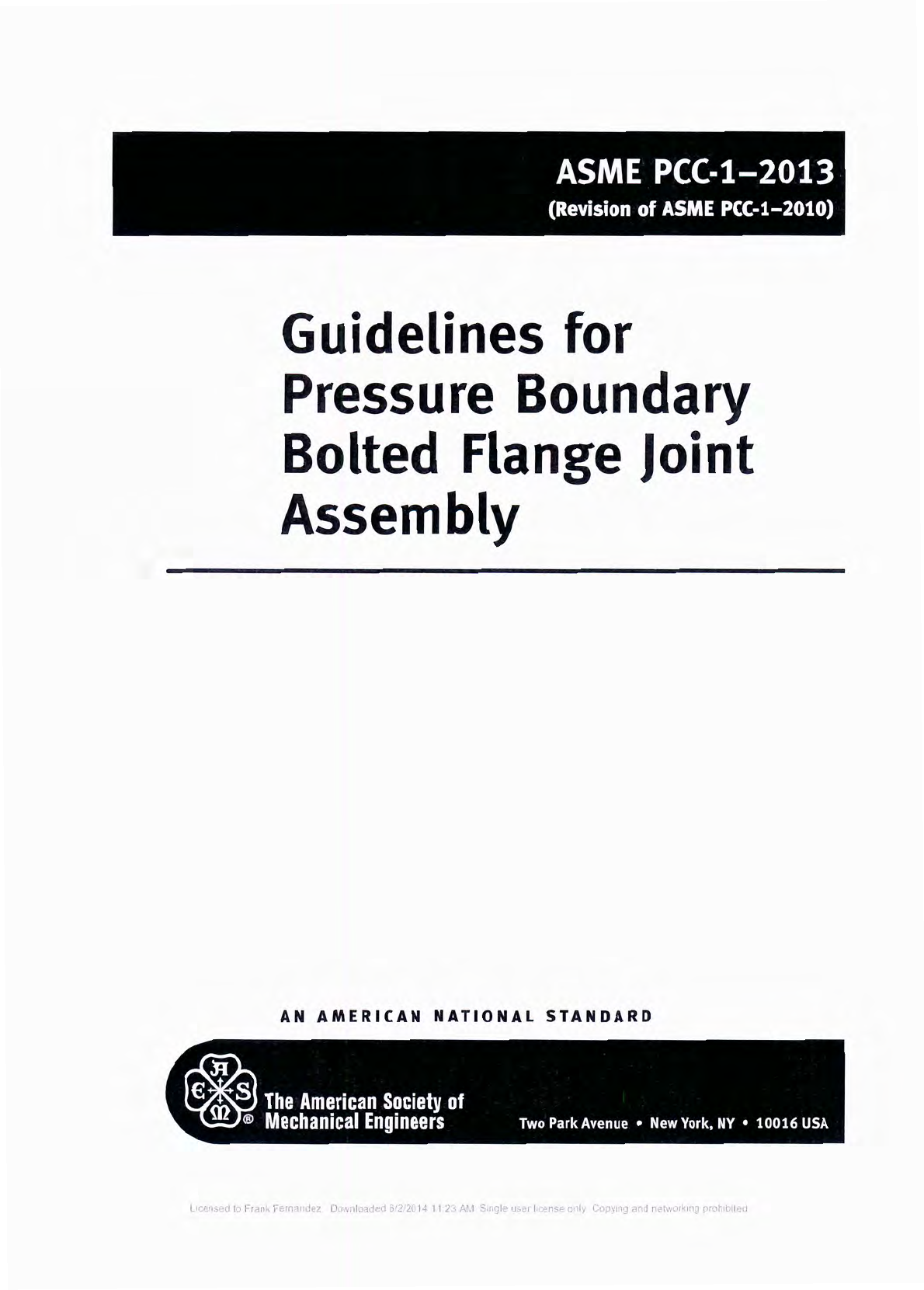

Guidelines for
Pressure Boundary
Bolted Flange Joint
Assembly
AN AMERICAN NATIONAL STANDARD
~ The American Society of
~ Mechanical Engineers Two Park Avenue • New York. NY • 10016 USA
Date of Issuance: November 12, 2013
This Standard will be revised when the Society approves the issuance of a new edition.
ASME issues written replies to inquiries concerning interpretations of technical aspects of this
document. Interpretations are published on the ASME Web site under the Committee Pages at
http://cstools.asme.org/ as they are issued.
Errata to codes and standards may be posted on the ASME Web site under the Committee Pages to
provide corrections to incorrectly published items, or to correct typographical or grammatical errors
in codes and standards. Such errata shall be used on the date posted.
The Committee Pages can be found at http://cstools.asme.org/. There is an option available to
automatically receive an e-mail notification when errata are posted to a particular code or standard.
This option can be found on the appropriate Committee Pageafter selecting "Errata" in the "Publication
Information" section.
ASMEis the registered trademark of The American Society of Mechanical Engineers.
This code or standard was developed under procedures accredited as rneeung the criteria for American National
Standards. The Standards Committee that approved the code or standard was balanced to assure that individuals from
competent and concerned interests have had an opportunity to participate. The proposed code or standard was made
available for public review and comment that provides an opportunity for additional public input from industry. academia,
regulatorv agencies. and the publk-at-large.
ASME does not "approve." "rate," or "endorse" ally item, construction, proprietary device. or activity.
ASME does not take any position with respect to the validity of any patent rights asserted in connection with any
Items mentioned in this document. and does not undertake to Insure anyone utilizing a standard against liability for
infringement of any applicable letters patent, nor assumes any such liability. Users of a code or standard are expressly
advised that determination of the validity of any such patent rights, and the risk of infringement of such rights. is
entirely their own responsibility.
Participation by federal agency rcpresentatlve(s) or person(s) affiliated with Industry is not to be interpreted as
government or industry endorsement of this code or standard.
ASMEaccepts responsibility for only those interpretations of thrs document issued in accordance with the established
ASME procedures and policies. which precludes the issuance of interpretations by individuals.
No part of this document may be reproduced in any lorm,
in an electronic retrieval system or otherwise,
without the prior written permission of the publisher.
The American SOcietyof Mechanical Engineers
Two Park Avenue, New York, NY 10016,5990
Copyright Cuidnnce on Troubleshooting Flanged Joint Ll'to ~--:--------
(Name)
Il)
I II
ASME PCC-1-2013
again, and Lay)
ASME PCC-2-2011, Repair of Pressure Equipment and
Piping
Publisher: The American Society of Mechanical
Engineers (ASM E), Two Park Avenue, New York,
NY lOO'J6-5990; Order Department: 22 Law Drive,
P.O, Box 2900, Fairfield, NJ 07007-2900
(www.asme.org)
16.4 ASME Boiler and Pressure Vessel Code, 2013
Edition
Section II, Pari' A - Ferl'OUS Melteria I Speci fications:
SA-I05/SA-I05M, Specification For Carbon Steel
Forgings for Piping Applications
SA-182/SA-182M, Specification for Forged or Rolled
Alloy and Stainless Steel Pipe Flanges, Forged
Flanges, and Valves and Parts for High-Temperature
Service
SA-'193/SA-193M, Specification for Alloy-Steel and
Stai nless Steel 801 ti ng Ma ter ials for High-
Temperature or High Pressure Service and Other
Special Purpose Applications
SA-194/SA-194M, Specification for Carbon and Alloy
Steel Nut!> for Bolts for High-Pressure or
High-Temperature Service, or Both
SA-240/SA-240M, Specification for Chromium and
Chromium-Nickel Stainless Steel Plate, Sheet, and
Strip for Pres ure Vessels and for General Appl ications
SA-453/Sf\-·153M, Specification for High-Temperature
Bolting Materials With Expansion Coefficients
Comparable to Austenitic: Steels
SA-540/SA-540M, Specification for Alloy-Steel Bolting
Materials ror Special Applications
20
ASME PCC·t-20B
SA-693, Specification for rr~cipitation-HMJening
Stainless .md Heat-Resisting Steel Plate, Sheet, and
Strip
Section II, Part B - Nonferrous Material Specifications:
S8-637, Specification for Precipitation-Hardening
Nickel Alloy Bars, Forbings, and Forging Stock for
High-Temperature Service
NOTE: ASM£ C;i\ and 56 m.HNi.ll specification- are used in
i\"ME pec·t A..,lf-I matenal -pt:Uh(.lllons ma) .11-;0be u-cd or
l.ll-..,nto apply, .1' allowed by the JPplicable cod", 01 construction,
Inr [he joint b~in!; considered.
Section VIII, Division I - Rules for Construction of
Power Boilers
Publi her: The American Society of Mechan ica l
Engineers (ASME), Two Park Avenue, New York,
NY 10016-5990; Order Department: 22 Law Drive,
P,O, Bux 2900, Pairfield, NJ 07007-2900
(www.asrne.org)
16.5 ASTM Publications
ASTJ\I A829/ A829M-06, Standard Specification for
Alloy Structural Steel Plate!'>
ASTM F436-'II, Standard Specification for Hardened
Steel Washers
ASTrvl F606-11 a, Standa I'd Test Methods for
Determining the Mechanical Properties of Externally
and Internally Threaded Fasteners, Washt!rs, Direct
Tension indicators, and Rivets
ASTM F606M-'13, Standard Test Methods for
Determining the Mechanical Properties of Externally
and Internally Threaded Fasteners, Wa~hers, and
Rivets (Metric)
Publisher: American Society for Testing and Materials
(ASTM International). 1(l0 Barr Harbor Drive,
P.O. Box C700, West Conshohocken, PA 19.+28-2959
(\\ ww.astm.org)
16.6 AWS Publication
AWS A5.1.f/A'U-!M:2011, Specification for Nickel and
Nickel-AII(IY 13for
Vessels ASME Code Section VIII, Divisions 1assemblers
in accordance with the recommendations contained in
ASME PCC-l but has 110tyet received training and quali-
fication from a Qualifying Organization.
/It)lling trainee: a person undergoing training to become
a Qualified Bolting Specialist.
current edition: the edition of the referenced code or tan-
dard that is specifically cited in ASME peC-l or was
in effect at the time of publication of this version of
ASME PCe-1.
111'11/ exc!wlIgcr/tll/'I'.,ilt"1'1 ioiuts: gasketed bolted joints that
comprise the pressure-boundary closure between the
tubesheet and the mating shell and tubeside girth
flanges and that require special assembly considerations
(see para. A-2.3.3). The gaskets for these joints axe gener-
ally located entirely within the circle enclosed by the
bolt holes, with 110contact outside this circle; however,
this is not intended to evclude other configurations, such
as flat-faced flanges, fmlll this Appendix.
Inelllsiry Orsnlli:;a/ioll: :111 organization that represents
the interests of users of bolted joint assemblers.
lotos! cdiilon: the latest edition in effect at the time of
reference.
Mntl'rinl SI~fCly Oil/II SIIt't'1 (MSDS): a data sheet for chemi-
cals that define ...important information such as the levels
of toxicity, flammability, and first-aid actions required
personal protcctit»: t'I/lIilllllt'1I1 (prE): the safety equipment
(safety glasses, safety boots, earplugs. etc.) required to
perform the assembly task,
pipillg jt1ill/S: similar 10 pressure vessel joints; however,
considerations relating to alignment and external load-
ings on the joints con govern design and assembly
I 11
requirements. The gclskdthan half of the aspects
covered in the training outlined in para. A-2.3. The expe-
rience should be documented by references from Senior
Bolting Assemblers, Qual; tied Senior Bolting Specialists,
or Qualified Bolting Specialist Instructors indicating that
the field experience obtained meets the requirements of
thts Appendix. An example reference sheet is supplied
in Form A-1. At least om' reference should be from"
supervisor at the individual's current or previous place
of work. An individual mily obtain "he field experience
2(,
11 , .
ASME PCC'1-2013
Form A-1 Example Reference Sheet
ASME PCC-1 Appendix A Qualification: Confirmation of Work-Site Experience
Please type or print legibly and return to the applicant
INSTRUCTIONS
APPLICANT: Complete items 1 and 2, then forward this form to the individual serving as your work-experience reference.
All work-experience references must have worked with you at least during the time period being validated.
REFERENCE: The following Individual is applying to receive qualification as a Bolting Specialist per the quatilications and
requirements outlined in Appendix A of ASME PCC-1. Your name has been given as a reference to verify the required
Minimum Work Site Experience. The ASME PCC-1 Appendix A Qualifying Organization is charged with the responsibility of
qualifying only those individuals who have demonstrated a proficiency in the assembly, operation, and quality assurance of
bolted joints. Your assistance in helping make that determination is appreciated.
Applicant Information
1. Applicant's name:
(First) (Middle) (last) rs., Jr., III)
2. Mailing address: _
(Street address)
(City) (State) (Country) (Postal code)
Reference Information
3. Reference's name:
(First) (Middle) (Last) (Sr., Jr., III)
4. Mailing address: _
(Street address)
(City) (State) (Country) (Postal code)
5. Work phone: Home phone: Email: _
6. Are you a (select one)
__ Senior Bolting Assembler? I I No J Yes
If yes, state experience: _
__ Qualified Senior Bolting Specialist? _ No Yes
If yes, Qualifying Organization and number: Expiration date: _
__ Qualified Senior Bolting Specialist Instructor? _ No _ Yes
If yes, Qualifying Organization and number: Expiration date: _
27
F 1. 11
ASME PCC-1-20l3
Form A-1 (Back)
7_What is your business relationship to the applicant? _
8. How many years have you known the applicant? _
9. Keeping in mind the Intent to ensure that applicants for Bolting Speciallst qualification have broad, prio: Walk-site
axoertence in bolted jolm assemblv that meets the intent of ASME PCC-1 Appendix A, para. A-2.2:
(a) Do you centum that lhe I.lpplicant has worked In the field with the assembly of bolted [olrus rOI (pIIH1SB check one)
at least 6 months full-lime, with frequent joint assembly on a daily basis?
No Yes
at least 1 year with infrequent joint assembly, with intense periods occurring at least t week per month and
at least a total of one-third 01 the time worked In thaI year?
No Yes
at least 2 years with multiple, sporadic periods of joint assembly?
= No _ Yes
(b) In vcur estimation, has the applicant's bolted joint assembly work experience been sufficiently broad for him/her
to develop a wide range of skills and knowledge necessary to form the foundation for further training and ultimate
qualification as a Qualified Bolting Specialist?
No Yes
10. Do you recommend the applicant for qualification as a Qualified Bolting Specialist? - No IYes
11. Signature of reference: _ Date: _
28
F • I [..
ASME PCC-1-2013
subsequent to completion of the training, in which cave
they are not considered qualified until such time ,,::.they
have sufficient experience to obtain their qualification.
In the case of an individunl with either powered equip-
1111'1 It, heat exchanger, or special joint supplemental qual-
ifications, the experience shal! include o1t leosr one-
quarter of the time spent "(Irking on those item ... of
equipment. Where the [requency of working on such
equipment i" less than thb, the time period prior to
achir-v ing the supplcrnentul qualification :-11.111be
t').tcntil'd until an equivalent period has passed.
A·2.3 Training of Fundamentals
rlw Qualified Bolting Speciallst shall h.:l\ e "dl!llllatc
tr.,ining (In the fundamental-, of the as ernblyoperation,
and quality assurance (If bolted joints. Pr.ictical and the-
oretlcal 1')\,ll1lin(ltions shall be p;iven at the end IIf "ul'h
tr.linillg tll ensure, to till;' sntio.,lnction of a Qualified
Bollillj..; SI'L'Litilist lnstrurtur, II,ot the C,lndidntL' hurIJct's, and job saft!ty analysis,
including
(I) c('mmon pl'llCCdurl's for ,,"ork permit:. Jnd
ensuring system isoliltion
(21 finger pinch point-. with assembly am.I t'L' section 6, subpara. (c)
(6) ba ...i joint alignment equipment (pry-bar, drift
pins; see Appendix E)
(7) bitl' or corporate guulelines
(c) tilt' principles of bolt dl1ngation, bolt load, .1I1d
gasket stress
( I) 1,·I.ltion"hip bet ween bolt .,tr6 (neep/rela""tion and
operatlng conditions) on joint leakage and overall loint
rei iabi IitY
(c) gasket types and therr limitations
(I) summary of cnrn mnn g.1sket lYrl'S ,Ind
materials
(2) sensitivity of (iiffel'l'lIt g.\~kl'l·types to assembly
procedures
(3) maximum allowable ~asket stress
(4) minimum requirt'd g,)'.;kel stress
(5) a\\ areness of tlw need fClr ci)l.'IIli.:.11
comp.ltibil iIY
(6) awnnml:'SS of templ·r.llurl! limits
(j) bolt types and their IimitilLil1ns
(I) brief detail of common bolting specifictltillns,
includingyield strength
(2) nut-bolt combinations, nut strength \ ersus bolt
strength
(3) generic material temperature limils
(4) materials for stress-corrosion-cracking
environments
(5) corrosion resistance
(6) coi~tthe ,)',:'1.'111-
bly process and ma) have the capability to improv e bolt-
load ,lCLl1r..p,1I1...ion joints
(c) tightening piping joint" on pres...ure rt:'lil'f dt'\ 'l'I'~
(I) potential for inspection work-hold poi nt 111
enl>LI1'Ctl hIt Ihere is no hlockilgc in lilt' I'd ief path
(2) correct installation. g,hkl.'h, handling. .ind ol'i-
entation of rupture discs and dl~chMge lines
(3) confirmation of piping status by curt if icclinspector (if required)
(d) tightening piping joints on and around piping
expansion joints and spring hangers with cold-set
(1) methods of safely restr"lining bellows and cold-
set spring hangers
(21 ensuring restraints are removed prior to
operation
(3) how ttl recognize ant] report if too much force
is required to bring the flanges together (seeAppendix E)
(c) importance of alignment and gnp uniformity
(1) Appendix E flange alignment tolerances
(2) tighter limits required for shorter or stiff spans
(3) importance of the bolt-, passing freely through
the bol t holes so that the nuts rest parallel to the Hange
if) selecting the target bolt-assembly load
(1) parameters that determine appropriate bolt
load (flange size, gasket type, nange class, flange type,
flange material, bolt material, piping service)
(2) deterrnina tion of correct load from gasket speci-
fications hand torque
wrenches, torque multipliers, and impact wrenches
n) where to look for guidance (user spccification-.
comp.lIl), guidelines, tool manufacturer Web sues)
A-2,3.2 Additional Training Required to Obtain a
Powered Equipment Supplemental Qualification. 'l lu-
curriculum sl':111ensure candidates have a thorough
undcl':.talllling of the fOllowing :1spectly, .I~st'mbl)', and tiglrtl'l1ing used:
(II) genl'ral he.llth and !>afety prl'l.i1utions
(7) .,,)(ety Clnd securing (It high-pressure fluid", fi 1-
ting~, llllli hoscl> during ()pl'r,ltiull
31
ASME PCC·1-2013
(2) placement a nd removal of backup wrench under
high loads
(.3) pincb points relative to hydraulic or pneumatic
torque equipment and backup wrenches
(4) dangers associated with socket failure under
load from using the incorrect or a low-quality socket
([I) hydraulic and pneumatic torque joint tightening
0) working parts of hydraulic and pneumatic
torque equipment
(2) working parts of a hydraulic pump and
hydraulic/pneumatic regulator
(3) troubleshooting hydraulic wrench, hose, hose
connections, and pump failures
(4) method of setting target torque
(5) method of using a hydraulic torque wrench
(6) single-point tightening versus simultaneous
multiple-point tightening, and influence on the assem-
bly procedure
(c) joint tightening using tensioning equipment
0) working parts of a hydraulic bolt tensioner
(2) working parts of a hydraulic pump and hydrau-
lic regulator
(3) method of setting correct bolt load (formulas
for calculating the target bolt load) for the number of
tools in relation to the number of bolts in the joint
(4) method of using a hydraulic bolt tensioner
(5) troubleshooting of rensioner, hose, hose connec-
tions, and pump failures
(6) use of a single tensioner versus simultaneous
use of multiple tensioners and the influence of each on
the assembly procedure (see Appendix L)
(7) effect of elastic recovery (indicated tensioner
load in relation to final bolt load, need for overtension.
and the effect of bolt grip-length to bolt-diameter ratio:
see para. 8.2.2)
(d) calibration and maintenance of hydraulic bolt-
tightening equipment
(1) requirements for maintenance of common
hydraulic field equipment
(2) inspection of hydraulic hoses and cylinders
(3) familiarization with methods for calibrating
common hydraulic field equipment
(4) importance and frequency of calibration
(e) selecting appropriate bolt-tightening tooling
(1) acceptable methods in relation to bolt size
(2) naturally occurring clearance problems related
to general styles of tooling such as hydraulic in line ratch-
ets, hydraulic square-drive ratchets, fixed-size tension-
e rs, variable-size tens io ners. hydraulic nuts, and
mechanical jack nuts
(3) bolt-load limitation of hydraulic tensioners as
related to pressure, ram size, bolt size, and bolt length
(4) use of comparative angle of nut rotation method
when standard hydraulic tooling will not work (insuffi-
cient space for hydraulic equipment for one or two bolts)
A·2.3.3 Additional Training Required to Obtain a Heat
Exchanger Supplemental Qualification. The curriculum
shall ensure candidates have a thorough understanding
of the following aspects of joint disassembly, assembly,
and tightening for exchanger joints, As a minimum, the
following shall be addressed:
(aJ types of exchangers [Tubular Exchanger
Manufacturers Association (TEMA) designations] and
their joints
(1) joint configurations, terminology, and locations
(2) gasket configurations for the different types
of joints
(3) confined gaskets versus unconfined gaskets
(4) measurement of final joint gaps as a measure
of success
([/) bundle pushing and considerations for assembly
(1) bundle and channel orientation to align piping
and pass-partition groove(s)
(2) risks during pushing (damage to the flange-face
or shell gasket)
(c) tubesheet joint considerations, shellside gasket
damage, and recompression of shellside gaskets on tube-
sheet joi.nts
(1) second gasket compression (more assembly pas-
ses may be required)
(2) risks if the shells ide gasket seal is broken when
the channel is removed (if bundle is not bei.ng pulled)
(3) inspection of pass-partition surfaces (pass-
partition flush with flange facing)
(4) consideration of tightening shoulder-type bolts
from both sides
(5) gasket pass-partition alignment
(d) Breechlock exchangers (optional)
(1) general sealing configuration of Breechlock
exchangers
(2) special procedures for assembly of Breechlock
(manufacturer's instructions)
A-2.3.4 Additional Training Required to Obtain a
Special Joint Supplemental Qualification. The curricu-
ILLOl shall ensure candidates have (I thorough under-
standing of all significant aspects of joint disassembly,
assembly, and tightening for special joints. A compre-
hensive listing of the requirements is outside of the scope
of these guidelines. However, the general approach used
in the previous sections for piping and exchangers
should be followed in formulating a training curriculum
for specie I joints. The following general sections shou ld,
as a minimum, be covered:
(a) seal surface preparation
(b) the importance of alignment and gap uniformity
(c) gasket handling, preparation, and installation
(d) specific assembly steps, tooling, or procedures
pertinent to the joint in consideration
(11) safety considerations, induding lockout, depres-
surization, electrical isolation, and special work permits
32
ASME PCC-1-20l3
A-2.4 Practical Examination
The Qualified Bolting Specialist shall demonstrate his
or her understanding in the assembly of bolted joints
by taking part in at least one of the following range of
bolted joint practical demonstrations and witnessing the
other demonstrations. The demonstrations are designed
to highlighl significant aspects of the training curricu-
lum and art' to be perfo: med i_11 the presence, and to the
is to be assembled uslng both hydraulic tensioning and
hydraulic torque equipment.
The following demonstration- are suggested to high-
light several critical points of joint assembly. Alternative
demonstrations or modifications to the outlined details
may be substituted for any of the demonstrations, pro-
vided the desired learning points are still achieved, as
judged by the Qualified Bolting Specialist Instructor.
A-2Al Importance of Gasket Placement
(a) Perform the following on a flange test rig having
[ou r or more bol ts:
(1) Assemble a four-bolt, small-diameter flange
with a spiral-wound gasket without inner and outer
rings, using a tightening pattern, and ensure that about
half of the gasket width is not on the raised-face portion
on one side.
(1) Assemble a class 300, four-bolt, small-diameter
flange with ,1 class 150 spiral-wound gasket with outer
rings, with the gasket in a vertical position, using a
tightenli1);; pattern, and en ure that the outer ring of the
(;asket is located against the bolts.
(3) Assemble a four-bolt, small-diameter flange
with a spir.rl-wound gclsket without inner and outer
ring", using a tightening pattern, and ensure the gcskct
i., centrally located on the raised face.
(b) Inspect each gasket after disassembly to demon-
strate uneven compression when not properly located.
A-2.4.2 Importance of Joint Alignment Prior to
Assembly
(n) Perform the following on a flange test rig having
fllur or more bolts and equipped with a spring system
that requires approximately 50':-;, l)f the assembly bolt
load on the t\\ o upper bolts to bring the tlanges into
prQper alignment:
(1) Assemble a joint with an expanded PTFE gasket,
without aligning the flanges first (use flange bolts to
align the joint),
(2) A semble a joint with an expanded PTFE ~askt't,
ali):,'11ing the Hanges using external means (e.g.. come-
along, chain-block),
(/I) After each assembly, observe the gasket compres-
sion and measure the final thickness of the gJ.;ket after
disassembly to demonstrule uneven loading when initial
a lignrnent of the flanges i...110t performed.
A-2.4.3 Importance of Bolt Assembly Pattern
(II) Perform the following on a Flange test rig having
four or more bolts:
(7) Assemble a four-bolt, small-diameter flange
with ,111 expanded PTFE ~asket without using .1 tight-
ening pattern (i.e., using circular posses only).
(2) Assemble a four-bolt, small-diameter flange
with an expanded PTFE go1~ket using a tightening pat-
tern per ASME PCC-I.
(b) Observe gasket appearance, and measure the final
thickness of the gasket after disassembly to demonstrate
uneven loading when cro s-pattern tightening is not
used.
A-2_4.4 Importance of Bolt Assembly Pattern and
Correct Gasket Selection. Perform the following test on
a flange test rig having eight or more bolts C~NPS 6):
(0) Assemble a joint with a spiral-wound gdsket with-
out inner and outer rings, without using a tightening
pattern (i.e., u'iing circular passes only).
(b) Assemble a joint with a spiral-wound gasket with
inner and outer rings, without using i1 tightening pattern
(i.e., using circular pa5~es only).
(c) Assemble d joint with a spiral-wound gasket with-
out inner and outer rings, usingrequirement of this Appendix. An example
reference sheet is supplied in Form A-l.
(C') have ready access to the lnrest edition of
ASME PCe-l, as well as workplace access to the current
editions of the documents referenced in para. A-1.3.
if) take an active role in bolted-joint failure analysis
arid identification and implementation of correct ive
action at the company or P"1I1t sites where he or she is
employed.
A-3.2 Duties
The duties of a Qualified Senior Bolting Speciillist
are identical to those of the Qualified Bolting Specialist
(para. A-2.5) with the addition of those described in
paras. A-3.2.1 and A-:U.2.
A-3.2.1 Administrative, The administrative duties
of ,1 Qualified Senior Bolting Specialist, include, but Me
not limited to, the following:
(II) providing on-the-job training to bolting asscru-
biers and bolting trainee"
3-1
ASME PCC'1-2013
(/I) m.untaining and ,'nal) 7ing records, including
those f,'r joint assembly procedures, inspections, and
Qualified llolting Specinlist performance. including
ml'dinl-> till' requirements of section A-2
(t') t"l~uring that Qualified St,lting Speddli~t." bolting
assemblers, and other personnel under hi., or her super-
vision pertorm their duties in accordance with the guide-
line-, of I\~ME PCC-I and "II applicable ~itc standards
and requirvments
(el) I'rl'parrng joint assembly procedures in accor-
dan«- with ASME I'CC-I
(e) I1hlintnining a workplace copy of the latest l'LJitioll
I)f J\SMF PCC-I, n... well ,I" the current edition of the
documents referenced in para. A·1.3
A-3.2.2 Technical. fill' technical duties of if
QlI"liflt'd Senior Bolti11!iSrp"ii1lbt include, but nrc not
limited to, the follO\\ in~:
(II) reviewing assembly procedures and inspection
repoi h, and ensuring l·n(()l'n·I111.'ntof legally adopted
rt'q u i remen I'!
(/I) reviewing applicntlon ...fl)l' waivers and variances,
and n1.1l...ingrecommendatrons, as required, 10 pmper
authorities
(c) en ..uri"g client review of joint assembly proce-
durcs and receipt (,f appropriate joint assembly
documentation
(d) investigating complaint ...and accidents
(c) helping to develop company policies and
procedures
(0 presenting on-site orientation courses tor both
Qualified Bolting Specialists and bolting assemblers
A- 3.3 Maintenance of Qualifications
A-3.3.1 To maintain the qualifications, o Qualified
Senior l30lting Specialist 'hall
(II) conform to the requirements of para. A-2.6.
(II) spend a minimum of 20').. of time working in the
field with Qualified Bolting Specialists, Qualified Senior
Bolting Specialists, trained bolting assemblers, trained
senior bolting assemblers bolting assemblers, or senior
bolting assemblers.
(c) fl":-.istwith the amendment of existing work-site
a ~l'l1lbly procedures deemed inadequate or unsafe, or
the dev elopment of revised \\ ork-site assembly proce-
durcs Ior unusual conditions or equipment.
(d) attest to his or her compliance with (a) through
(c) ,lilt! provide at least two references from co-workers
til' his or her employer LIP"" qualification and triennial
renewal of '(ut
,lnct' c\er)':l yr. TIlt' qUiflifi',1tion rt"newal rrocc~s shall
inch ,J,'A-4.3.l Ttl maintain the qualifications, a Qualified
Bolting Specialist Instructor Sh,'ll
(n) conform to tht! rl'quirements (1f pMa. 1\-3.3. and
a ttend or condlll t at least one professional-level seminar
01' wnrh.!>hop per yeill' relaled to on\' or more of the
dutit.'s described in para. A-4.2.
(b) spend a minimum (1f 10"" of w0rk time in the field
with thl.' Qualified BCllting Specialisb, Qualifif:d Senior
Bolting Specidli'lts, bolting assemblers, or senior boltillg
assemblers.
(c) atlest to his or her compliance lVith (i'I) and (b)
,1Ild provide at least two references fwm co-workers or
his or her employer upon qualification and trieJU1inl
r., r
renewal of qualification. At least one reference is to be
from a supervisor at the individual's current or previous
place of work.
A-4.3.2 The Qualified Bolting Specialist Instructor
shall be required 10 renew their qualification at least
once every 3 yr. I'he qualification renewal proce ...shall
include a statement of compliance with the requirements
of pcll'a, A-4.3.1 and shall include a short lest or quiz
designed to highlight any updates that have occurred
in the preceding :'I yr to the Training or Fundnmcnta!s
portion (para. A-2,3) of (his Appendix. If no chilnges
to p.ua. 1\-2.3 have occurred, then that portion \If the
qualification renewal process may be 01111111'1..1, The quali-
fiml'ion renewal process test format, and test content
o:;h.ll1be outlined in the Qualification Manual.
A-4.3.3 The Qualifying Organization is responsible
fur determining that the intii\ idual candidate 1have obtained, at a minimum, the level of competency
as defined by the required tmining and experience out-
lined in this Appendix.
(d) It assists users in evaluating the quality and level
of experience of contract labor,
However, for those goal" to be achieved, it may l1l'
necessary for user ... to accept varied Qualification
Programs given by different Qllillifying Organizations,
To achieve that level 01 acceptance, it is recommended
that the users identify Review Organizations that main-
tain an acceptable level of SM E knowledge and review
ability to ensure that the requirements of para. A-5.:!.3
37
ASME PCC·1-2013
are met to a level satisfactory til the user. Delegating the
responsibility of quality review to independent Review
Organizations maxim iNS the likelihood of portability
being achieved: minimizes reliance on user resources;
and allows endorsement of program!:> at the corporate,
rather than site, level of the user organization.
Idea II)" users w ill collaborate wi thin interne tiona I,
national, regional, or industry groups to identify accept-
able Review Organizations. l'his facilitates portability of
qualification anl(Jng those organizations and minimizes
the likelihood thatQualifying Organizations will require
more than one Review Organization to meet the require-
ments of the applicable users.
When a new Qualifying Organization seeks to be
accepted b)' a user, it 15 recommended that the user
primarily review and endor-se the associated Review
Organization, rather than each individual Qualifying
Organization.
A-SA Definition of Terms
A-SAl Subject Matter Expert. The objective in
selecting the 5MEs is to howe a knowledge and experi-
ence base to provide ;1 comprehensive review of the
Qualification Manual.
(n) Selection of SMEs should be based on the follow-
ing cri teria:
(1) knowledge - possesses knowledge in the field
of bolted joint assembly
(1) experience - has worked in the field of bolted
joint assembly
(b) The following factors may be useful in selecting
the SMEs:
(1) training - has documentation proving their
successful completion of training programs til bolted
joint assembly
(2) credentia I~and certifications - possesses a ppli-
cable and appropriate credentials or certifications, or
both, expected of all evpert in bolted joint assembly
(3) experience - yeMs of practical experience
A-S.4.2 Balance of Knowledge. The composition of
the review team should include at least one of each of
the following 5MEs:
(n) an individual with sufficient experience ami
background to qualify as a Qualified Senior Bolting
Instructor
(ll) a mechanical or structural engineer with experi-
ence in the a sernblv, maintenance, and operation at
bolted joints
(t) a mechanical or structural engineer with expert-
once in the design and analysis of bolted [oints
A-5.S Program Effectiveness
To track the effectiveness of the Qualification Program
offered, the Qualifying Organization should collect dat,
from users, or their designees, I'(!gcm.iing the success of
the program.
For the purposes of thil, .1,1 "'int-li);hkning .lctl,·ilil.'s
,)lIt'e the "nil i~hilly 0pl·r.,1 iMIoII.
lto! lotuur: sec s/arl-IIII 1"'/0/'1/1/(',
lillt' figlt/l'IIillg: t'ighlcningand the Subcommittee
Oil PI11Iv I~V.lll1.,tion in IlJ95. In 1C)t)R,a Task Group under 11'1(-'pec began prq)iw1tion or Guidelines
for Pressure Boundary Bolted Flnngl' Joint Assembly and in 1999 the Subcommittee on Repair
and Testing W,1;, formed, Other topic') are under consideration and may possibly be developed
into future guideline documents.
TI1e subcommittee" w crc charged with preparing standards dealing with several aspects of the
in-service inspection and maintenance of pressure equipment and piping. GlliridiJlt's far Pressure
BOlIl/dary Bol/ed Flal/ge join! Assembly (PCC-I) provides guidance and is applicable to both new
and in-service bolted flange joint assemblies. The luspectiun (>Imlllillg U.,illg Risk-B(/st'd AldJ/()d$
Standard (rCC-3) provides guidance on the preparation of a risk-based in ...pection plan. Imperfec-
tions found at any stage of assembly, installation, inspection, operation, or maintenance are then
evaluated, when appropriate, using the procedures provided in the Fitncss-For-Seruice Standard
(API 579-1/ ASlV£E FFS-l). If it is determined that repairs are required, guidance on repair proce-
dures is prOI ided in the appropriate portion of the Repair of Prcs-ure Eouipntcn! and Pipill.'? Standard
(PCC-2). To provide all stakeholders involved in pressure equipment with a guide t(l identify
publications related to pressure equipment intt'grity, a Guide Iv L.ifl! Cye/I' MIl IIII,(:CIIII'II I' of Pressure
Euuiptueu! IlIlt-gl'ity has been prepared (PTB-2).
None of these documents are Codes. They provide recognized and generally accepted good
practices that may be used in conjunction with Post-Construction Codes, such o o.; API 510, API 57(1,
and NB-2..1, and with jurisdictional requirements,
The first eLii tion of ASM E PCC-I, Cllitlr!lillt.'S Ii". 1'1'4::55111'1'BrJllllt/nl'!J IJollet! FlllllSt' Joilt! IIS~l'lIIl1ll/,
w.....approved lor publication in 2000, The 2010 revlslon WsrtrilyhI' suitable for nil applications. l'rec:,\Utiontructed lJFJAs. It is
, Rules for dl'~igl1 of bolted flange!- with ring-type g~8keb are
,-,w..:wd in M,IIl;JHot bolting is also an option, but there is
a higher associated risk with that activ it) due to the
associated reduction in gasket stress if the tightenmg is
performed while the joint is pressurized. Live tightening
..hould not be considered the same as start-up retorque.
which is performed as part of the assembly operation;
live tightening is an operational activity that may be
performed on a periodic basis to recover relaxation (typi-
cally on high-temperature joints that have a history of
leakage) or as a reaction to ioint leakage. An engineering
and risk ana lysis l)f the Iive-tightening operation should
be carried out to establish that the operation can be
performed safely, Refer toASME PCC-2 for further infor-
mation on joi nt-tlghtening activities once the unit is FulIy
operationa I.
odd-bo/lillg: see hal] Im/t;'lg.
011/;'1(, ligith'lliIlX: st'e live Jigilll'lIillg.
start-tu) rctorquc: tightening l'rV1l:es)or 10 rest',' I 1.S mm (Y16 in.)
NOTE:
(1) Finishes listed are average surface roughness values and apply to either the serrated concentric or
serrated spiral finish on the gasket contact surface of the flange.
41
ASME PCC'1-20B
APPENDIX D
GUIDELINES FOR ALLOWABLE GASKET CONTACT SURFACE
FLATNESS AND DEFECT DEPTH
0-1 FLANGE FACE FLATNESS TOLERANCES
F'>dStil1g industry Ilnlness tolerance lirnits ' do not
include an .1%eS.,rnL'JlI(I( till' ability of the gasket II)
tolerate irnperfectruns. I he Illl~I','I1CeS in Table 0- J M 1
D-( are dependent on the t) pc (If g"s!..et employed and
oUe c.,legorizeJ based on the initial ax ial compression
of the gil"ket 10 the filial ,I~"elllbled load.
So(l gaskets (see Append», 13)Me more tolerant of
Ililn~..: flatness implc'rfl'( tion., hut are Iypic.llly more dllfi-
cull to assemble, Hard g.l,>k('[-; (:-t!e Appendix B) have
II'SS compression 111,111soft g'I'ikt!I'> and, while lhi~ can
help with improved assembly due to less bolt interaction
(cross-talk), it generally means that hard gaskets arc
111\11\' sensitive 10 J'lnll).;l} (1,1111"F',,,if,c.)hon Ior VI"'l'l, , il.lr Buill'r .1"" rl~,,~url' VI!"d {.Ildl·
5 31'1/4 Not allowed Not allowed
GENERAL NOTES:
(a) See Figs. D·3 and 0·4 for description of defect measurement
and for definition of w.
(b) Defect depth is measured from the peak of the surface finish
to the bottom of the defect.
--15
L. II .,'t, Ipl I. I J n v. ...1 1 J '.1.01111 At! ~'''II "
ASME PCC-1-2013
Table 0-2 Allowable Defect Depth vs.
Width Across Face (U.S. Customary)
Measurement Hard-FacedGaskets Soft-Faced Gaskets
fd )W/4 Not allowed Not allowed
GENERAL NOTES:
(a) See Figs. 0·3 and 0-1, for description of defect measurement
and for definition of IV.
(b) Defect depth is measured from the peak of the surface finish
to the bottom of the defect.
Fig. 0·3 Flange Surface Damage Assessment: Pits and Dents
Pits and dents
w
Do not locally polish, grind. or buff
seating surface (remove burrs only)
rd= projected radial distance across
seating surface
d= radial measurement between
defects
w = radial width of gasket seating
surface
Scattered; rs= the sum of rdi
46
ASME PCC-1-201)
Fig. 0-4 Flange Surface Damage Assessment: Scratches and Gouges
w
Do not locally polish, grind, or buff
seating surface (remove burrs only)
'd = projected radial distance across
sealing surface rd
Fig. 0-5 RTJ Gasket Seating Surface Assessment
t
d
_L
47
r
ASME peC-1-20l3
APPENDIX E
FLANGE JOINT ALIGNMENT GUIDELINES
e-i GENERAL
Proper alignment of all joint members is the essential
element of flange joint assembly. It results in maximum
!.t:'ating surface contact, mavimurn opportunity for uni-
form gasket loading, and improves the effectiveness of
all bolt tightening methods. The following guideline..,
apply for aligning mating flanges.
E-2 GUIDELINES FOR ALIGNING FLANGES
(n) Out-of-tolerance conditions should be corrected
before the gasket is installed to avoid damaging it. Only
minimum or reasonable adjustments should be made
after the gasket is installed.
(b) When aligning requires more force than can be
exerted by hand or common hand and hammer align-
ment tools such a= spud wrenches and alignment pins,
consult an engineer.
(c) Proper alignment will result in the bolts passing
through the flanges at right angles and the nuts resting
flat against the flanges prior to tightening.
(d) Before using jad.~ or wrench devices, a pipe stress
analysis mil)' be appropriate, especially if the pipe is old
or it is suspected that the willis have thinned from LIse.
(t') If the flange' that are in need of aligning are con-
nected to pumps or rotating equipment, great care must
be taken to prevent introducing a strain into the equip-
ment housing or bearing-. Measuring the movement in
the equipment to en-ure that it::. aligned condition i!)
not disturbed is a common and necessary practice. (See
"parallelism" and "rotat innal-t wo hole" under
para E-2A.)
(f) The best practice io; to repair the misaligned com-
ponent by replacing it correctly, removing and reinstall-
ing it in the properly aligned position, or using uniform
heat to relieve the stresses,
(g) In joints where one 01' more of the flanges are not
attached to piping or vessels, such as cover plates and
tube bundles, usc ample force to accomplish the best
aligned condition.
(II) Once the flanges art.' aligned, install the gasket
and tighten the fasteners completely, and then release
the aligning devices. Follow this rule as closely as possi-
ble. External forces have 11!'i-;effect on properly loaded
joints.
L F r ,.
E-2.1 Large Piping Connected to Load-Sensitive
Equipment
It is recognized that more stringent alignment toler-
nnces may be required Ior large piping connected to
load-sensittve equipment such as machinery. For
machinery,refer to API Rlo'commentied Practice 68h,
Chapter 6, Sections ".6 through 4.9 and Fig. 8-4.
E-2_2 Critically Stiff Piping System
Stringent alignment tolerance guidelines that apply
to a critically stiff piping system such as may be con-
nected to a pump or other rotating equipment nozzle
are covered in paragraph 1.2.2 of WRC Bulletin 449
(Guidelines for the Oesign and Installation of Pump
Piping Systems). This guideline ac ounts for the stiffness
of the system and is based on misalignment not causing
more than 20% of the pump nozzle allowable loading,
VVhere rotating equipment is not involved a tolerance
'* times as large may be considered.
E-2.3 Stiff or Troublesome Piping Systems
For very stiff or troublesome piping systems larger
than ON 450 (NPS 18), it may be beneficial and more
econom ica I to consider the special gu idel ines of
paragraph 1.2.3 of WRC Bulletin -149 concerning the
modification or rebuilding of a portion of the system to
assure acceptable alignment.
E-2.4 Terms and Definitions
centerline IIigll/low: the alignment of piping or vessel
flanges so that the seating surface", the inside diameter
of the bore, or the outside diameter of the flanges match
or meet with the greatest amount of contact surface.
Tolerance is usually measured by placing a straight
edge on the outside diameter of one flange and
extending it to or over the mating flange. This is clone
at four points around the flange, approximately 90 deg
from each other. The tolerance i-; 1.5 rnm (~h in.) at cd as per-
centagv-- "f T~rgo:l Torque (the torque calculated ItI produce the
finol dc,heLl IOJd or ",lInping for cc ill 1111.'joint). 1 he percentage
",llu." "ssignl.'d to theM' inll'rnlcdi.llc steps arc upP"I\imale and
not e\,l( t, .1' their purl"'''' i, to 1",""01,' .,,'NI and gr,lLiu,llnppllcn-
til'" (" I\I.IJ, and 10 ,,,,,id condition-, which ll\i~hl irrcpM.lbly
da'l'I.l);'· ., g."lo.ct. (", en the Target 'torque numbers should be
IOlllo.ed Up"" .:IS Ihe (,'nl"r nl an '"ll-pl,lblc r.mg.', and not ,"
dbMl111ll' pllinl value-. ("'CI",,, 12). 1V.lhlOleach P,.~~,inh'rolwd',llc
• )1' rill,ll, "oll,i,teney .111.1gl'old'hll,lpplkc1lion lit 1"".1 around th,~
joint i, lh,' goal 1 hl' term .. forget Torque" -houhl not 1>11 I"I-.:n I"
impl) Ih.ll the iI~wl1lbl\' 1','lIern~ Ii,l,'d here MI! .1pplil.lblt: "OIl,
10 1c",bl~ 1 he pauem- Me ,,1'0 applt-
(vb'" III utlwr mdlwd, "r joilll .,s'I·l1lbl), ~u~h d' (l'n,iun ilnd
unnllll,olll'd. A';~"IlI"ly of 1I"ngcs wilh ,1 l;:1rgc 'H""l,,'1' or bolh
will l'L'nl'lil l!'l'm """'I"'" b\Iltin!, (tIghtcning !;"llUp" (lr Ihr,'c or
tt'ur bull ...) Rd"r II) ·1.lbl~-I
Illl' Il'~For soft gaskets,' a minimum ot two pattern PJS!>E'S
are required.
For hard gaskets, I ,I minimum of one pattern 1'.155
is required.
For problematic joints, it is recommended thJt an
additional pattern Po1SS be cornplcted above the mini-
m~lm required .
F-l.2 Alternative Assembly Pattern #2
This pattern u e" a modified b()ltin~ path~1n that is
!>implC'rto fullow thill1 thl: Legacy pattern alld dlW5 lIot
rCo!qllir~the n-,sl'mbll:'r In mark the bolt nllmh~rs on the
t1ang~,!ls the next looo;e h\)lt in ,Iny gh'l:!l1qu"dr,)I1t will
ellway" be the nexl bolt 10 ti~hten. l'.ltll'rn #2A ()I I"ig. F-3
follows ,1 star paltern, wlwrea~ 1',111~rn #213npplil'-;fllilyapplied in limited applk.,tiono; ,IeWS., Ih~
51
~. I(JI'" I, II II ill! ' I
e
III
E
E
::J
VI
11\...
oz
ASME PCC·1-2013
-0 '"
'"0o .-.... -... .....,,
.:;:;
ro
c....
C1I....of Targel Torque (untit nuts do not turn):
1,2,3.4,5,6,7,8,9,10,11,12.13,14,15,16,17, 18.19.20.21,22.23,24 -
1,2,3. etc.
(2) 24-801t Example - Circulor Sequonco
(suitable only for >16-bolt flanges):
(a) Pass 10- 20% LO30% orTarUel TOIque: 1,7.13,19
(b) Pass 1b - 50% 10 70% of Taruet TOIque: 2,8,14.20
(c) Pass 1c - 100% of Turget Torque: 3.9.15,21 - 4,10,16,22 - 5,11,17,
23 - 6,12,18,24
(d) Pass 2 (If second pnrtern Pass specified) - 100% of Target Torque:
1,7,13,19-2,8.14,20-3,9,15,21-4,10,16,22 -5,11,17,23 -
6.12.18,24
(el Pass 3 onward - 100~o of Target Torque (until nuts do not turn):
1,2,3.4,5,6,7,8,9,10,11,12,13,14,15.16,17, 18,19.20,21,22,23,24 -
1,2,3, etc,
56
I II II ,I, I I II
ASME peC-1-20B
full rnnge of gaskets and joint configurations cornrnonly
found in rt'fining appllcations.
Ti~hlcning sequence for Pattern #2 is described in (a)
through (!.
A step-by-step example is shown in Fig. 1'-9.
(n) Pass -#1a: Proceed in the pattern outlined in Fig. F--1
and tighten four bolts, equally spaced at 90 deg apart,
III 20";', to 30% of Target Torque.
(11) Pass #1 b: Tighten the same four bolts tn 50% to
70"/', (If Target Torque.
(c) Pass 4t'1c: Tighten the same four bolts to '100% of
Target Torque,
(d) Pass #Id onward: Tighten in circular Passes at
IUO% of Target Torque until the nuts no longer turn.
F-l.4 Alternative Assembly Pattern #4: Simultaneous
Multlbolt Tightening Pattern (Group Numbering
System)
Tile simultaneous use (If multiple tools spaced e-venly
around a flange has been shown to give equal 01' even
2 " BIll11i~hl"nll1g Proccdun, for Pressure Boundary Flilngc,IJl)int
Assembly," ISA us B 2251. 20nB.
, r '" I '" j I', I" h 11 ~ ., I I
Fig. F-4 Alternative Assembly Pattern #3
(Circular Pattern)
GENERAL NOTES:
(a) Pass 1a - 20% to 30% ofTarget Torque: 1,13,7.19
(b) Pass Ib - 50% to 70% of Target Torque: 1,13,7.19
(c) Pass rc - JOO% of TargetTorque: 1,13,7.19
(d) Pass ld onward - 100% of Target Torque, in circular pattern,
until nuts do not turn. 1,2,3,4,5.6,7.8,9.10,11,12,13.14.15.
16.17.18.19,20.21.22.23,24 - 1,2,3. etc.
superior tightening parity, and parallel closure, in less
time than using a single tool in a cross-pattern (see
Fig. F-S). This method has been successfully applied in
limited applications across the full range of gaskets and
joint configurations commonly found in refining and
petrochemical applications.
As a practical matter, rnultibolt tightening works best
on larger flanges [bolt diameters M20 (~ in.) or larger],
with hydraulic tools connected to a common presslIr€
source. One tool per every four to eight bolts in the
flange should be used in even-numbered groups of tools
equally distributed around the flange. For very critical
and/or time sensitive bolting jobs, 50'1~.or even 100%
tool coverage is recommended.
NOTE: A minirnurn llf tour bolts Ml' tightencJ ~irnull''''l·I'I"ly.
F-1.4.1 Group Numbering, Number the flwith
the bolt sequence groups corresponding to the number
of bolts in the flange and the number of tools employed
(for I/lis exnmp!«, nS:HUI/(' ns ~/1UT1'11 ill Fig. F-5, 7(lill1 10111'
lOll Is lll!ill,'? IISI'd 10 lig/III'II).
(a) Mark the hoi ts at the" 2, 3, 6,11111190', luck jI()$il ions
with the number one.
(ll) Moving clockwise, split the angles bel ween the
marked bolts and number the next group as number two.
(r) Split the remaining large angles as evenly as you
can and continue numbering tho groups until ,111bolts
57
II II " I I 1 (it ( ~P I d II \\' 'I II (0, II !
ASMEPCC-1-2013
Fig_ F-5 Alternative Assembly Pattern #4
(Multi bolt Legacy Pattern)
24-BOLT FLANGE
4 TOOLS AT ONCE
are numbered. All bolts are now numbered in groups
at 90 deg from each of their own number.
F-1.4.2 Tightening. lightening is accomplished in
three Passes.
(a) Pass #la and #lb: Tighten approximately one-
fourth of the bolts to 50% of the Target Torque. In this
example, lighten all of the is and then all of the 2& to
50% of the Target Torque. It is not necessary to do the
remaining bolts because the purpose of this initial Pass
is to seat the gasket and square up the flange. Plange
alignment and gap should be checked. The remaining
bolts will have loosened so time can be saved at this
point by snugging them again.
(b) Pass #lc: Tighten all of the bolts to 100% of the
Target Torque beginning with the 35 then 4s then 55 then
6s then returning to the Is then 25.
(e) Pass #2 (check Pass): Beginning from the end of
the previous Pass at 100% of the Target Torque, move
the tools clockwise one bolt at a time until the nuts no
longer turn. This is the check Pass that compensates for
elastic interaction and brings all bolts into parity.
This same procedure is used regardless of the number
of tools. 'TI1e only exception would be 100% coverage
where tightening is done in one Pass. A modified Legacy
pattern for Passes listed above is shown in Fig. F-10.
F-l.5 Alternative Assembly Pattern #5
The following describes a simultaneous multibolt
tightening pattern with a final circular pattern with two
or more tools (refer to Fig. F-6).
(n) Pass #la: Tighten bolts equally spaced 180 deg
apart fin opposite sides of the joint to 30% of Target
Torque, then rotate tools 90 deg and Simultaneously
tighten these two bolts to 30% of Target Torque.
