CHAPTER 20 809

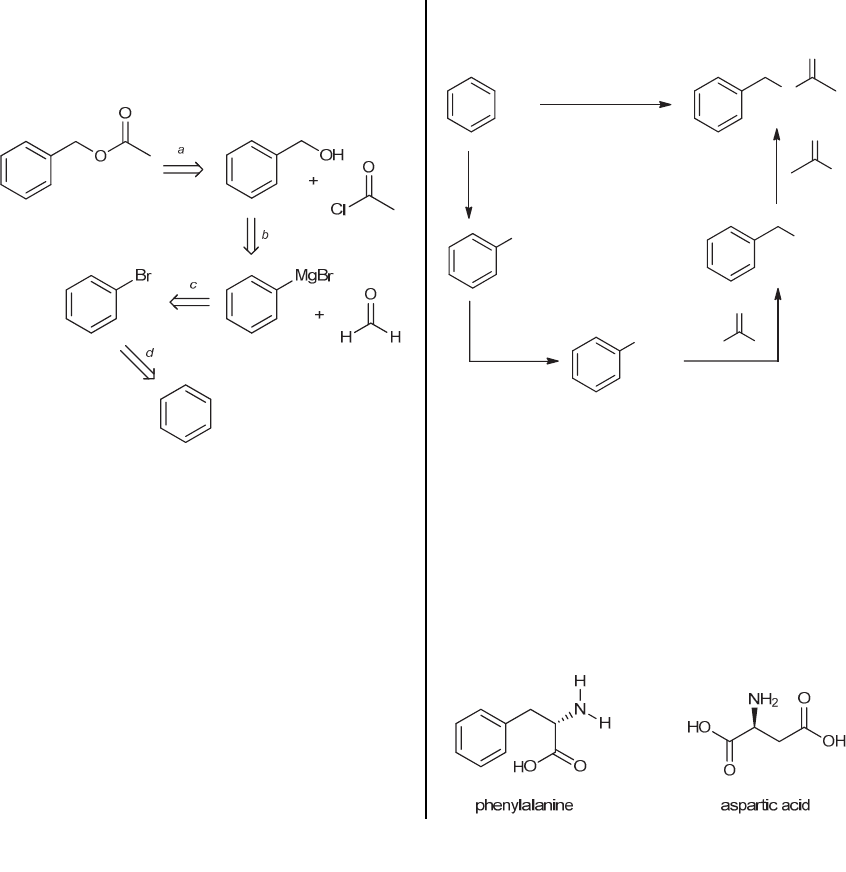

20.59. There are certainly many acceptable solutions to
this problem. One such solution derives from the
following retrosynthetic analysis. An explanation of
each of the steps (a-d) follows.



a. The ester can be made via acetylation of the
corresponding alcohol (benzyl alcohol).
b. The alcohol can be made from the reaction between
phenyl magnesium bromide and formaldehyde.
c. Phenyl magnesium bromide can be made from
bromobenzene, via insertion of magnesium.
d. Bromobenzene can be made from benzene via
bromination of the aromatic ring.

Now let’s draw the forward scheme. Benzene is
converted into bromobenzene upon treatment with Br2
and AlBr3 (via an electrophilic aromatic substitution
reaction). Bromobenzene is then converted to phenyl
magnesium bromide (a Grignard reagent), which is then
treated with formaldehyde, followed by water work-up,
to give benzyl alcohol. This alcohol then serves as a
nucleophile in a subsequent acyl substitution reaction
with acetyl chloride and pyridine to produce benzyl
acetate (a process called acetylation).
O
O
2) Mg
3) CH2O
5) CH3COCl, pyridine
1) Br2, AlBr3
Br2,
AlBr3
Br
Mg
MgBr H H
O
OH
Cl
O4) H2O
1)
2) H2O
pyridine
,


20.60. Hydrolysis of aspartame hydrolyzes both the
amide group and the ester group in the molecule.
Hydrolysis of the ester group produces methanol and
the carboxylic acid group in phenylalanine, shown
below. Hydrolysis of the amide group converts this
group to an amine (shown below on phenylalanine) and
a carboxylic acid (on the left side of aspartic acid
below). Note that the stereochemistry at both chiral
centers is retained because none of the bonds to the
chiral centers are broken in this transformation.
