CHAPTER 8 251

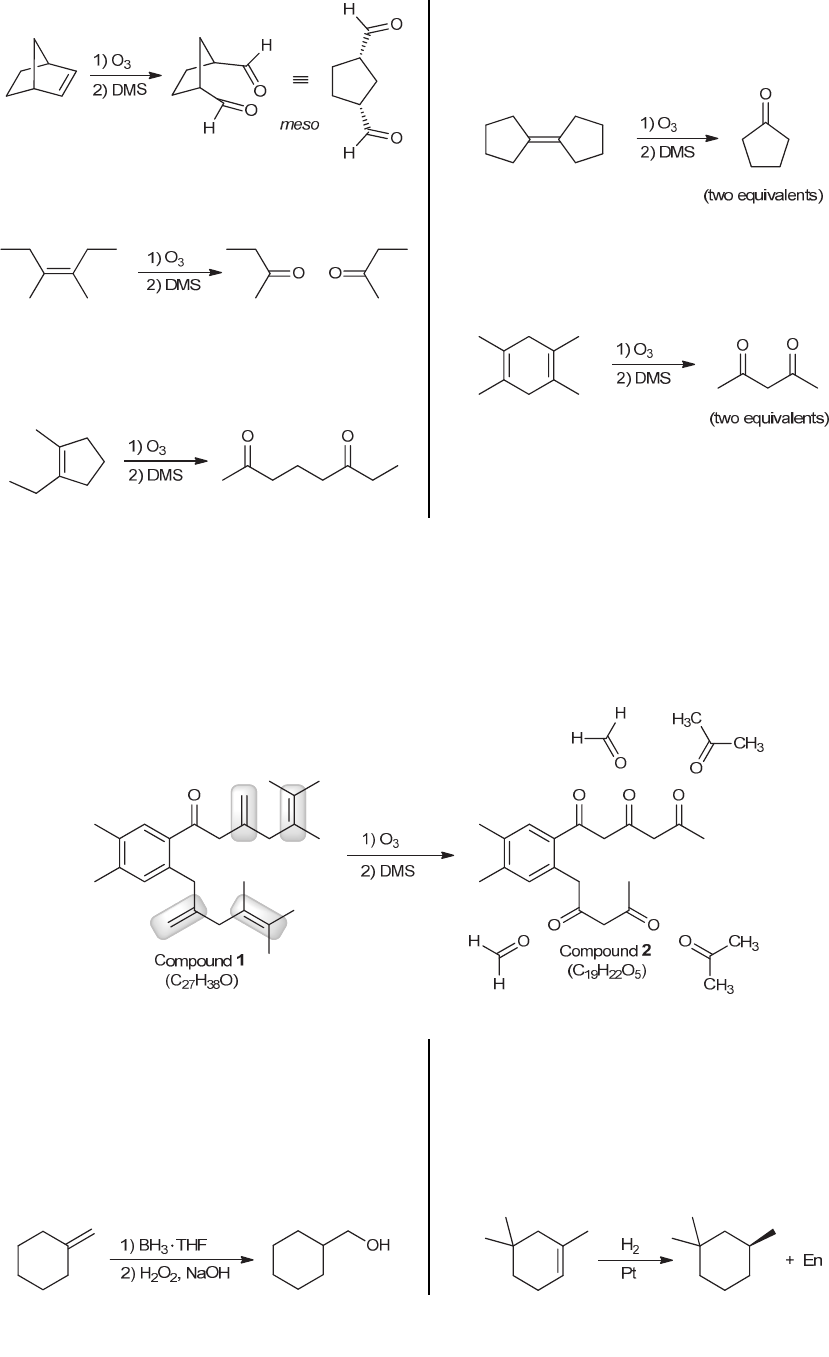

(f) The C=C bond is split apart and redrawn as two C=O
bonds, giving two equivalents of the same product:



8.29.
(a) We can draw the starting alkene by removing the two
oxygen atoms from the product, and connecting the sp2
hybridized carbon atoms as a C=C bond:



(b) In this case, the starting alkene has ten carbon atoms
while the product has only five carbon atoms. Therefore,
one equivalent of the starting alkene must produce two
equivalents of the product:


(c) In this case, the starting alkene has ten carbon atoms
while the product has only five carbon atoms. Therefore,
one equivalent of the starting alkene must produce two
equivalents of the product:






8.30. The starting material (C27H38O) has only one oxygen atom, while compound 2 (C19H22O5) has five oxygen
atoms. The insertion of four oxygen atoms (and the production of four small molecules) indicates that four C=C bonds
(highlighted below) undergo ozonolysis. The other three C=C bonds (in the ring) are part of the aromatic system,
which is unreactive toward ozonolysis, as mentioned in the problem statement. To draw the products of ozonolysis,
each C=C bond is split apart and redrawn as two C=O bonds. This gives compound 2, shown below, along with two
molecules of formaldehyde (CH2O) and two molecules of acetone ((CH3)2CO).



8.31.
(a) The reagents indicate a hydroboration-oxidation, so
the net result will be the addition of H and OH across the
alkene. For the regiochemical outcome, we expect an
anti-Markovnikov addition, so the OH group is installed
at the less-substituted position. The stereochemical
outcome (syn addition) is not relevant in this case,
because the product has no chiral centers:


(b) The reagents indicate a hydrogenation reaction, so
the net result will be the addition of H and H across the
alkene. The regiochemical outcome is not relevant
because the two groups added (H and H) are identical.
We expect the reaction to proceed via a syn addition, but
only one chiral center is formed. Therefore, both
enantiomers are obtained because syn addition can occur
from either face of the starting alkene:
