708 CHAPTER 19

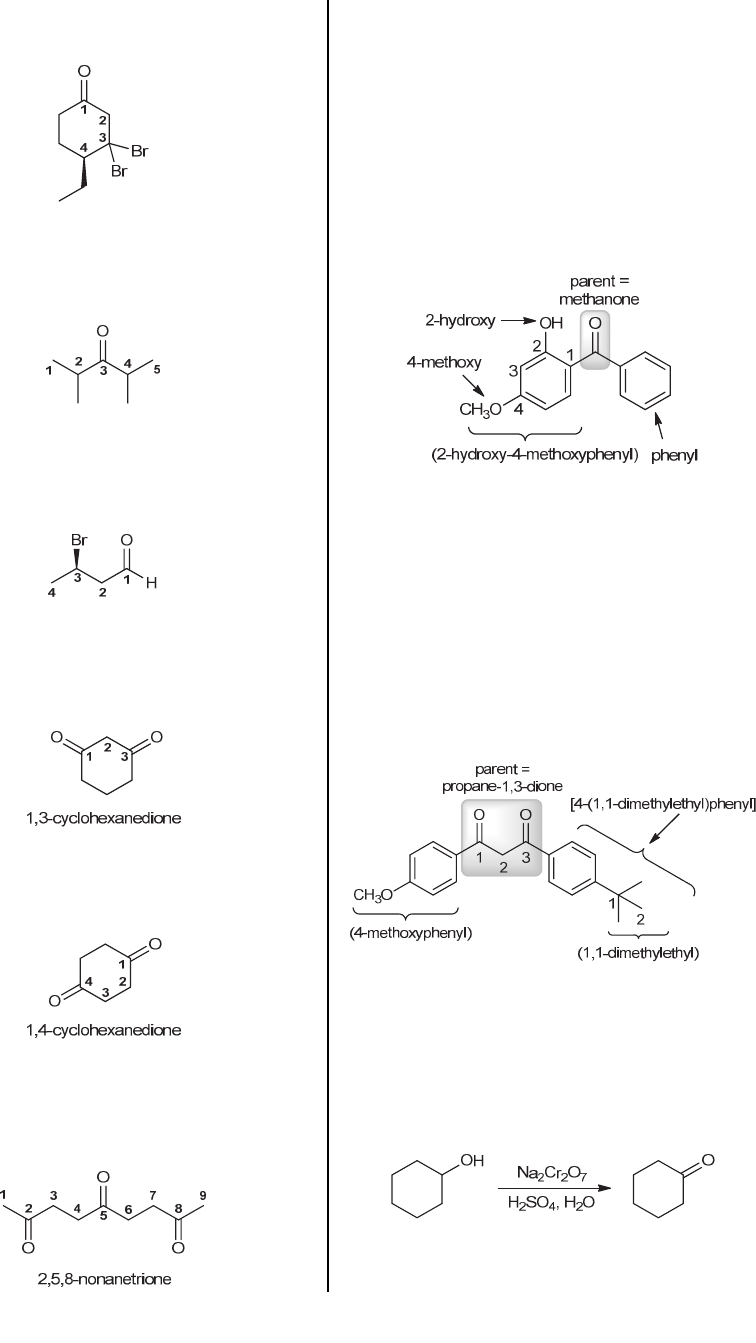

substituents: two bromine atoms (both at C3) and an
ethyl group (at C4). The chiral center at C4 has the S
configuration:


(b) The name indicates that the parent (3-pentanone) is a
chain of five carbon atoms, with the carbonyl group at
C3. There are two substituents (both methyl groups),
located at C2 and C4, as shown:



(c) The name indicates that the parent (butanal) is a chain
of four carbon atoms, with the carbonyl group at C1 (by
definition). There is only one substituent (Br), located at
C3, which exhibits the R configuration, as shown:



19.3.
(a) The parent is a six-membered ring with two carbonyl
groups (a dione). The locants indicate the relative
positions of the carbonyl groups (C1 and C3):



(b) The parent is a six-membered ring with two carbonyl
groups (a dione). The locants indicate the relative
positions of the carbonyl groups (C1 and C4):



(c) The parent is a chain of nine carbon atoms, for which
three of the carbon atoms are carbonyl groups (a trione).
The locants indicate the relative positions of the carbonyl
groups (C2, C5, and C8):


19.4.
(a) To draw a complex molecule when given a complex
name, it helps to start at the end and work backwards.
First, draw the parent compound (methanone = a one-
carbon ketone). Next, draw the substituents. There are
two substituents in this case: phenyl and (2-hydroxy-4-
methoxyphenyl). Draw the complex substituent by
starting with a phenyl group and then adding the hydroxy
and methoxy groups at the appropriate positions (recall
that the point of attachment to the parent chain is defined
as carbon #1 of the substituent). You may recognize that
another possible name for this compound is 2-hydroxy-
4-methoxybenzophenone.


(b) Following the same approach, we begin by drawing
the parent, propane-1,3-dione, a three-carbon ketone
with carbonyl groupss at positions 1 and 3. Next to the
carbonyl group, we place a phenyl substituent with a
methoxy group on carbon 4. Next to the other carbonyl
group, we draw a phenyl substituent with a 1,1-
dimethylethyl group (also known as a t-butyl group) at
carbon 4. Note: the systematic use of the parentheses
should clarify the position of the entire tert-butylphenyl
substituent on the parent diketone compound (e.g. “3”)
as well as the position of the tert-butyl “sub-substituent”
on the phenyl substituent (the “4” or para position).




19.5.
(a) Oxidation of a secondary alcohol (to give a ketone)
can be achieved with chromic acid (H2CrO4), which is
prepared by mixing sodium dichromate (Na2Cr2O7) and
aqueous sulfuric acid. Alternatively, PCC or DMP can
affect this transformation.
