CHAPTER 18 685

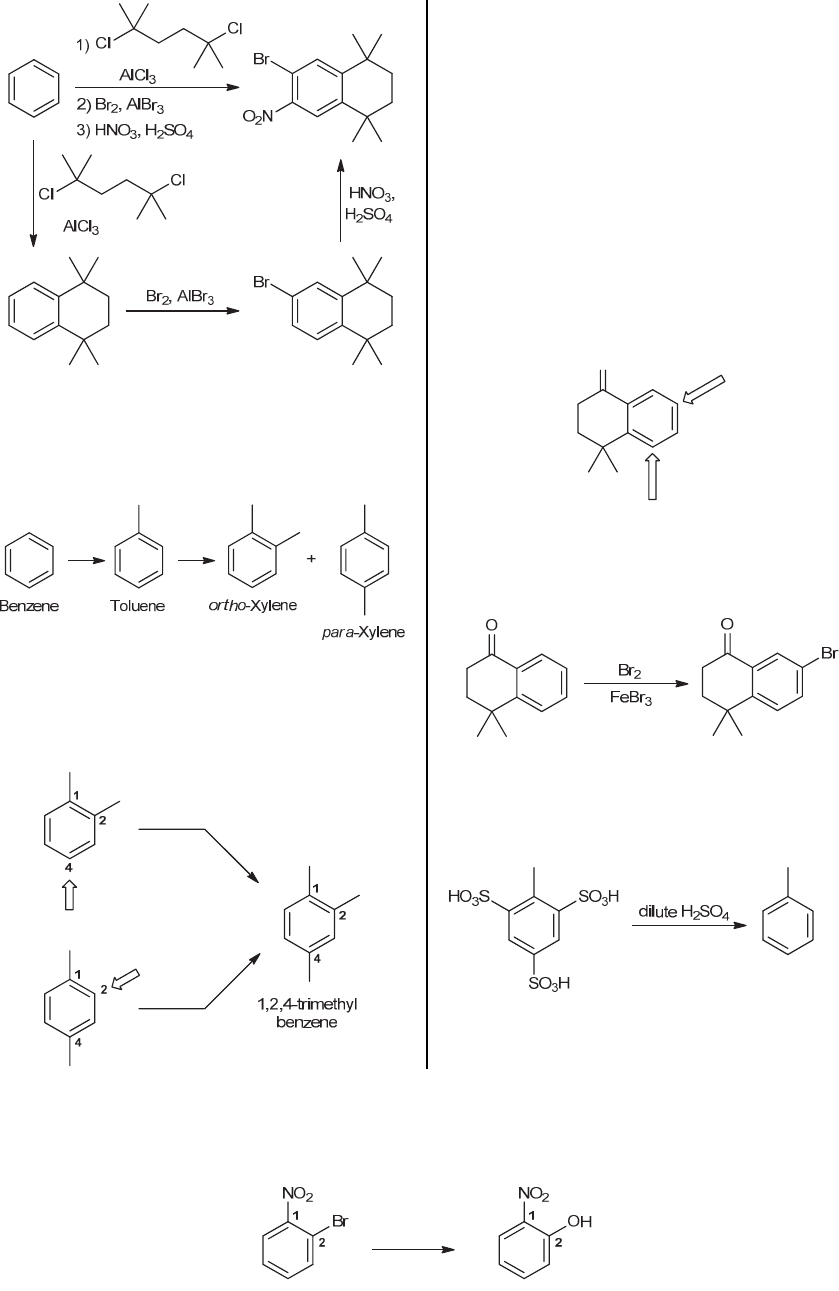

18.68. These reagents will install a methyl group, and
the problem statement indicates that three methyl groups
are installed. Installation of the first methyl group gives
toluene. Methylation of toluene gives a mixture of
ortho-xylene and para-xylene.



ortho-Xylene undergoes methylation at C4 because of
steric factors, while para-xylene undergoes methylation
at C2 (because all four positions are equivalent). Either
way, the product is the same: 1,2,4-trimethylbenzene



18.69. All three available positions are sterically
hindered.

18.70. The reagents indicate a bromination reaction, so
we must decide where the bromine atom will be
installed. The aromatic ring has two substituents: an
alkyl group and a carbonyl group. The former is a weak
activator and the latter is a moderate deactivator. The
directing effects are controlled by the more strongly
activating group. Therefore, in this case, the alkyl group
controls the directing effects. As an activator, the alkyl
group is an ortho-para director. However, one of the
ortho positions is already occupied (by the other
substituent). Therefore, there are only two locations
where bromination can occur (ortho or para to the alkyl
group):
O


Among these two locations, one of them is more
sterically hindered than the other. The reaction is
expected to occur at the location that is more sterically
accessible:




18.71. The reaction conditions (dilute H2SO4) will
remove each of the sulfonic acid groups, giving toluene
as the major product:



18.72.
(a) The reagent (hydroxide) is a strong nucleophile, and the three criteria for SNAr are met (there is a nitro group and a
leaving group that are ortho to each other), so we expect an SNAr mechanism. In an SNAr reaction, the nucleophile
(hydroxide) replaces the leaving group (bromide) and maintains the same location:
