Askeland1996_Chapter_MagneticBehaviourOfMaterials

Prévia do material em texto

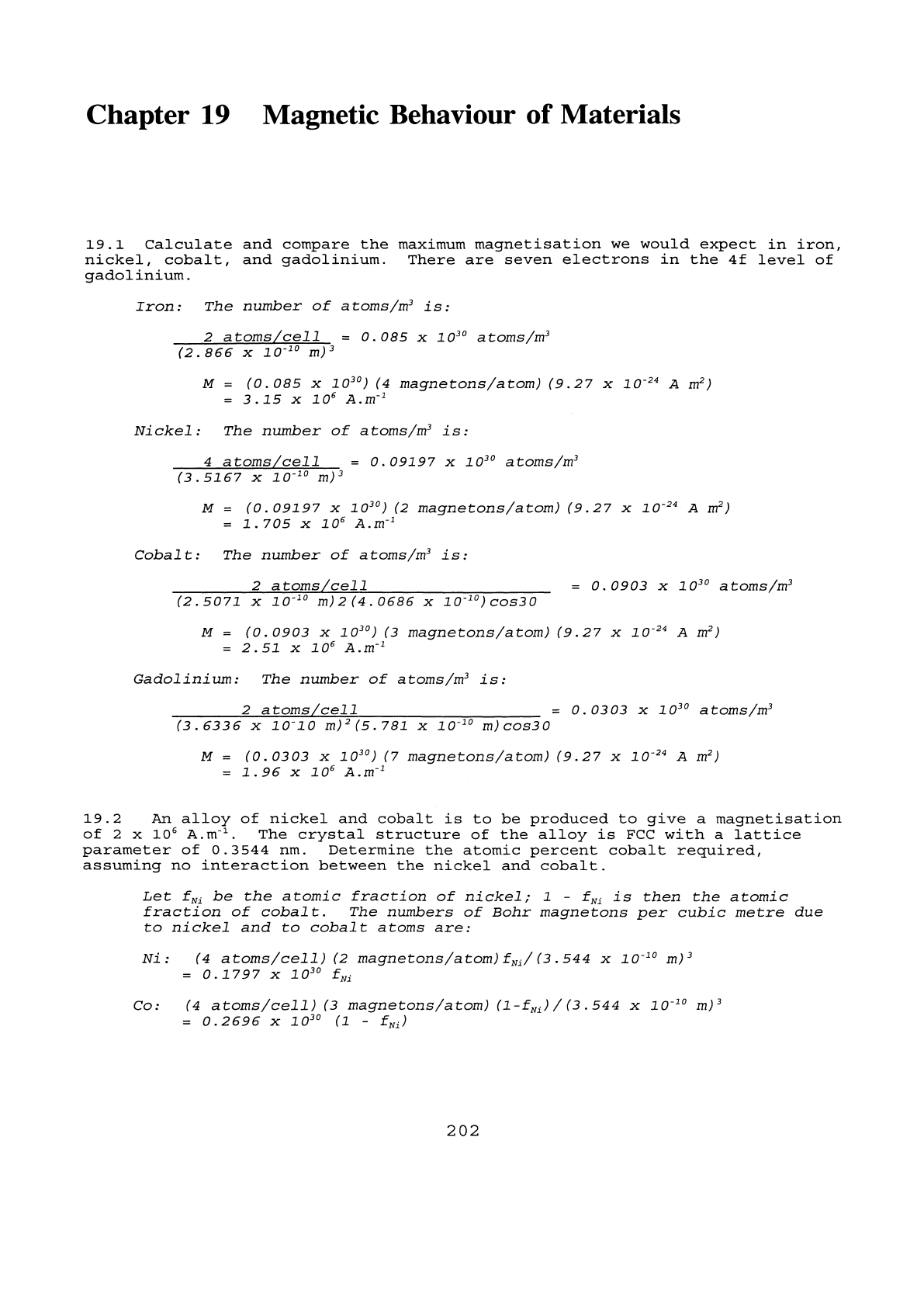

Chapter 19 Magnetic Behaviour of Materials
19.1 Calculate and compare the maximum magnetisation we would expect in iron,
nickel, cobalt, and gadolinium. There are seven electrons in the 4f level of
gadolinium.
Iron: The number of atoms/m3 is:
2 atoms/cell = 0.085 X 1030 atoms/m3
(2.866 x 10-10 m)3
M (0.085 x 1030 ) (4 magnetons/atom) (9.27 x 10-24 A m2)
3.15 x 106 A.m- 1
Nickel: The number of atoms/m3 is:
4 atoms/cell = 0.09197 x 1030 atoms/m3
(3.5167 x 10-10 m)3
M (0.09197 x 1030 ) (2 magnetons/atom) (9.27 x 10-24 A m2)
1.705 x 106 A.m-1
Cobalt: The number of atoms/m3 is:
2 atoms/cell 0.0903 X 1030 atoms/m3
(2.5071 x 10 10 m)2(4.0686 x 10-10)cos30
M (0.0903 x 1030 ) (3 magnetons/atom) (9.27 x 10-24 A m2)
2.51 x 10 6 A.m- 1
Gadolinium: The number of atoms/m3 is:
2 atoms/cell 0.0303 x 1030 atoms/m3
(3.6336 x 10-10 m)2(5.781 x 10-10 m)cos30
M (0.0303 x 1030 ) (7 magnetons/atom) (9.27 x 10-24 A m2)
1.96 x 106 A.m- 1
19.2 An alloy of nickel and cobalt is to be produced to give a magnetisation
of 2 x 106 A.m-l. The crystal structure of the alloy is FCC with a lattice
parameter of 0.3544 nm. Determine the atomic percent cobalt required,
assuming no interaction between the nickel and cobalt.
Let fNi be the atomic fraction of nickel,' 1 - fNi is then the atomic
fraction of cobalt. The numbers of Bohr magnetons per cubic metre due
to nickel and to cobalt atoms are:
Ni: (4 atoms/cell) (2 magnetons/atom)fNj(3.544 x 10-10 m)3
= 0.1797 x 1030 fNi
Co: (4 atoms/cell) (3 magnetons/atom) (1-fNi )/(3.544 x 10-10 m)3
= 0.2696 X 1030 (1 - f Ni )
202
D. R. Askeland, The Science and Engineering of Materials
© Springer Science+Business Media Dordrecht 1996
The magnetisation, M, is given by:
M [(0.1797 X 103°)fNi + (0.2696 x 1030 ) (l-fNi )) (9.27 x 10-24 )
M -833373 fNi + 2499192 2 x 106
fNi = 0.60 feo = 0.40
19.3 Estimate the magnetisation that might be produced in an alloy containing
nickel and 70 at% copper, assuming that no interaction occurs.
We can estimate the lattice parameter of the alloy from those of the
pure nickel and copper and their atomic fractions:
a o = ( 0 . 3) (0. 3 2 94 ) + ( 0 . 7) (0. 3 6 151 ) = O. 3 519 nm
If the copper does not provide magnetic moments that influence
magnetisation, then
M = (4 atoms/cell) (0.3 fraction Ni) (2 maqnetons/Ni atom) (9.27 x 10-24 )
(3.519 x 10-10 m)3
M 5. lOx 105 A. m- 1
19.4 An Fe-80% Ni alloy has a
an inductance of 0.35 tesla is
coil that is 20 mm in length.
coil to obtain this field?
maximum relative permeability of 300,000 when
obtained. The alloy is placed in a 20 turn
What current must flow through the conductor
Magnetic permeability ~
but,
Then,
B
H
I
~r~O
300000 X 4rr x 10- 7 = 0.377 T.m.A- 1 •
~H
(0.35T) / (0.377 T.m.A- 1 ) = 0.928 A.m.- 1
HI/n
(0.928 A.m- 1 ) (20 x 10-3 m) / (20 turns)
0.00093A
19.5 An Fe-49% Ni alloy has a maximum permeability of 64,000 when a magnetic
field of 10 A.m- 1 is applied. What inductance is obtained and what current is
needed to obtain this inductance in a 200 turn, 30 mm long coil?
~
B
I
~rf.1.0 = 64,000 X 4rr x 10- 7 = 0.0804 T.m.A- 1
f.1.H = (0.0804 T.m.K 1 ) (10 A.m- 1 ) = 0.804 T
Hi/n = (10 A.m-1 ) (30 x 10-3m) / (200 turns) 1.5 mA
19.6 The following data describe the effect of the magnetic field on the
inductance in a silicon steel. Calculate (a) the initial permeability and (b)
the maximum permeability for the material. 1.4
H (A.m- 1 ) B (T)
0 0
20 0.08
40 0.3
60 0.65
80 0.85
100 0.95
150 1.10
250 1.25
203
1.2
E I
III f 0.8
_ 0.6
~
] 0.4
0.2
50 100 150 200 250
M.gnetic fodd. H (Aim)
The data is plotted; from the graph, the initial and maximum
permeability are calculated from the slopes of the plots:
(a) initial permeability 0.003 T.m.K 1
(b) maximum permeability 0.011 T.m.K 1
19.7 A magnetic material has a coercive field of 167 A.m- 1 , a saturation
magnetixation of 0.616 tesla, and a residual inductance of '0.3 tesla. Sketch
the hysteresis loop for the material.
0.616 T
0.6 B(T)
Br 0.3 T
-600 400 600
H(Alm)
-0.6
19.8 A magnetic material has a coercive field of 10.74 A.m- 1 , a saturation
magnetization of 2.158 tesla, and a remanence induction of 1.183 tesla.
Sketch the hysteresis loop for the material.
Msat = 2.158 T
B(T)
Br 1.183 T
-20 -10 10 20
H(Alm)
-2
19.9 Using Figure 19.16, determine the following properties of the magnetic
material.
a. remanence d. initial permeability
b. saturation magnetisation e. maximum permeability
c. coercive field f. power (maximum BH product)
(a) remanence = 1.3 T
(b) saturation magnetisation = 1.4 T
(c) coercive field = 63500 A.m-1
(d) initial permeability 0.7 T / 100000 A.m-1 = 7 x 10- 6 T.m.Kl
(e) maximum permeability 1.4 T / 75000 A.m-1 = 1.9 X 10- 5 T.m.A- 1
204
(f) we can try several BH products in the 4th quadrant:
1.2 T x 35800
1.0 T x 54600
0.8 T x 57600
42960 T.A.m-l
54600 T.A.m-l
46080 T.A.m-l
The maximum BH product, or power, is about 54600 T.A.m- 1 •
19.10 Using Figure 19.17, determine the following properties of the magnetic
material.
a. remanence d. initial permeability
b. saturation magnetisation e. maximum permeability
c. coercive field f. power (maximum BH product)
(a) remanence = 0.55 T
(b) saturation magnetisation = 0.58 T
(c) coercive field = 44,000 A.m-1
(d) initial permeability 0.2 T / (50000 A.m-1 )
4 x 10-6 T.m.A- 1
(e) maximum permeability 0.5 T / (35000 A.m-1 )
1.4 x 10-5 T.m.A- 1
(f) we can try several BH products in the 4th quadrant:
0.45 T x 23000 A.m- 1 10350 T.A.m-l
0.40 T x 32800 A.m-1 13120 T.A.m-l
0.35 T x 36100 A.m-1 12635 T.A.m- 1
0.30 T x 38975 A.m-1 11692 T.A.m- 1
The maximum BH product, or power, is about 13120 T.A.m-l.
19.11 Estimate the power of the CosCe material shown in Figure 19.14.
H B BH
0 A.m-1 0.75 T 0 T.A.m- 1
200000 A.m- 1 0.65 T 130000 T.A.m- 1
225000 A.m-1 0.45 T 101250 T.A.m- 1
250000 A.m-1 0 T 0 T.A.m- 1
19.12 Why are eddy current losses important design factors in ferromagnetic
materials but less important in ferrimagnetic materials?
The ferrimagnetic materials are ceramics, which have a very low elec­
trical conductivity; consequently eddy currents are not introduced into
the magnetic material. The ferromagnetic materials are metals or
alloys; they are conductors, permitting eddy currents to be introduced
and thus causing eddy current losses.
19.13 What advantage does the Fe-3% Si material have compared to Supermalloy
for use in electric motors?
The Fe-3% Si has a larger saturation inductance than Supermalloy,
allowing more work to be done. However Fe-3% Si does require larger
fields, since the coercive field for Fe-3% Si is large, and the per-
205
meability of Fe-3% Si is small compared with that of Supermalloy.
19.14 The coercive field for pure iron is related to the grain size of the
iron by the relationship He = 1.83 + 4.14/VA, where A is the area of the grain
in two dimensions (mm2 ) and He is in A.m- I • If only the grain size influences
the 99.95% iron given in Table 19.3, estimate the size of the grains in the
material. What happens when the iron is annealed to increase the grain size?
He = 71.60 A.m-1
Thus, from the equation,
71.60 1.83 + 4.14 IVA
4.14 / 69.77 = 0.0593 or A = 0.0035 mm2
When the iron is annealed, the grain size increases, A increases, and
the coercive field He decreases.
19.15 Suppose we replace 10% of the Fe 2 + ions in magnetite with Cu2 + ions.
Determine the total magnetic moment per cubic metre.
From Example 19.6, the lattice parameter is 8.37 x 10- 10 m.
Vuniteell = (8.37 X 10-10 m)3 = 5.86 x 10-28 m3
In the octahedral sites, the fraction of copper atoms is 0.1, while the
fraction of Fe2 + ions is 0.9. The magnetic moment is then:
moment = (8 subcells) [0.1 Cu(l maqneton) + 0.9 Fe(4 maqneton)) (9.27x10-24Am- 1 )
5.86 x 10-28 m3
moment 4.68 X 105 A.m2 per m3
19.16 Suppose thatthe total magnetic moment per cubic metre in a spinel
structure in which Ni 2+ ions have replaced a portion of the Fe 2 + ions is 4.6 X
105 A.m- I • Calculate the fraction of the Fe2 + ions that have been replaced and
the wt% Ni present in the spinel.
From Example 19.6, the volume of the unit cell is 5.86 x 10-28 m3.
let fm be the fraction of the octahedral sites occupied by nickel,
(l-fNi ) is the fraction of the sites occupied by iron. Then:
moment = 4. 6x10 5
(8 subcells) [(l-fNi ) (4 maqnetons) + (fNi ) (2 maqnetons)) (9.27 x 10-24 )
5.86 x 10-28 m3
3.6348 = 4 - 4fm + 2fNi
:. fNi = 0.183
Thus the number of each type of atom or ion in the unit cell is:
oxygen: (4 atoms/subcell) (8 subcells) =
Fe3+ (2 ions/subcell) (8 subcells) = 16
Fe2 + (0.817) (1 ion/subcell) (8 subcells)
Ni 2 + (0.183) (1 ion/subcell) (8 subcells)
32
6.54
1.46
If we
then
The total number of ions in the unit cell is 56; the atomic fraction of
each ion is:
206
foxygen = 32/56 = 0.5714
f Fe2+ = 6. 54/56 = O. 1168
f Fe3 + = 16/56 = 0.2857
f Ni2 + = 1.48/56 = 0.0261
The weight percent nickel is (using the molecular weights of oxygen,
iron and nickel):
%Ni (0.0261) (58.7l)
(0.5714) (16) + (0.2857) (55.847) + (0.1168) (55.847) + (0.0261) (58.71)
= 4.62 wt%
207
