268 CHAPTER 8

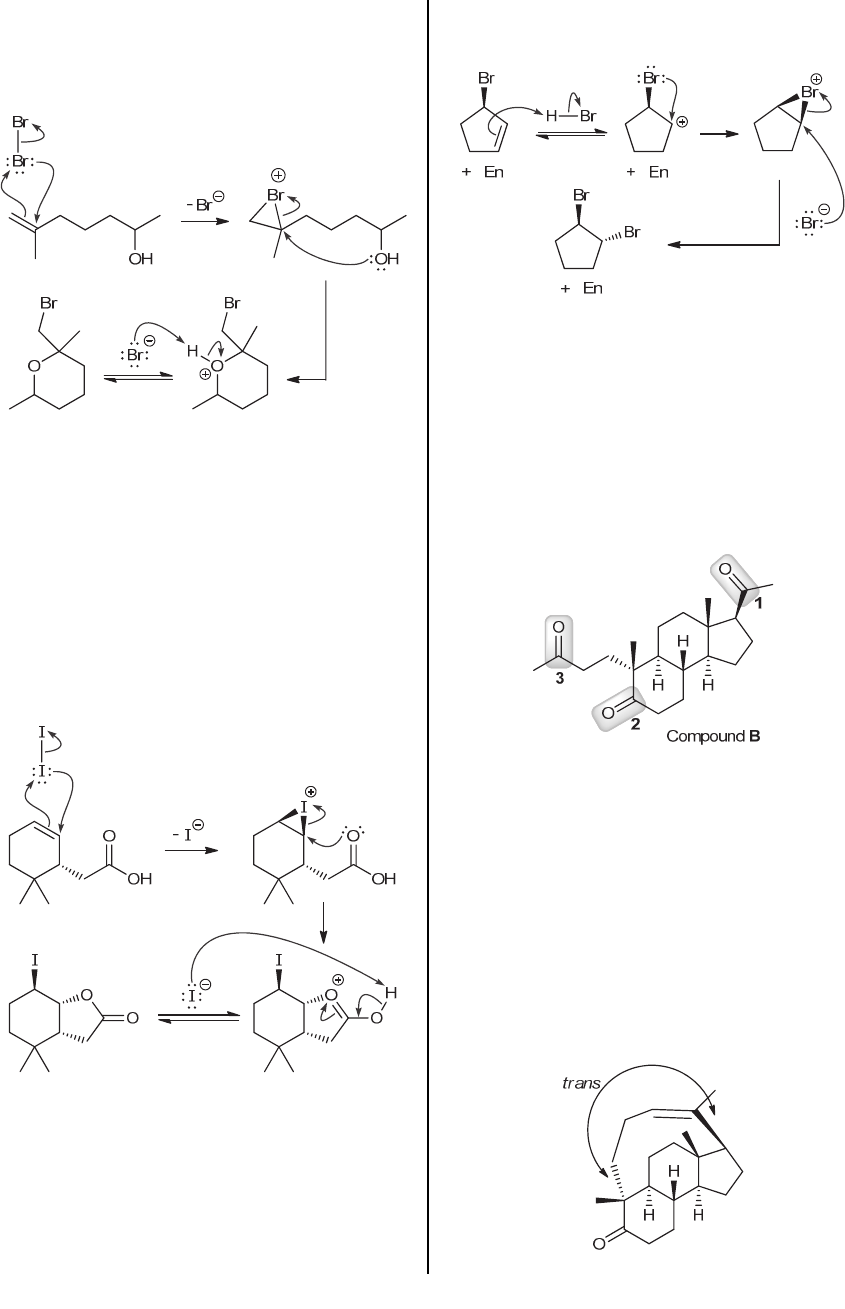

the OH group that is tethered to the bromonium group.
The resulting intramolecular nucleophilic attack (two
curved arrows) generates an oxonium ion, which then
loses a proton (two curved arrows) to give the product.







8.82. When the alkene is treated with molecular iodine
(I2), the  bond functions as a nucleophilic center and
attacks I2 (three curved arrows), resulting in an
intermediate iodonium ion. The iodonium ion is then
subject to attack by a nucleophile, such as the
nucleophilic center that is tethered to the iodonium
group. The resulting intramolecular nucleophilic attack
(two curved arrows) generates an intermediate which
then loses a proton (two curved arrows) to give the
product.






8.83. The cis-dibromide is not obtained, suggesting that
the reaction proceeds via an anti addition process. This
can be explained if we argue that the carbocation
(formed upon protonation of the  bond) is converted
into a bromonium ion, as shown here. The incoming
nucleophile (bromide) would have to attack from the
backside of the bromonium bridge, giving a trans
dibromide:




8.84. Inspection of the molecular formula reveals that
compound A contains the same number of carbon atoms
as the product of ozonolysis, compound B (21 carbon
atoms). Thus, we can predict the structure of compound
A by choosing any two carbonyl (C=O) groups in the
product, removing the oxygen atoms, and connecting the
sp2 hybridized carbon atoms with a double bond. There
are three carbonyl groups, so there are three possible
alkenes that should be considered.



Attachment of carbons 1 and 2 would result in a complex
ring system with far too much strain to possibly exist.
Carbons 1 and 2 are remotely located on opposite ends of
the molecule, pointing in opposite directions. Indeed, we
will later learn that this polycyclic skeletal structure is
very rigid, and the hypothetical connection of carbons 1
and 2 is impossible.

Similarly, if carbons 1 and 3 were attached it would also
result in significant strain (below). Though these
carbons are closer than 1 and 2, and they are linked by a
slightly more flexible chain, the trans relationship of the
two connecting groups creates too much angle strain:
