570 CHAPTER 16


In summary, we expect the following possible products:

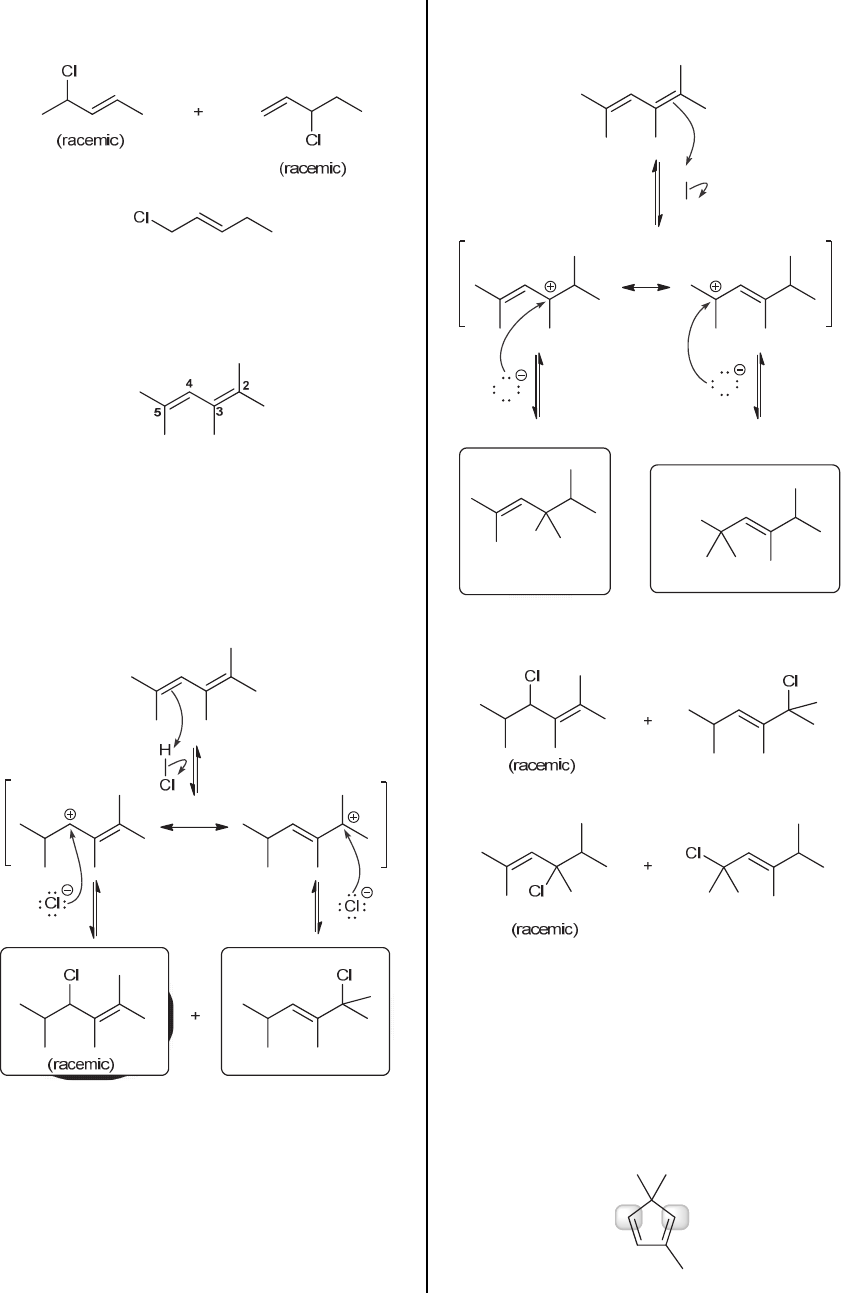

(b) We first identify the locations where protonation can
occur. There are four unique positions where
protonation can occur, labeled C2, C3, C4, and C5:



Among these four positions, only protonation at C2 or at
C5 will generate a resonance-stabilized carbocation. So,
we must explore protonation at each of these positions.
Let’s begin with protonation at C5, which leads to a
resonance–stabilized intermediate. When we draw both
resonance structures, we can see that two positions are
electrophilic. Nucleophilic attack can occur at either of
these locations, giving rise to two products:




Notice that one of the products possesses a chiral center
and is therefore produced as a racemic mixture (because
the chloride ion can attack either face of the allylic
carbocation with equal likelihood).
Now let’s consider protonation at C2. Once again,
protonation leads to a resonance–stabilized intermediate.
When we draw both resonance structures, we can see
that two positions are electrophilic. Nucleophilic attack
can occur at either of these locations, giving two possible
products, as shown:

H
Cl
Cl
Cl
(racemic)
+
Cl Cl


In summary, we expect the following possible products:







(c) We first identify the locations where protonation can
occur. There are four unique positions where
protonation can occur, although a resonance-stabilized
intermediate can only be obtained upon protonation of
one of the ends of the conjugated  system, highlighted
below:
