550 CHAPTER 15

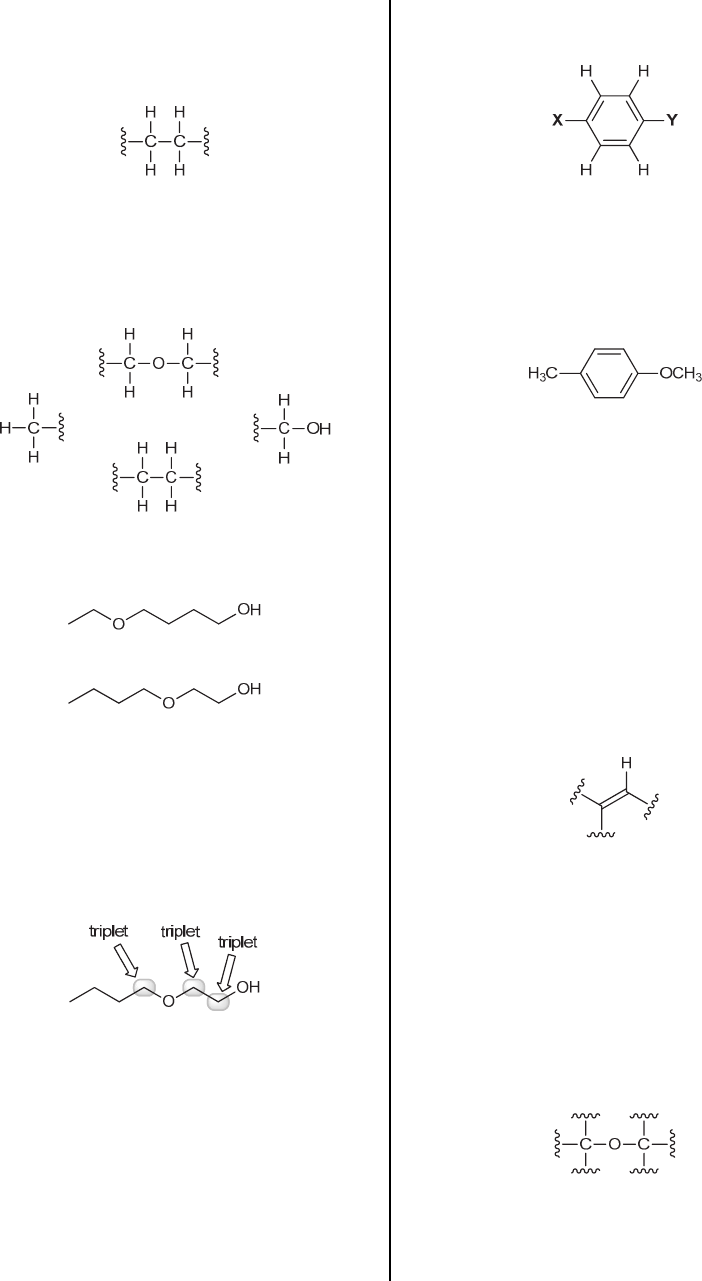

The singlet at 2.4 ppm has an integration of 1, which can
be attributed to the OH group. Each of the multiplets
near 1.5 ppm has an integration of 2H, indicating
methylene groups that have complex splitting:



The triplet at 1.0 ppm has an integration of 3H,
indicating a methyl group that is connected to a
neighboring CH2 group.

In summary, we have the following fragments:



There are only two ways to connect these four
fragments:



The first structure contains an ethyl group, which should
produce a quartet with an integration of 2 (for the CH2
portion of the ethyl group). If we inspect the three
signals between 3.5 and 4 ppm, it is difficult to argue
that any of these signals is a quartet. While it is difficult
to be certain, because two of these signals overlap with
each other, it looks more like each of these signals is a
triplet, which would be consistent with the second
structure:




15.64. The molecular formula (C8H10O) indicates four
degrees of unsaturation (see Section 14.16), which is
highly suggestive of an aromatic ring. This is confirmed
by the presence of signals just above 3000 cm-1 in the IR
spectrum, and signals at approximately 1600 cm-1. In the
1H NMR spectrum, the signals near 7 ppm are likely a
result of aromatic protons, which also confirms the
presence of an aromatic ring. Notice that the combined
integration of these two signals (near 7 ppm) is 4H.
This, together with the distinctive splitting pattern (a pair
of doublets), suggests a 1,4-disubstituted aromatic ring:



The spectrum also exhibits two singlets, each of which
has an integration of 3H, indicating methyl groups.
Notice that both signals are shifted downfield (relative
the benchmark value for a methyl group of 0.9 ppm).
One of them is shifted much more than other, indicating
that it is likely next to an oxygen atom. This gives the
following structure:


This structure is consistent with the 13C NMR spectrum.
Specifically, there are four signals for the aromatic ring,
one of which is shifted downfield because it is next to an
oxygen atom. And the other two signals are for the
methyl groups, one of which appears above 50 ppm
because the carbon atom giving rise to this signal is next
to an oxygen atom.



15.65. The molecular formula (C5H10O) indicates one
degree of unsaturation (see Section 14.16), which means
that the compound must either have a double bond or a
ring. The IR spectrum has a signal at approximately
3100 cm-1, indicating the presence of a Csp2–H bond:



This is consistent with the weak signal at 1600 cm-1,
indicating the presence of a C=C double bond (which
accounts for the one degree of unsaturation).
The 13C NMR spectrum has two signals between 100 and
150 ppm, confirming the presence of a C=C double
bond. In addition, there are three other signals, two of
which appear between 50 and 100 ppm. These latter two
signals are characteristic of carbon atoms connected to
an oxygen atom. Since there is only one oxygen atom in
the structure (C5H10O), these two carbon atoms must be
connected to it:



In the 1H NMR spectrum, we see the characteristic
pattern of an ethyl group (a triplet with an integration of
3 and a quartet with an integration of 2):
