560 CHAPTER 15

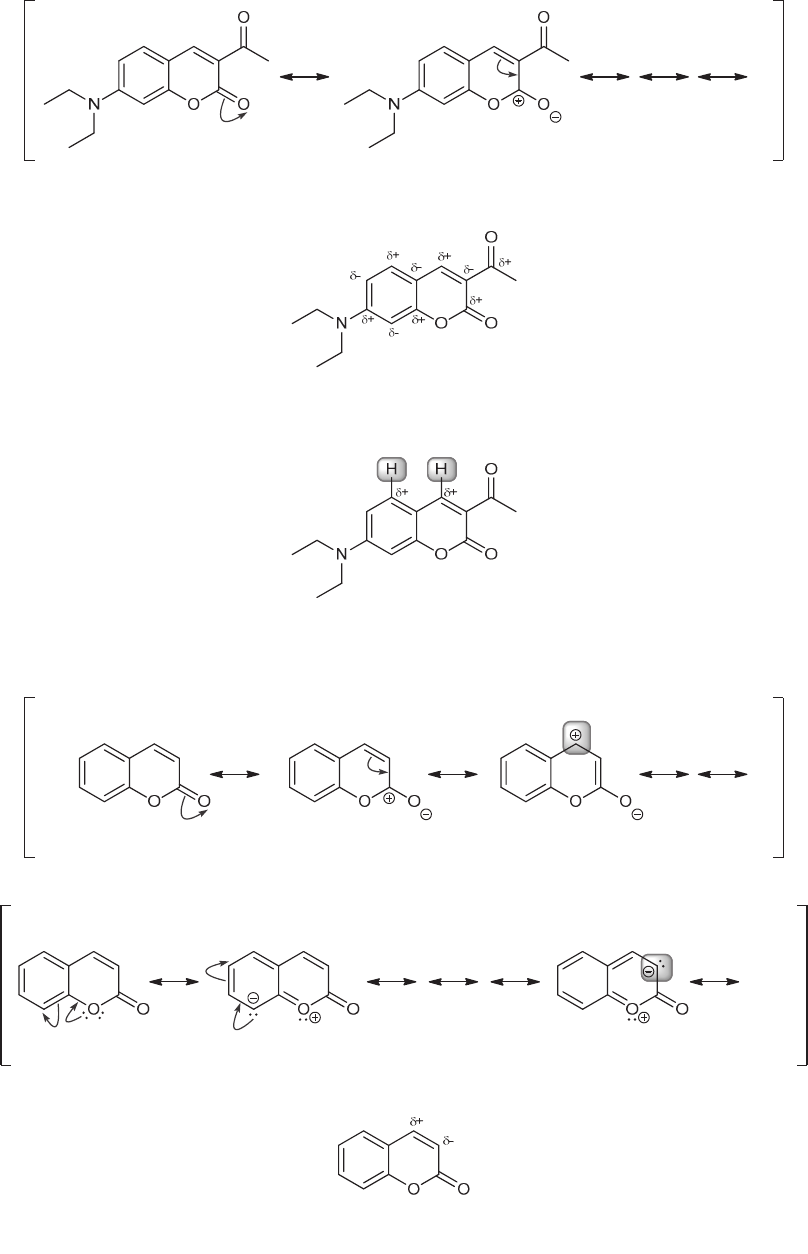

A similar effect is expected from the ester group:



In summary, if we take into account all resonance effects (described above), the following picture emerges:




Notice that only two protons are directly attached to electron-deficient centers:



These are the two protons that are expected to produce the two signals farthest downfield in the proton NMR spectrum.

(b) In compound 1, the C4 position is electron-deficient, as seen in the third resonance structure below:



and the C3 position is electron-rich, as highlighted below:



As a result, the C3-C4  bond is highly polarized and is expected to produce a strong signal.
