CHAPTER 4 115

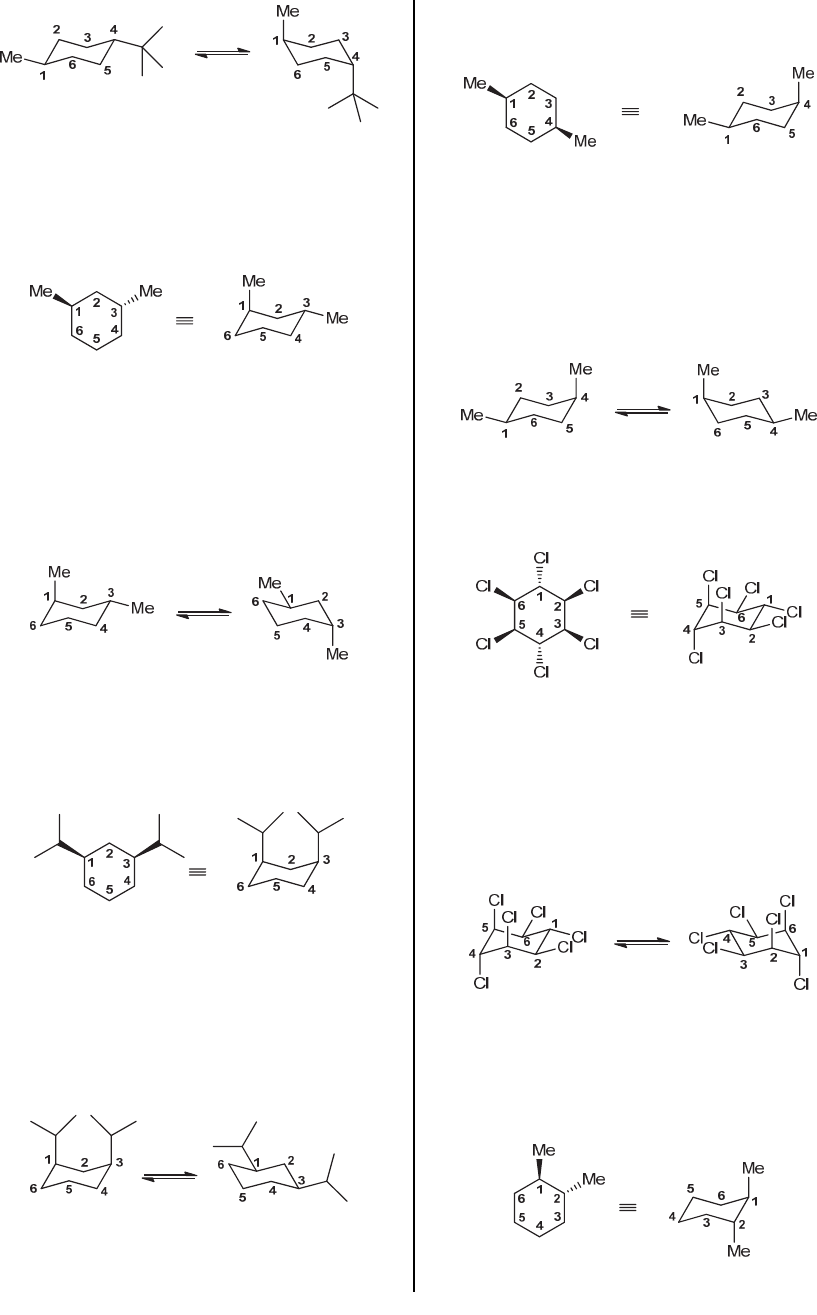

(f) Begin by assigning a numbering system, and then
determine the location and three-dimensional orientation
of each substituent. In this case, there is a methyl group
at C-1, which is up, and another methyl group at C-3,
which is down:



When assigning the numbers to the chair drawing, the
first number can be placed anywhere on the ring (as long
as the numbers go clockwise), as explained in the
solution to part (a) of this problem.
Finally, we draw the second chair conformation,
once again using a numbering system. Notice that a ring
flip causes all equatorial groups to become axial groups,
and vice versa.



(g) Begin by assigning a numbering system, and then
determine the location and three-dimensional orientation
of each substituent. In this case, there is an isopropyl
group at C-1, which is up, and another isopropyl group at
C-3, which is also up:



When assigning the numbers to the chair drawing, the
first number can be placed anywhere on the ring (as long
as the numbers go clockwise), as explained in the
solution to part (a) of this problem.
Finally, we draw the second chair conformation,
once again using a numbering system. Notice that a ring
flip causes all equatorial groups to become axial groups,
and vice versa.



(h) Begin by assigning a numbering system, and then
determine the location and three-dimensional orientation
of each substituent. In this case, there is a methyl group
at C-1, which is up, and another methyl group at C-4,
which is also up:



When assigning the numbers to the chair drawing, the
first number can be placed anywhere on the ring (as long
as the numbers go clockwise), as explained in the
solution to part (a) of this problem.
Finally, we draw the second chair conformation,
once again using a numbering system. Notice that a ring
flip causes all equatorial groups to become axial groups,
and vice versa.



4.29. Begin by assigning a numbering system, and then
determine the location and three-dimensional orientation
of each substituent:



When assigning the numbers to the chair drawing, the
first number can be placed anywhere on the ring (as long
as the numbers go clockwise), as explained in the
solution to part (a) of the previous problem.
Finally, we draw the second chair conformation,
once again using a numbering system. Notice that a ring
flip causes all equatorial groups to become axial groups,
and vice versa.



4.30.
(a) Begin by assigning a numbering system, and then
determine the location and three-dimensional orientation
of each substituent. In this case, there is a methyl group
at C-1, which is up, and a methyl group at C-2, which is
down:
