374 CHAPTER 11

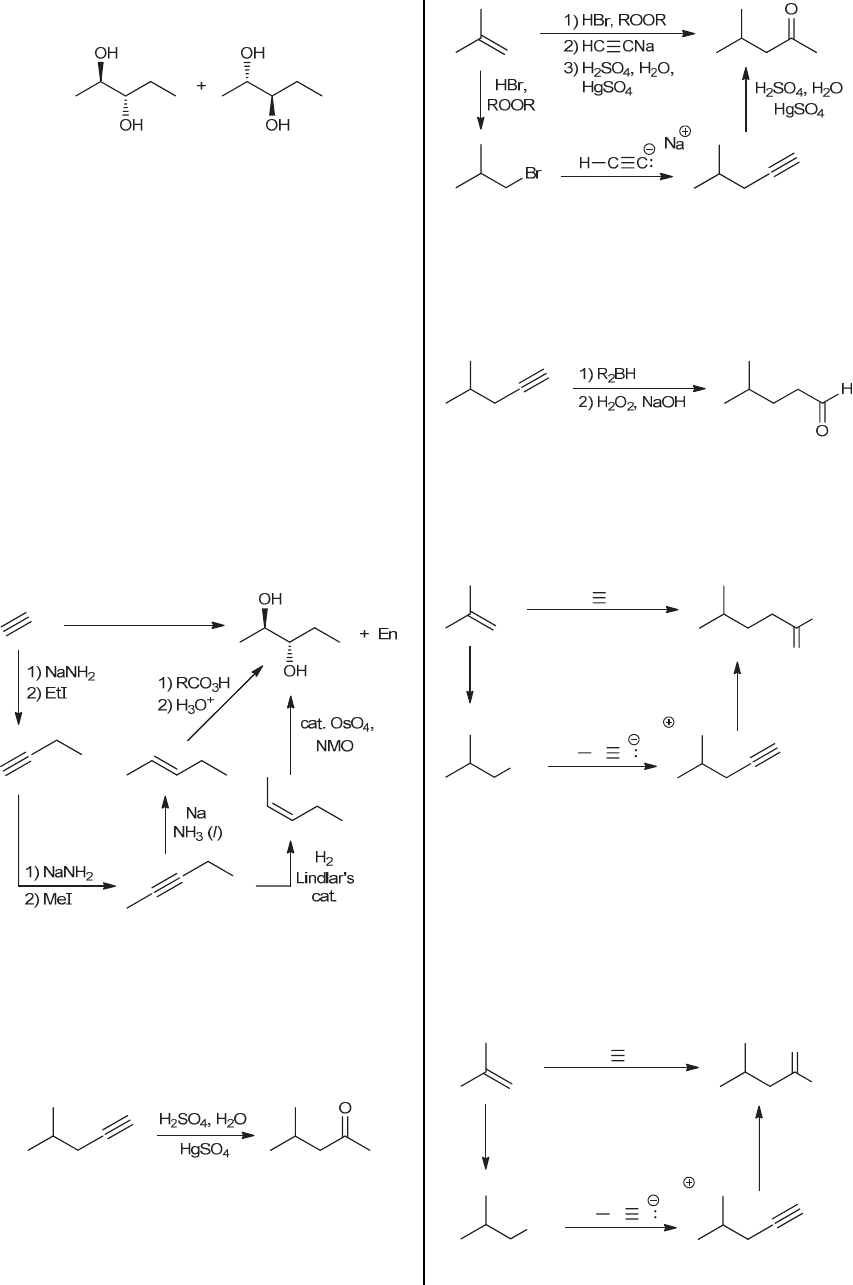

11.20. We begin by drawing the desired products:



These compounds have five carbon atoms, but our
starting materials can contain no more than two carbon
atoms. So our synthesis must involve the formation of
carbon-carbon bonds. This can be accomplished via the
alkylation of acetylene (a compound with two carbon
atoms). The location of the functional groups (C2 and
C3) indicates that we need two alkylation processes (one
to install a methyl group and the other to install an ethyl
group). This places the triple bond between C2 and C3,
which enables the installation of the functional groups at
those locations. Conversion of the internal alkyne into
the desired product requires the addition of H and H to
give an alkene, followed by the addition of OH and OH.
In order to achieve the correct stereochemical outcome,
both of these addition processes must be performed in an
anti fashion, or both must be performed in a syn fashion.
That is, we can perform an anti addition of H and H,
followed by an anti addition of OH and OH, or we can
perform a syn addition of H and H, followed by a syn
addition of OH and OH, as shown:



11.21.
(a) The starting material has four carbon atoms, and the
product has six carbon atoms. So our synthesis must
involve the installation of two carbon atoms. Also, the
location of the functional group has been changed. The
product is a methyl ketone, which can be made from a
terminal alkyne (via acid catalyzed hydration):



This alkyne can be made from the starting alkene via an
anti-Markovnikov addition of HBr, followed by
treatment with sodium acetylide, as shown here:



(b) The starting material has four carbon atoms, and the
product has six carbon atoms. So our synthesis must
involve the installation of two carbon atoms. Also, the
location of the functional group has been changed. The
product is an aldehyde, which can be made from a
terminal alkyne (via hydroboration-oxidation):



As seen in the solution to part (a), this alkyne can be
made from the starting alkene via an anti-Markovnikov
addition of HBr, followed by treatment with sodium
acetylide, as shown here:

ROOR
HBr,
1) HBr, ROOR
2) HC CNa
C CH
Na
Br
1) R2BH
2) H2O2, NaOH
3) R2BH
4) H2O2, NaOH
H
O


(c) The starting material has four carbon atoms, and the
product has five carbon atoms. We have not learned a
direct way of installing only one carbon atom. That is,
two carbon atoms are installed (not one) if we convert
the starting alkene into an alkyl halide (via an anti-
Markovnikov addition), and then treat the alkyl halide
with sodium acetylide. However, after installing two
carbon atoms, we can remove one of them with
ozonolysis, giving the product:

ROOR
HBr,
1) HBr, ROOR
2) HC CNa
C CH
Na
OH
Br
1) O3
2) H2O
3) O3
4) H2O
O
